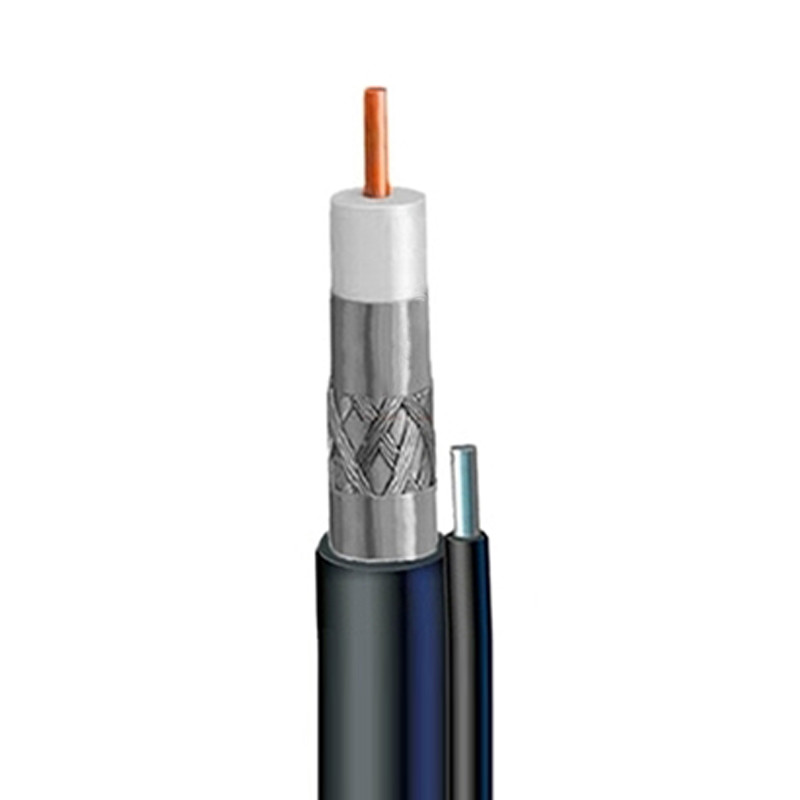

TV Coaxial Cable RG-11/U Tri-Shield 77% PVC Jacket With Messenger

Basic Information

Place of Origin:	China
Brand Name:	Zion communication OR OEM
Certification:	UL, ETL, CE, RoHS
Model Number:	RG11 Tri

Minimum Order Quantity:	30 KM
Packaging Details:	500M, 1000M, Wooden Drum, Pallet
Delivery Time:	Normally 15 working days
Payment Terms:	T/T, L/C
Supply Ability:	1000KM / Month

Get Best Price Contact Now

Detail Information

Inner Conductor:	0.064"/1.63mm/14AWG CCS	Dielectric:	0.280"/7.11mm Foamed PE
Shield 1:	0.287"/7.29mm Bonded Aluminum PET	Shield 2:	Aluminum Braid Wire 77% Coverage
Shield 3:	Aluminum Laminated Tape(Non-bonded)	Jacket:	0.400"±0.006"/10.16±0.15mm PVC
Jacket Thickness:	0.039"/0.99mm	Messenger:	0.072"/1.83mm
Minimum Breaking Strength:	365lbs./166kg
Highlight:	TV Coaxial Cable OEM , PVC Jacket TV Coaxial Cable

Product Description

RG11 Tri 77% PVC Messenger 75 Ohm CATV coaxial Cable NO.7100229



Construction Parameters:
Inner Conductor	0.064"/1.63mm/14AWG CCS
Dielectric	0.280"/7.11mm Foamed PE
Shield 1	0.287"/7.29mm Bonded Aluminum PET
Shield 2	Aluminum braid wire 77% coverage
Shield 3	Aluminum Laminated Tape(Non-bonded)
Jacket	0.400"±0.006"/10.16±0.15mm PVC
Jacket Thickness	0.039"/0.99mm
Messenger	0.072"/1.83mm
Minimum Breaking Strength	365lbs./166kg
Application	For Use in Longer CATV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance	The Max. at 20℃ shall be < 38 Ω/km < 11.59 Ω/1000ft

Capacitance	52 ±3 pF/m 15.85 ±1 pF/ft
Impedance	75 ± 3 Ω
Return loss	between 5 and 1000MHz: > 22dB
Velocity of Propagation	0.85
Sparker Test (VAC)	4

Mechanical and Envrionmental Properties
Cable bend radius	10 times the cable diameter
Operating Temp Range	-20 ℃ to 60℃
Cable diamensions	0.40''±0.006''/10.21±0.15 mm PVC

Cross Section














Attenuation(20℃):
Frequency (MHZ)	Max Attenuation(dB/100ft)	Max Attenuation (dB/100m)
5	0.38	1.25
55	0.96	3.15
83	1.18	3.87
187	1.75	5.74
211	1.90	6.23
250	2.05	6.72
300	2.25	7.38
350	2.42	7.94
400	2.60	8.53
450	2.75	9.02
500	2.90	9.51
550	3.04	9.97
600	3.18	10.43
750	3.65	11.97
865	3.98	13.05
1000	4.35	14.27

Order Informations:
Marking	HELLOSIGNAL RG11 S 77%PVC Messenger CATV COAXIAL CABLE 7100229 ×××M/FT
Package	Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …
Delivery time	Normally 25 days after received the deposit.
Brand	HELLOSIGNAL^® OR OEM
