| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | UL, ETL, CE, RoHS |
| Model Number: | RG11 S |
| Minimum Order Quantity: | 30 KM |
| Packaging Details: | 500M, 1000M, Wooden Drum, Pallet |
| Delivery Time: | Normally 15 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Inner Conductor: | 0.064"/1.63mm/14AWG CCS | Dielectric: | 0.280"/7.11mm Foamed PE |
|---|---|---|---|
| Shield 1: | 0.287"/7.29mm Bonded Aluminum PET | Shield 2: | Aluminum Braid Wire 60% Coverage |
| Jacket: | 0.400"±0.006"/10.16±0.15mm PVC | Jacket Thickness: | 0.042"/1.07mm |
| Messenger: | 0.072"/1.83mm Or 0.109"/2.77mm | Minimum Breaking Strength: | 365lbs./166kg Or 1,800lbs./818kg |
|

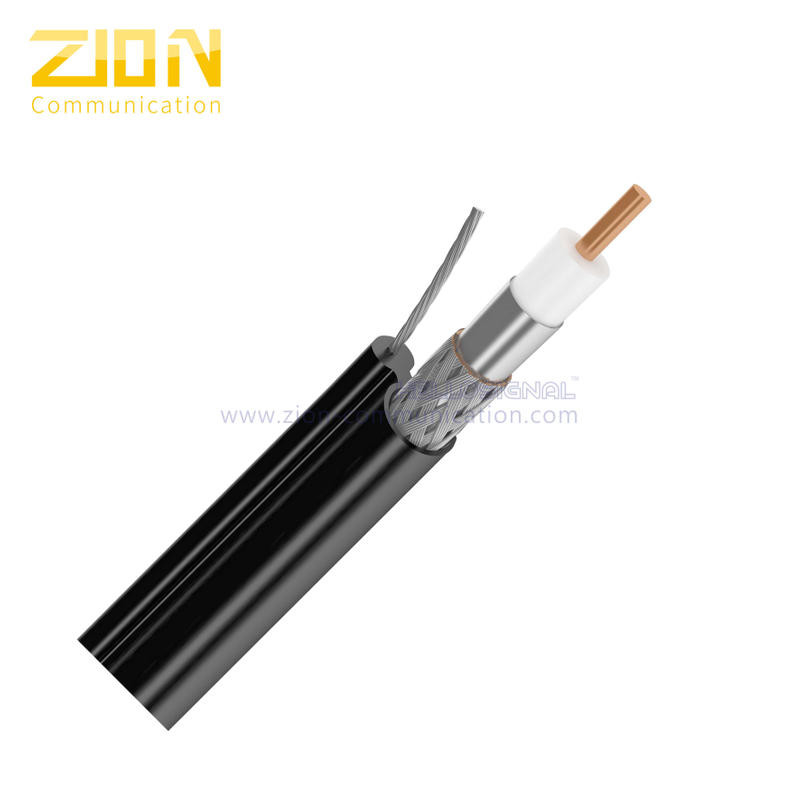

75 Ohm CATV coaxial Cable NO.7100206 |
|||
| Construction Parameters: | |||
| Inner Conductor | 0.064"/1.63mm/14AWG CCS | ||
| Dielectric | 0.280"/7.11mm Foamed PE | ||
| Shield 1 | 0.287"/7.29mm Bonded Aluminum PET | ||
| Shield 2 | Aluminum braid wire 60% coverage | ||
| Jacket | 0.400"±0.006"/10.16±0.15mmPVC | ||
| Jacket Thickness | 0.042"/1.07mm | ||
| Messenger | 0.072"/1.83mm or 0.109"/2.77mm | ||
| Minimum Breaking Strength | 365lbs./166kg or 1,800lbs./818kg | ||
| Application | For Use in Longer CATV Run Lengths | ||
| Electrical Characteristics: | |||
| Inner Conductor Resistance |
The Max. at 20℃ shall be < 38 Ω/km < 11.59 Ω/1000ft |
||
| Capacitance | 52 ±3 pF/m 15.85 ±1 pF/ft | ||
| Impedance | 75 ± 3 Ω | ||
| Return loss | between 5 and 1000MHz: > 22dB | ||
| Velocity of Propagation | 0.85 | ||
| Sparker Test (VAC) | 4 | ||
| Mechanical and Envrionmental Properties | |||
| Cable bend radius | 10 times the cable diameter | ||
| Operating Temp Range | -20 ℃ to 60℃ | ||
| Cable diamensions | 0.40''±0.006''/10.21±0.15 mm PVC | ||
| Cross Section | |||
| |
|||
| Attenuation(20℃): | |||
| Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) | |
| 5 | 0.38 | 1.25 | |
| 55 | 0.96 | 3.15 | |
| 83 | 1.18 | 3.87 | |
| 187 | 1.75 | 5.74 | |
| 211 | 1.90 | 6.23 | |
| 250 | 2.05 | 6.72 | |
| 300 | 2.25 | 7.38 | |
| 350 | 2.42 | 7.94 | |
| 400 | 2.60 | 8.53 | |
| 450 | 2.75 | 9.02 | |
| 500 | 2.90 | 9.51 | |
| 550 | 3.04 | 9.97 | |
| 600 | 3.18 | 10.43 | |
| 750 | 3.65 | 11.97 | |
| 865 | 3.98 | 13.05 | |
| 1000 | 4.35 | 14.27 | |
| Order Informations: | |||
| Marking |
HELLOSIGNAL RG11 S 60% PVC Messenger CATV COAXIAL CABLE 7100206 ×××M/FT |
||
| Package | Inquired Length on Reel,wooden Spool,pallet … | ||
| Delivery time | Normally 25 days after received the deposit. | ||
| Brand | HELLOSIGNAL® OR OEM | ||
