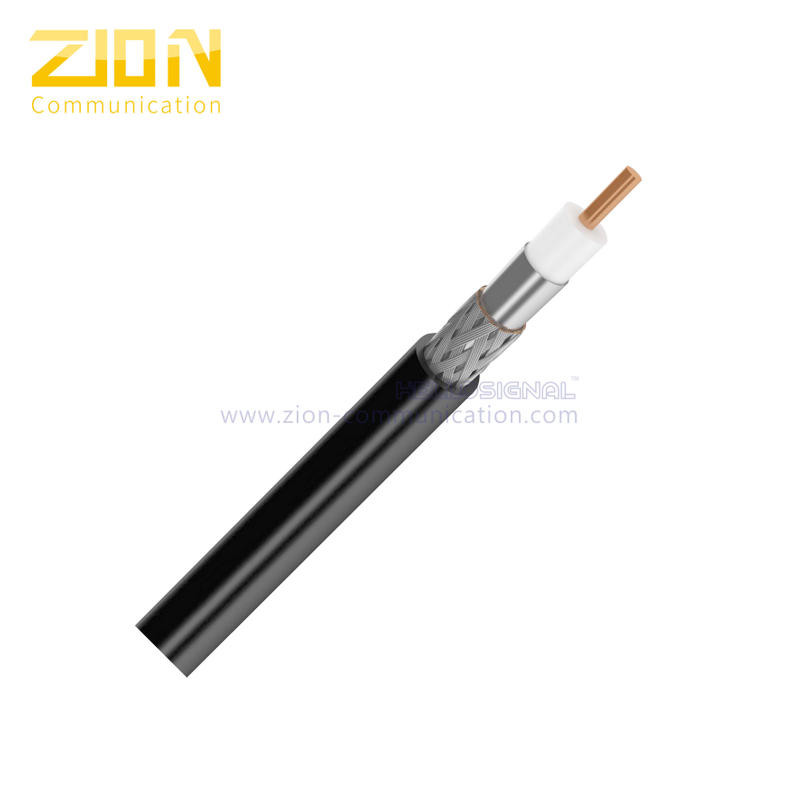

RG11 Aluminum braid wire 60% coverage PE Coaxial Cables RG 11 Coaxial Cable CPR Reach RoHS Certificate

Basic Information
Place of Origin: China
Brand Name: Zion communication OR OEM
Certification: UL, ETL, CE, RoHS
Model Number: RG11 S
Minimum Order Quantity: 30 KM
Packaging Details: 500M, 1000M, Wooden Drum, Pallet
Delivery Time: Normally 15 working days
Payment Terms: T/T, L/C
Supply Ability: 1000KM / Month
Detail Information
Inner Conductor: 0.064"/1.63mm/14AWG CCS Dielectric: 0.280"/7.11mm Foamed PE
Shield 1: 0.287"/7.29mm Bonded Aluminum PET Shield 2: Aluminum Braid Wire 60% Coverage
Jacket: 0.400"±0.006"/10.16±0.15mm PE Jacket Thickness: 0.042"/1.07mm
High Light:

RoHS Certificate RG 11 Coaxial Cable

,

Reach Certificate RG 11 Coaxial Cable


Product Description

RG11 Aluminum braid wire 60% coverage PE Coaxial Cables RG 11 Coaxial Cable CPR Reach RoHS Certificate 0RG11 S 60% PE

75 Ohm CATV coaxial Cable

NO.7100201

Construction Parameters:
Inner Conductor 0.064"/1.63mm/14AWG CCS
Dielectric 0.280"/7.11mm Foamed PE
Shield 1 0.287"/7.29mm Bonded Aluminum PET
Shield 2 Aluminum braid wire 60% coverage
Jacket 0.400"±0.006"/10.16±0.15mm PE
Jacket Thickness 0.042"/1.07mm
Application For Use in Longer CATV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance

The Max. at 20 shall be < 38 Ω/km

< 11.59 Ω/1000ft

Capacitance 52 ±3 pF/m 15.85 ±1 pF/ft
Impedance 75 ± 3 Ω
Return loss between 5 and 1000MHz: > 22dB
Velocity of Propagation 0.85
Sparker Test (VAC) 4

Mechanical and Envrionmental Properties
Cable bend radius 10 times the cable diameter
Operating Temp Range -20 to 60
Cable diamensions 0.40''±0.006''/10.21±0.15 mm PE

Cross Section
                      RG11 Aluminum braid wire 60% coverage PE Coaxial Cables RG 11 Coaxial Cable CPR Reach RoHS Certificate 1
Attenuation(20℃):
Frequency (MHZ) Max Attenuation(dB/100ft) Max Attenuation (dB/100m)
5 0.38 1.25
55 0.96 3.15
83 1.18 3.87
187 1.75 5.74
211 1.90 6.23
250 2.05 6.72
300 2.25 7.38
350 2.42 7.94
400 2.60 8.53
450 2.75 9.02
500 2.90 9.51
550 3.04 9.97
600 3.18 10.43
750 3.65 11.97
865 3.98 13.05
1000 4.35 14.27

Order Informations:
Marking

HELLOSIGNAL RG11 S 60% PE

CATV COAXIAL CABLE 7100201 ×××M/FT

Package Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …
Delivery time Normally 25 days after received the deposit.
Brand HELLOSIGNAL ®OR OEM
