| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | UL, ETL, CE, RoHS |
| Model Number: | QR |
| Minimum Order Quantity: | 30 KM |
| Packaging Details: | 500M, 1000M, Wooden Drum, Pallet |
| Delivery Time: | Normally 15 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Inner Conductor: | 6AWG 4.22mm CCA | Dielectric: | 17.42mm Foamed PE |
|---|---|---|---|
| Outer Conductor: | 18.16mm Welding Aluminum Tube | Jacket: | 19.94mm PE Black |
| Jacket Thickness: | 0.89mm | Messenger: | 4.78mm Steel Wire |

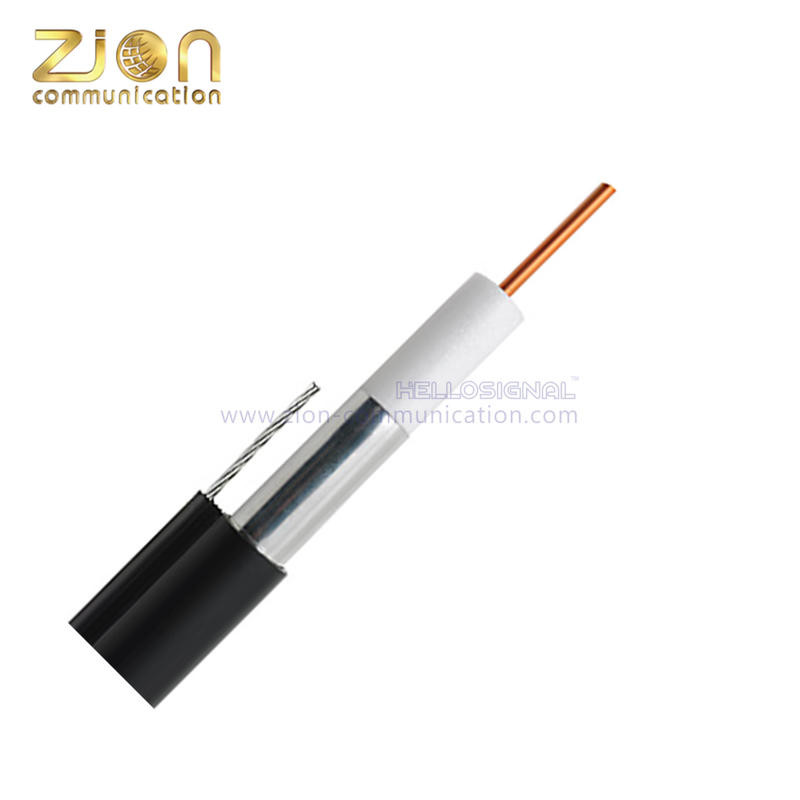

| Trunk Cable QR715M 75 Ohm CATV Coaxial Cable NO.7100408 |
||||||||
| Construction Parameters: | ||||||||
| Inner Conductor | 6AWG 4.22mm CCA | |
||||||
| Dielectric | 17.42mm Foamed PE | |||||||
| Outer Conductor | 18.16mm Welding Aluminum Tube | |||||||
| Jacket | 19.94mm PE Black | |||||||
| Jacket Thickness | 0.89mm | |||||||
| Messenger | 4.78mm Steel Wire | |||||||
| Application | For Use in Longer CATV Run Lengths | |||||||
| Electrical Characteristics: | ||||||||
| Inner Conductor Resistance | The Max. at 20℃ shall be <1.90 Ω/km | |||||||
| Capacitance | 50 ± 3 pF/m | |||||||
| Impedance | 75 ± 2 Ω | |||||||
| Return loss | between 5 and 1000MHz: > 22dB | |||||||
| Velocity of Propagation | 87% | |||||||
| Sparker Test (VAC) | 4 | |||||||
| Mechanical and Environmental Properties: | ||||||||
| Cable Bend Radius | 10 times the cable diameter | |||||||
| Operating Temperature Range | -40 ℃ to +85℃ | |||||||
| Cable Diamensions | 19.94mm PE Black | |||||||
|
Cross Section:
|
||||||||
|
|
||||||||
| Attenuation(20℃): | ||||||||
| Frequency (MHZ) | Max Attenuation (dB/100m) | |||||||
| 5 | 0.36 | |||||||
| 55 | 1.18 | |||||||
| 211 | 2.43 | |||||||
| 250 | 2.66 | |||||||
| 300 | 2.92 | |||||||
| 350 | 3.18 | |||||||
| 400 | 3.44 | |||||||
| 450 | 3.67 | |||||||
| 500 | 3.90 | |||||||
| 550 | 4.10 | |||||||
| 600 | 4.30 | |||||||
| 750 | 4.89 | |||||||
| 865 | 5.31 | |||||||
| 1000 | 5.74 | |||||||
| Order Informations: | ||||||||
| Marking | HELLOSIGNAL Trunk Cable QR715M ×××M | |||||||
| Package | Inquired Length on Wooden Drum, Pallet … | |||||||
| Delivery Time | Normally 25 days after received the deposit. | |||||||
| Brand | HELLOSIGNAL® OR OEM | |||||||
