Trunk Cable QR 860 Series Cable Trunk and Distribution coaxial cable For Use in Longer CATV Run Lengths

Basic Information

Place of Origin:	China
Brand Name:	Zion communication OR OEM
Certification:	UL, ETL, CE, RoHS
Model Number:	QR

Minimum Order Quantity:	30 KM
Packaging Details:	500M, 1000M, Wooden Drum, Pallet
Delivery Time:	Normally 15 working days
Payment Terms:	T/T, L/C
Supply Ability:	1000KM / Month

Get Best Price Contact Now

Detail Information

Inner Conductor:	4AWG 5.16mm CCA	Dielectric:	21.03mm Foamed PE
Outer Conductor:	21.84mm Welding Aluminum Tube	Jacket:	24.38mm PE Black
Jacket Thickness:	1.27mm

Product Description

Trunk Cable QR860 75 Ohm CATV Coaxial Cable NO.7100418

Construction Parameters:
Inner Conductor	4AWG 5.16mm CCA
Dielectric	21.03mm Foamed PE
Outer Conductor	21.84mm Welding Aluminum Tube
Jacket	24.38mm PE Black
Jacket Thickness	1.27mm
Application	For Use in Longer CATV Run Lengths

Electrical Characteristics:
Inner Conductor Resistance	The Max. at 20℃ shall be <1.33 Ω/km
Capacitance	50 ± 3 pF/m
Impedance	75 ± 2 Ω
Return loss	between 5 and 1000MHz: > 22dB
Velocity of Propagation	87%
Sparker Test (VAC)	4

Mechanical and Environmental Properties:
Cable Bend Radius	10 times the cable diameter
Operating Temperature Range	-40 ℃ to +85℃
Cable Diamensions	24.38mm PE Black

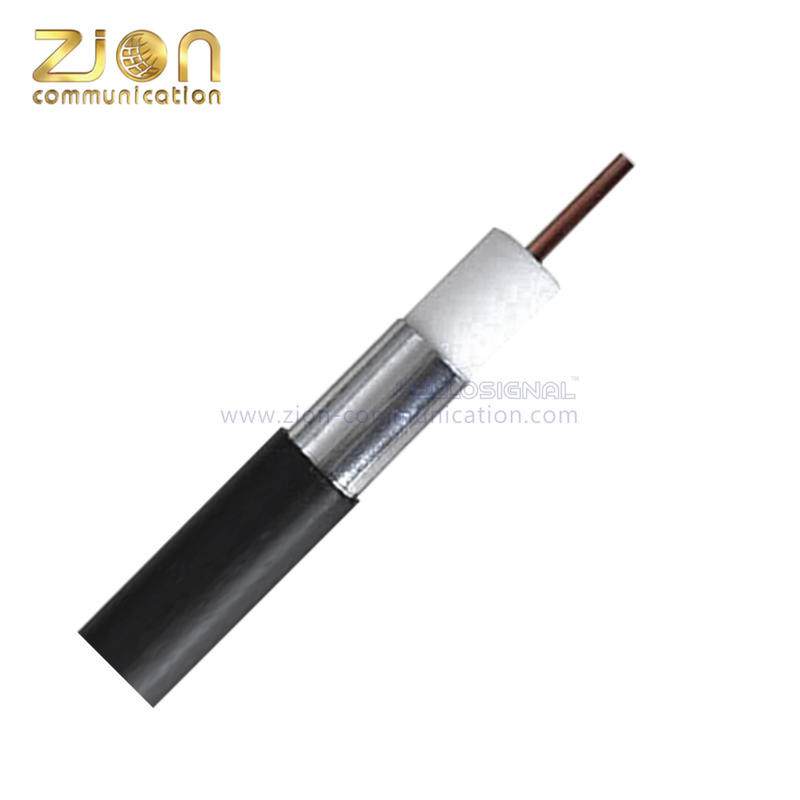

Cross Section:


Attenuation(20℃):
Frequency (MHZ)		Max Attenuation (dB/100m)
5		0.30
55		1.05
211		2.10
250		2.30
300		2.49
350		2.72
400		2.89
450		3.12
500		3.28
550		3.48
600		3.61
750		4.07
865		4.36
1000		4.72




Order Informations:
Marking	HELLOSIGNAL Trunk Cable QR860 ×××M
Package	Inquired Length on Wooden Drum, Pallet …
Delivery Time	Normally 25 days after received the deposit.
Brand	HELLOSIGNAL® OR OEM
