| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | UL, ETL, CE, RoHS |
| Model Number: | QR |
| Minimum Order Quantity: | 30 KM |
| Packaging Details: | 500M, 1000M, Wooden Drum, Pallet |
| Delivery Time: | Normally 15 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Inner Conductor: | 13AWG 1.80mm CCA | Dielectric: | 7.47mm Foamed PE |
|---|---|---|---|
| Outer Conductor: | 8.13mm Welding Aluminum Tube | Jacket: | 10.03mm PE Black |
| Jacket Thickness: | 0.76mm |

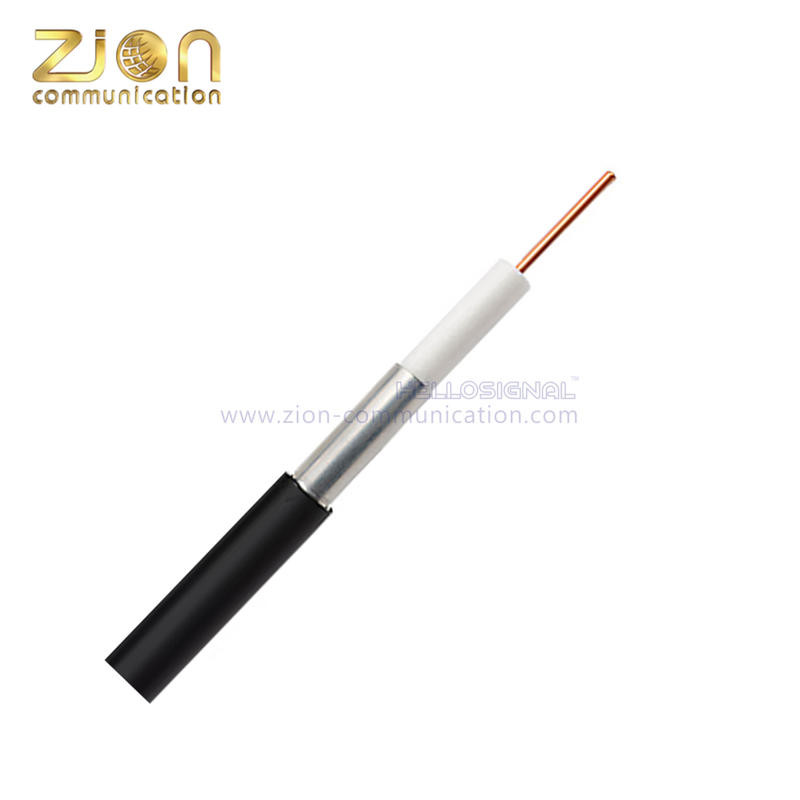

| Trunk Cable QR320 75 Ohm CATV Coaxial Cable NO.7100415 |
||||||||
|
Construction Parameters: |
||||||||
| Inner Conductor | 13AWG 1.80mm CCA | |||||||
| Dielectric | 7.47mm Foamed PE | |||||||
| Outer Conductor | 8.13mm Welding Aluminum Tube | |||||||
| Jacket | 10.03mm PE Black | |||||||
| Jacket Thickness | 0.76mm | |||||||
| Application | For Use in Longer CATV Run Lengths | |||||||
| Electrical Characteristics: | ||||||||
| Inner Conductor Resistance | The Max. at 20℃ shall be <10.76 Ω/km | |||||||
| Capacitance | 50 ± 3 pF/m | |||||||
| Impedance | 75 ± 2 Ω | |||||||
| Return loss | between 5 and 1000MHz: > 22dB | |||||||
| Velocity of Propagation | 87% | |||||||
| Sparker Test (VAC) | 4 | |||||||
| Mechanical and Environmental Properties: | ||||||||
| Cable Bend Radius | 10 times the cable diameter | |||||||
| Operating Temperature Range | -40 ℃ to +85℃ | |||||||
| Cable Diamensions | 10.03mm PE Black | |||||||
| Cross Section: | ||||||||
|
||||||||
| Attenuation(20℃): | ||||||||
| Frequency (MHZ) | Max Attenuation (dB/100m) | |||||||
| 5 | 0.79 | |||||||
| 55 | 2.62 | |||||||
| 211 | 5.68 | |||||||
| 250 | 6.10 | |||||||
| 300 | 6.37 | |||||||
| 350 | 7.38 | |||||||
| 400 | 7.81 | |||||||
| 450 | 8.27 | |||||||
| 500 | 8.92 | |||||||
| 550 | 9.35 | |||||||
| 600 | 9.78 | |||||||
| 750 | 10.96 | |||||||
| 865 | 11.87 | |||||||
| 1000 | 12.76 | |||||||
| Order Informations: | ||||||||
| Marking | HELLOSIGNAL Trunk Cable QR320 ×××M | |||||||
| Package | Inquired Length on Wooden Drum, Pallet … | |||||||
| Delivery Time | Normally 25 days after received the deposit. | |||||||
| Brand | HELLOSIGNAL® OR OEM | |||||||
