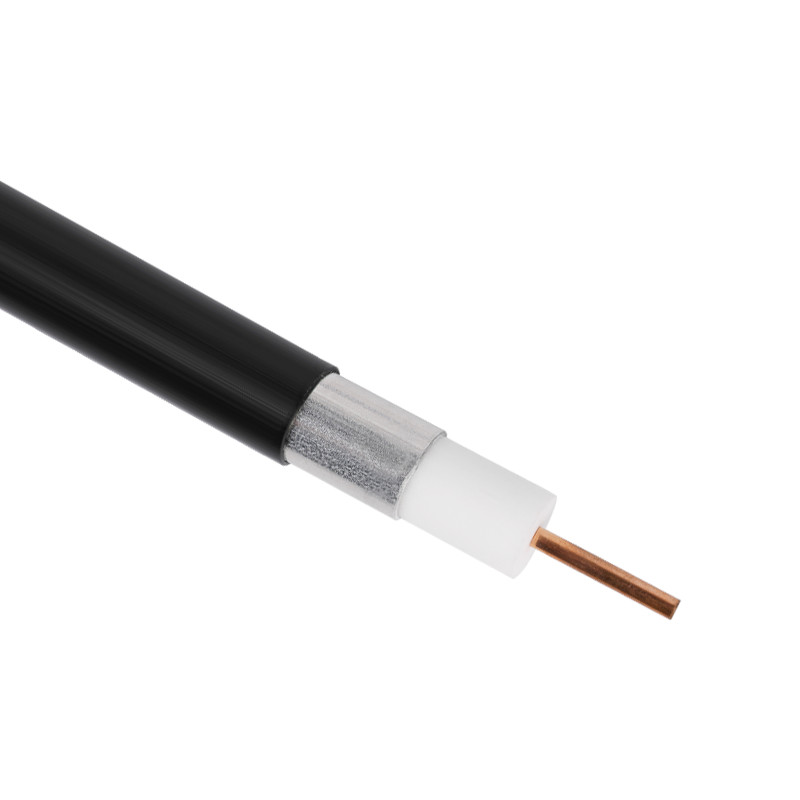

Trunk Coax Cable PS 750 Aluminum Tube Series Welded and Seamless 75Ohm Coaxial Cable

Basic Information

Place of Origin:	China
Brand Name:	Zion communication OR OEM
Certification:	UL, ETL, CE, RoHS
Model Number:	PS

Minimum Order Quantity:	30 KM
Packaging Details:	500M, 1000M, Wooden Drum, Pallet
Delivery Time:	Normally 15 working days
Payment Terms:	T/T, L/C
Supply Ability:	1000KM / Month

Get Best Price Contact Now

Detail Information

Inner Conductor:	0.167" /4.24mm/ 6AWG CCA	Dielectric:	0.681"/17.32mm Foamed PE
Shield 1:	0.75"/19.05mm Welding Smooth Aluminum Tube	Shield Thickness:	0.034" /0.86mm
Jacket:	0.820" /20.83mm PE	Jacket Thickness:	0.030"/0.76mm

Product Description

Trunk Coax Cable PS 750 75 Ohm CATV coaxial Cable NO.7100414



Construction Parameters:
Inner Conductor	0.167" /4.24mm/ 6AWG CCA
Dielectric	0.681"/17.32mm Foamed PE
Shield 1	0.75"/19.05mm Welding Smooth Aluminum Tube
Shield Thickness	0.034" /0.86mm
Jacket	0.820" /20.83mm PE
Jacket Thickness	0.030"/0.76mm


Application	For Use in Longer CATV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance	The Max. at 20℃ shall be<1.87 Ω/km

Capacitance	50 ± 3 pF/m
Impedance	75 ± 2 Ω
Return loss	between 5 and 1000MHz: > 22dB
Velocity of Propagation	0.87
Sparker Test (VAC)	4

Mechanical and Envrionmental Properties
Cable bend radius	10 times the cable diameter
Operating Temp Range	-20 ℃ to 60℃
Cable diamensions	0.820" /20.83mm PE
Cross Section














Attenuation(20℃):
Frequency (MHZ)	Nominal (dB/100m)	Max Attenuation (dB/100m)
5.00	0.33	0.36
55.00	1.15	1.21
83.00	1.38	1.51
211.00	2.33	2.43
250.00	2.53	2.66
300.00	2.79	2.92
350.00	2.99	3.18
400.00	3.25	3.44
450.00	3.48	3.67
500.00	3.64	3.87
550.00	3.90	4.07
600.00	4.04	4.30
750.00	4.53	4.86
865.00	4.89	5.28
1000.00	5.32	5.71

Order Informations:
Marking	HELLOSIGNAL Trunk Coax Cable PS 750 CATV COAXIAL CABLE 7100414 ×××M/FT
Package	Inquired Length on wooden Spool,pallet …
Delivery time	Normally 25 days after received the deposit.
Brand	HELLOSIGNAL^® OR OEM
