| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | UL, ETL, CE, RoHS |
| Model Number: | PS |
| Minimum Order Quantity: | 30 KM |
| Packaging Details: | 500M, 1000M, Wooden Drum, Pallet |
| Delivery Time: | Normally 15 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Inner Conductor: | 0.163" /4.14mm/ 6AWG CCA | Dielectric: | 0.653"/16.59mm Foamed PE |
|---|---|---|---|
| Shield 1: | 0.703"/17.86mm Welding Smooth Aluminum Tube | Shield Thickness: | 0.025" /0.63mm |
| Jacket: | 0.765" /19.43mm PE | Jacket Thickness: | 0.030"/0.76mm |
| Messenger: | 7× (0.066"/1.67mm) |
|

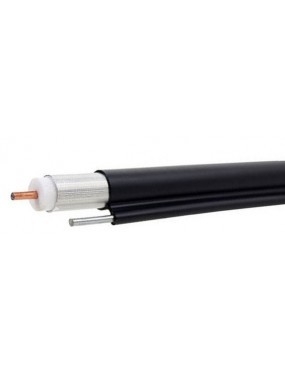

75 Ohm CATV coaxial Cable NO.7100404 |
|||
| Construction Parameters: | |||
| Inner Conductor | 0.163" /4.14mm/ 6AWG CCA | ||
| Dielectric | 0.653"/16.59mm Foamed PE | ||
| Shield 1 | 0.703"/17.86mm Welding Smooth Aluminum Tube | ||
| Shield Thickness | 0.025" /0.63mm | ||
| Jacket | 0.765" /19.43mm PE | ||
| Jacket Thickness | 0.030"/0.76mm | ||
| Messenger | 7× (0.066"/1.67mm) | ||
| Max.Breaking Strength of Messenger(kgf) |
1769 | ||
| Application | For Use in Longer CATV Run Lengths | ||
| Electrical Characteristics: | |||
| Inner Conductor Resistance | The Max. at 20℃ shall be<1.93 Ω/km | ||
| Capacitance | 50 ± 3 pF/m | ||
| Impedance | 75 ± 2 Ω | ||
| Return loss | between 5 and 1000MHz: > 22dB | ||
| Velocity of Propagation | 0.89 | ||
| Sparker Test (VAC) | 4 | ||
| Mechanical and Envrionmental Properties | |||
| Cable bend radius | 10 times the cable diameter | ||
| Operating Temp Range | -20 ℃ to 60℃ | ||
| Cable diamensions | 0.765" /19.43mm PE | ||
| Cross Section | |||
|
|||
| Attenuation(20℃): | |||
| Frequency (MHZ) | Nominal (dB/100m) | Max Attenuation (dB/100m) | |
| 5.00 | 0.36 | 0.36 | |
| 55.00 | 1.15 | 1.18 | |
| 83.00 | 1.44 | 1.48 | |
| 211.00 | 2.36 | 2.40 | |
| 250.00 | 2.59 | 2.66 | |
| 300.00 | 2.85 | 2.95 | |
| 350.00 | 3.12 | 3.22 | |
| 400.00 | 3.35 | 3.45 | |
| 450.00 | 3.54 | 3.67 | |
| 500.00 | 3.77 | 3.90 | |
| 550.00 | 3.97 | 4.10 | |
| 600.00 | 4.17 | 4.30 | |
| 750.00 | 4.72 | 4.89 | |
| 865.00 | 5.15 | 5.32 | |
| 1000.00 | 5.54 | 5.74 | |
| Order Informations: | |||
| Marking |
HELLOSIGNAL Trunk Coax Cable PS 700M CATV COAXIAL CABLE 7100404 ×××M/FT |
||
| Package | Inquired Length on wooden Spool,pallet … | ||
| Delivery time | Normally 25 days after received the deposit. | ||
| Brand | HELLOSIGNAL® OR OEM | ||
