Trunk Coax Cable PS 500M 75 Ohm CATV coaxial Cable

Name: Trunk Coax Cable PS 500M 75 Ohm CATV coaxial Cable
Brand: HANGZHOU ZION COMMUNICATION CO., LTD
SKU: PS
Availability: InStock

Basic Information

Get Best Price Contact Now

Detail Information

Inner Conductor:	0.109"/2.77mm/18AWG CCA	Dielectric:	0.450"/11.43mm Foamed PE
Shield 1:	0.5"/12.7mm Welding Smooth Aluminum Tube	Shield Thickness:	0.024I"/0.61mm
Jacket:	0.570"/14.48mm PE	Jacket Thickness:	0.030"/0.76mm
Messenger:	0.109" /2.77mm Steel

Product Description

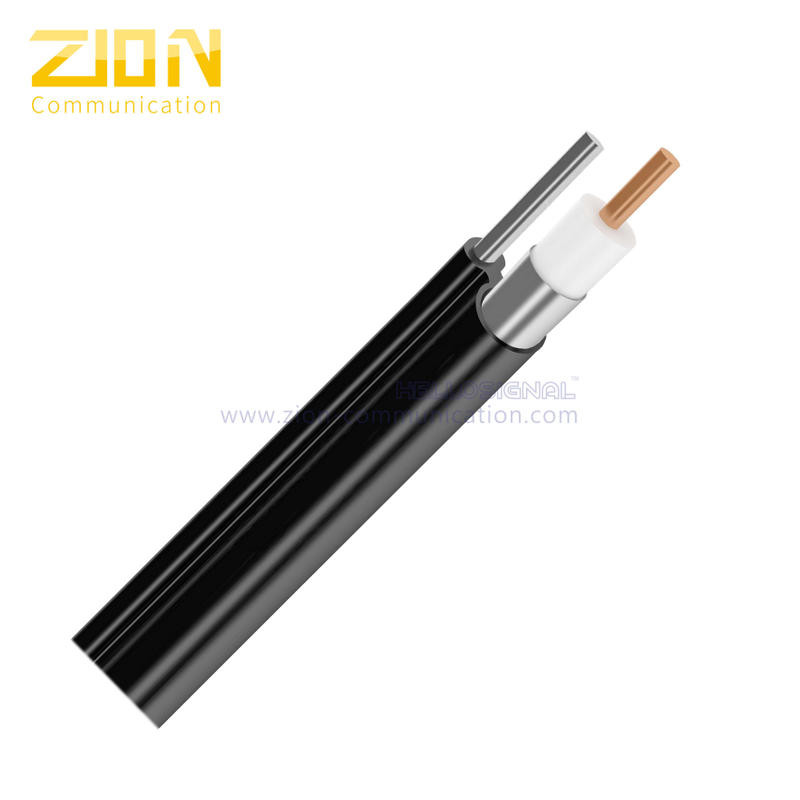

Trunk Coax Cable PS 500M 75 Ohm CATV coaxial Cable NO.7100401



Construction Parameters:
Inner Conductor	0.109"/2.77mm/18AWG CCA
Dielectric	0.450"/11.43mm Foamed PE
Shield 1	0.5"/12.7mm Welding Smooth Aluminum Tube
Shield Thickness	0.024I"/0.61mm
Jacket	0.570"/14.48mm PE
Jacket Thickness	0.030"/0.76mm
Messenger	0.109" /2.77mm Steel
Max.Breaking Strength of Messenger(kgf)	816
Application	For Use in Longer CATV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance	The Max. at 20℃ shall be < 4.43 Ω/km

Capacitance	50 ± 3 pF/m
Impedance	75 ± 2 Ω
Return loss	between 5 and 1000MHz: > 22dB
Velocity of Propagation	0.87
Sparker Test (VAC)	4

Mechanical and Envrionmental Properties
Cable bend radius	10 times the cable diameter
Operating Temp Range	-20 ℃ to 60℃
Cable diamensions	0.570"/14.48mm PE
Cross Section













Attenuation(20℃):
Frequency (MHZ)	Nominal (dB/100m)	Max Attenuation (dB/100m)
5.00	0.52	0.52
55.00	1.71	1.77
83.00	2.10	2.17
211.00	3.48	3.58
250.00	3.77	3.94
300.00	4.13	4.30
350.00	4.46	4.69
400.00	4.82	5.02
450.00	5.12	5.35
500.00	5.41	5.67
550.00	5.74	5.97
600.00	6.00	6.27
750.00	6.69	7.09
865.00	7.22	7.68
1000.00	7.91	8.27

Order Informations:
Marking	HELLOSIGNAL Trunk Coax Cable PS 500M CATV COAXIAL CABLE 7100401 ×××M/FT
Package	Inquired Length on wooden Spool,pallet …
Delivery time	Normally 25 days after received the deposit.
Brand	HELLOSIGNAL^® OR OEM
