| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | MSHA, CE,CPR, RoHS |
| Model Number: | VHF Leaky Feeder Cable |
| Minimum Order Quantity: | 10 KM |
| Packaging Details: | 500M, 1000M, Wooden Drum, Pallet |
| Delivery Time: | Normally 15 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Inner Conductor: | 2.31 ± 0.05mm Bare Copper | Dielectric: | 9.50 ± 0.20mm Foamed PE |
|---|---|---|---|
| Shield: | 16 X 0.60mm Bare Copper Wire Braid | Inner Jacket: | 13.00 ± 0.20mm PE Black |
| Outer Jacket: | 15.00 ± 0.20mm FR-PVC Or LSZH |

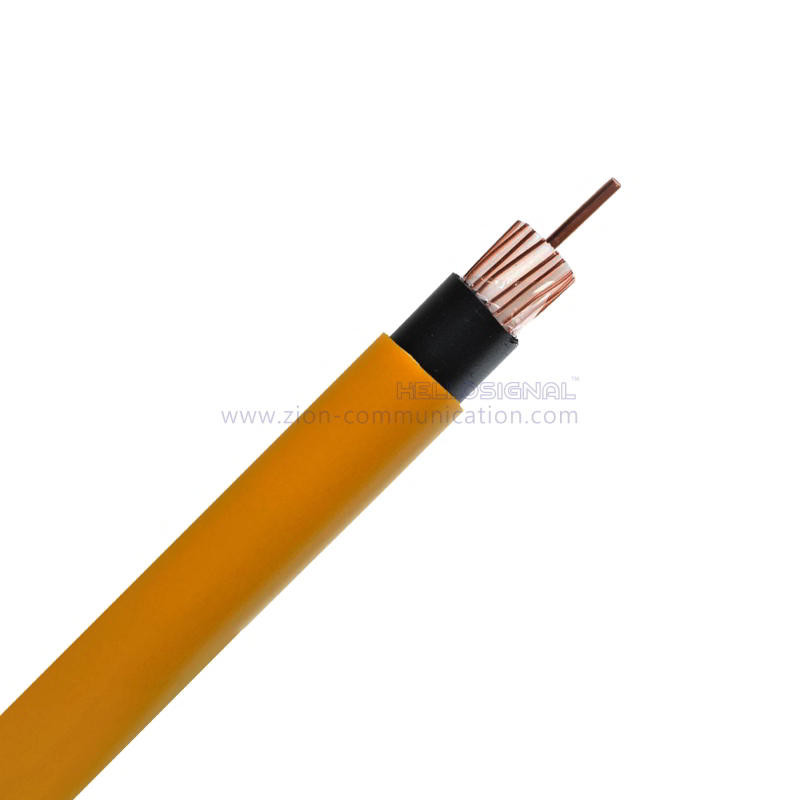

| VHF Leaky Feeder Cable (NO.7100500) | ||
| Construction Parameters: | ||
| Inner Conductor | 2.31 ± 0.05mm Bare Copper | |
| Dielectric | 9.50 ± 0.20mm Foamed PE | |
| Shield | 16 x 0.60mm Bare Copper Wire Braid | |
| Inner Jacket | 13.00 ± 0.20mm PE Black | |
| Outer Jacket | 15.00 ± 0.20mm FR-PVC or LSZH | |
| Application | For Use in Mines Underground Communication System | |
| Electrical Characteristics: | ||
| Inner Conductor DC Resistance |
The Max. shall be <4.1 Ω/km | |
| Outer Conductor DC Resistance |
The Max. shall be <3.9 Ω/km | |
| Insulation Resistance | ＞10.4 Ω/km | |
| Capacitance | 54 pF/m | |
| Impedance | 75±3 Ω | |
| Frequency | 5 to 500MHZ | |
| Attenuation | ≤3.4dB/100m @ 85MHZ | |
| ≤4.2dB/100m @ 150MHZ | ||
| ≤4.8dB/100m @ 160MHZ | ||
| ≤6.2dB/100m @ 450MHZ | ||
|
Cross Section:
|
||
| Mechanical and Envrionmental Properties: | ||
| Minimum Bend Radius | 150mm | |
| Operating Temp Range | -40 ℃ to +70℃ | |
| Cable Diamensions | 15.00 ± 0.20mm FR-PVC or LSZH | |
