| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | UL, ETL, CE, RoHS |
| Model Number: | CT Cable |
| Minimum Order Quantity: | 30 KM |
| Packaging Details: | 500M, 1000M, Wooden Drum, Pallet |
| Delivery Time: | Normally 15 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Inner Conductor: | 0.04"/1.00mm/18AWG BC | Dielectric: | 4.6mm 5 Cell Air Spaced PE |
|---|---|---|---|
| Shield 1: | 4.75mm Overlapped Copper Foil | Shield 2: | 16*4*0.12mm Bare Copper Braid Wire 55% Coverage |
| Jacket: | 6.7±0.15mm LSZH | Jacket Thickness: | 0.030"/0.76mm |
|

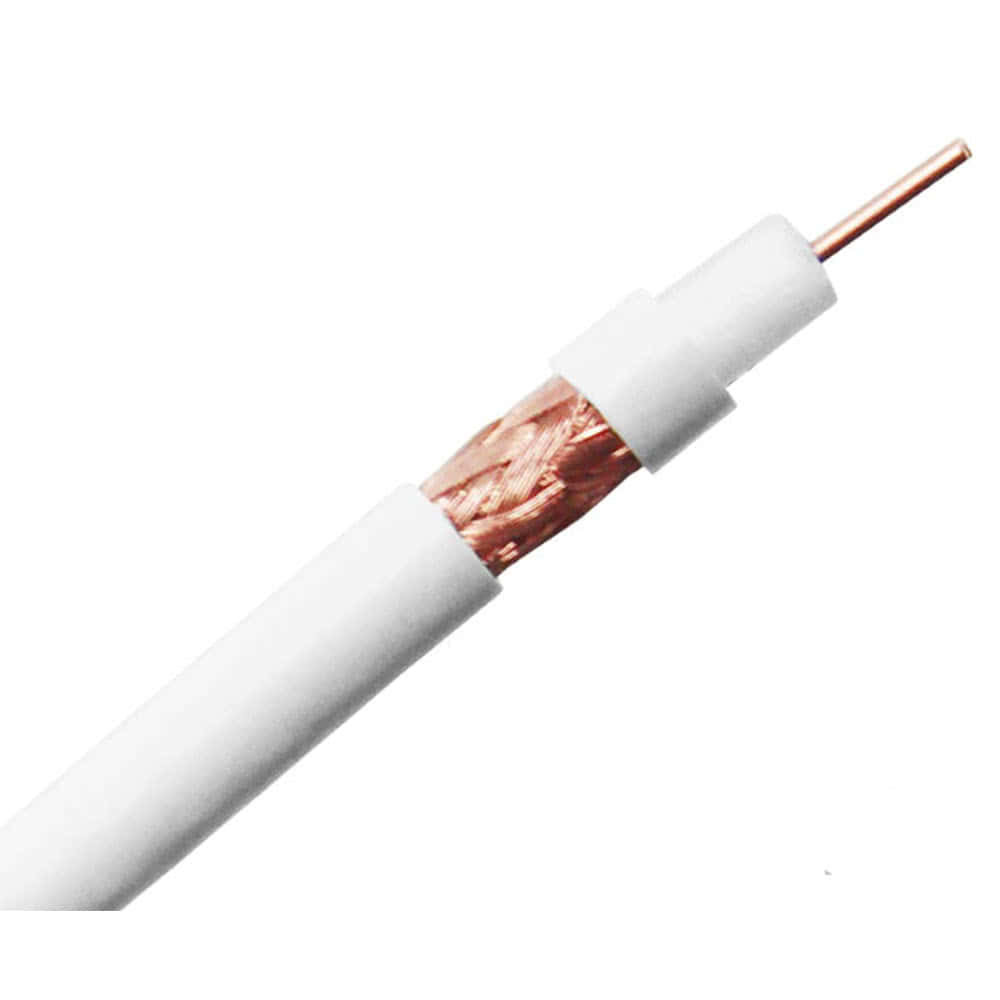

75 Ohm CATV coaxial Cable NO.7100442 |
|||
| Construction Parameters: | |||
| Inner Conductor | 0.04"/1.00mm/18AWG BC | ||
| Dielectric | 4.6mm 5 cell air spaced PE | ||
| Shield 1 | 4.75mm overlapped copper foil | ||
| Shield 2 | 16*4*0.12mm bare copper braid wire 55% coverage |
||
| Jacket | 6.7±0.15mm LSZH | ||
| Jacket Thickness | 0.030"/0.76mm | ||
| Application | For Use in Longer CATV Run Lengths | ||
| Electrical Characteristics: | |||
| Inner Conductor Resistance |
The Max. at 20℃ shall be < 21.9 Ω/km 6.68Ω/1000ft |
||
| Capacitance | 52 ±3 pF/m 15.9 ±0.9 pF/ft | ||
| Impedance | 75 ± 3 Ω | ||
| Return loss | between 5 and 1000MHz: > 22dB | ||
| Velocity of Propagation | 0.85 | ||
| Sparker Test (VAC) | 4 | ||
| Mechanical and Envrionmental Properties | |||
| Cable bend radius | 10 times the cable diameter | ||
| Operating Temp Range | -20 ℃ to 60℃ | ||
| Cable diamensions | 6.7±0.15mm LSZH | ||
| Cross Section | |||
|
|||
| Attenuation(20℃): | |||
| Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) | |
| 5 | 1.00 | ||
| 10 | 1.50 | ||
| 50 | 3.80 | ||
| 100 | 5.70 | ||
| 200 | 8.70 | ||
| 300 | 9.80 | ||
| 470 | 12.80 | ||
| 600 | 14.00 | ||
| 1000 | 19.00 | ||
| Order Informations: | |||
| Marking |
HELLOSIGNAL CT100 CPE LSZH CATV COAXIAL CABLE 7100442 ×××M/FT |
||
| Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | ||
| Delivery time | Normally 25 days after received the deposit. | ||
| Brand | HELLOSIGNAL® OR OEM | ||
