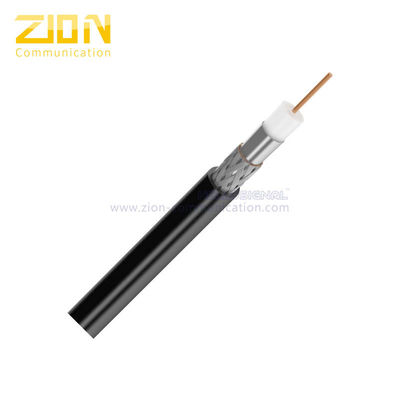

Паракс РК 75-4-318 Cu/PET CuSn braid wire 63% coverage coaxial cable

Basic Information
Place of Origin: China
Brand Name: Zion communication OR OEM
Certification: ISO, CE, RoHS, UL
Model Number: PK75
Minimum Order Quantity: 5 KM
Packaging Details: 500M, 1000M, Wooden Drum, Pallet
Delivery Time: 25 working days
Payment Terms: T/T, L/C
Supply Ability: 1000KM / Month
Detail Information
Inner Conductor: 1.02mm±0.02mm Copper Dielectric: 4.60mm±0.10 Foamed PE
Shield 1: Cu/PET Shield 2: CuSn Braid Wire 63% Coverage
Outer Sheath: 6.80±0.20mm PVC

Product Description

PK75-4-318 COAXIAL CABLE


Construction Parameters:
Inner Conductor 1.02mm±0.02mm Copper
Dielectric 4.60mm±0.10 Foamed PE
Shield 1 Cu/PET
Shield 2 CuSn braid wire 63% coverage
Outer sheath 6.80±0.20mm PVC
*Notes Cu/PET = Copper/Polyester

Electrical Characteristics:
Inner Conductor Resistance 17.5Ω/KM
Capacitance 54 ±3 pF/m
Impedance 75 ± 3 Ω
Return loss between 5 and 1000MHz: > 22dB
Velocity of Propagation 0.85
Sparker Test (VAC) 4

Attenuation(20℃):
Frequency (MHZ)   Max Attenuation (dB/100m)
10   1.90
50   4.20
220   8.60
470   13.40
862   18.40
1000   20.00
1350   23.60
1750   27.20
2150   30.50
2400   32.90
3000   36.10

Mechanical and Envrionmental Properties
Cable bend radius 10 times the cable diameter
Operating Temp Range -20 to 60
Cable diamensions 6.8±0.20mm PVC

Order Informations:
Marking HELLOSIGNAL PK75-4-318 COAXIAL CABLE ×××M
Package 100M/Reel,300M/Wooden Spool (Per customers inquire)
Delivery time Normally 25 days after received the deposit.
Brand HELLOSIGNAL® OR OEM
