| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | UL, ETL, CE,CPR, RoHS |
| Model Number: | D-FB Coax Cable |
| Minimum Order Quantity: | 10 KM |
| Packaging Details: | 100M, 300M, Wooden Reel, Carton |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Inner Conductor: | 1.80±0.03mm Bare Copper | Dielectric: | 4.95±0.15mm Foamed PE |
|---|---|---|---|
| Shield: | Bonded AL-Foil | Outer Conductor: | Nom. 5.70mm Tinned Copper Braid 86% Coverage |
| Jacket: | 7.50±0.15mm PE Black |

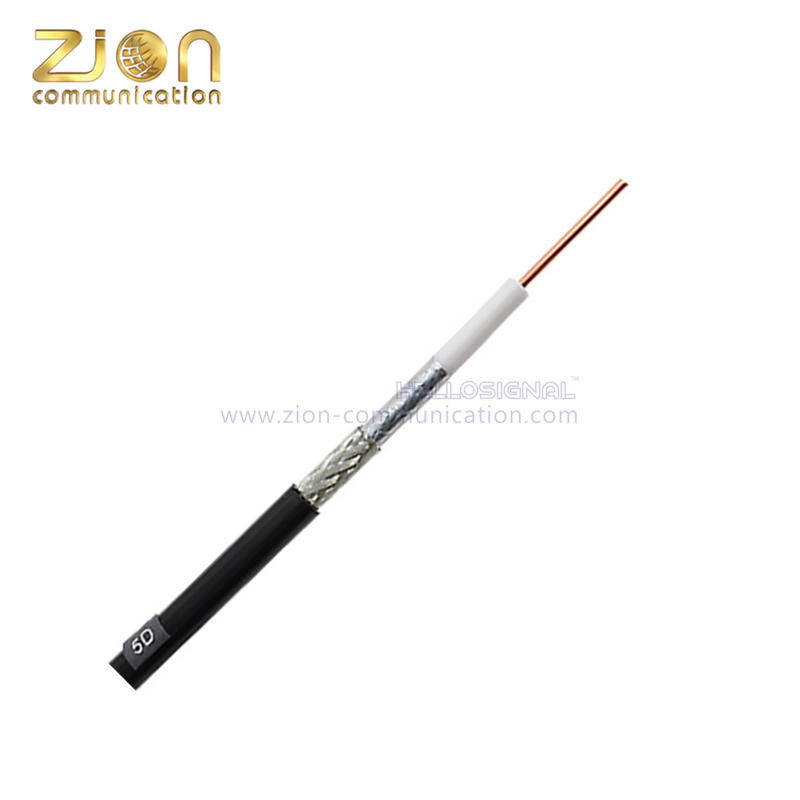

| 5D-FB BC TC PE 50 Ohm coaxial cable NO.7101403 |
||||||||
| Construction Parameters: | ||||||||
| Inner Conductor | 1.80±0.03mm Bare Copper | |||||||
| Dielectric | 4.95±0.15mm Foamed PE | |||||||
| Shield | Bonded AL-Foil | |||||||
| Outer Conductor | Nom. 5.70mm Tinned Copper Braid 86% Coverage | |||||||
| Jacket | 7.50±0.15mm PE Black | |||||||
| Electrical Characteristics: | ||||||||
| Capacitance | 80 pF/m | |
||||||
| Impedance | 50±2 Ω | |||||||
| Velocity of Propagation | 83% | |||||||
| DC Breakdown Voltage | 2500V | |||||||
| Jacket Spark | 3000 V.RMS | |||||||
| Shielding Effectiveness | ≥ 80 dB | |||||||
| Return Loss | ≥ 20.8 dB | |||||||
| RoHS | Yes | |||||||
| Mechanical and Environmental Properties: | ||||||||
| Min. Cable Bend Radius | 35mm | |||||||
| Operating Temp. Range | -40 ℃ to +80℃ | |||||||
| Installation Temp. Range | -30 ℃ to +60℃ | |||||||
| Tensile Strength | 55 kg | |||||||
| Attenuation(20℃): | ||||||||
| Frequency (MHZ) | Max Attenuation (dB/100m) | |||||||
| 150 | 7.60 | |||||||
| 280 | 10.70 | |||||||
| 350 | 12.10 | |||||||
| 400 | 12.70 | |||||||
| 800 | 18.60 | |||||||
| 900 | 19.70 | |||||||
| 1200 | 23.80 | |||||||
| 1500 | 27.00 | |||||||
| 1900 | 31.10 | |||||||
| 2000 | 32.20 | |||||||
| 2400 | 35.60 | |||||||
| 3000 | 40.80 | |||||||
| Order Informations: | ||||||||
| Marking | HELLOSIGNAL 5D-FB 50 Ohm COAXIAL CABLE ×××M | |||||||
| Package | Inquired Length on Roll, Wooden Spool, Pallet … | |||||||
| Delivery time | Normally 25 days after received the deposit. | |||||||
| Brand | HELLOSIGNAL® OR OEM | |||||||
