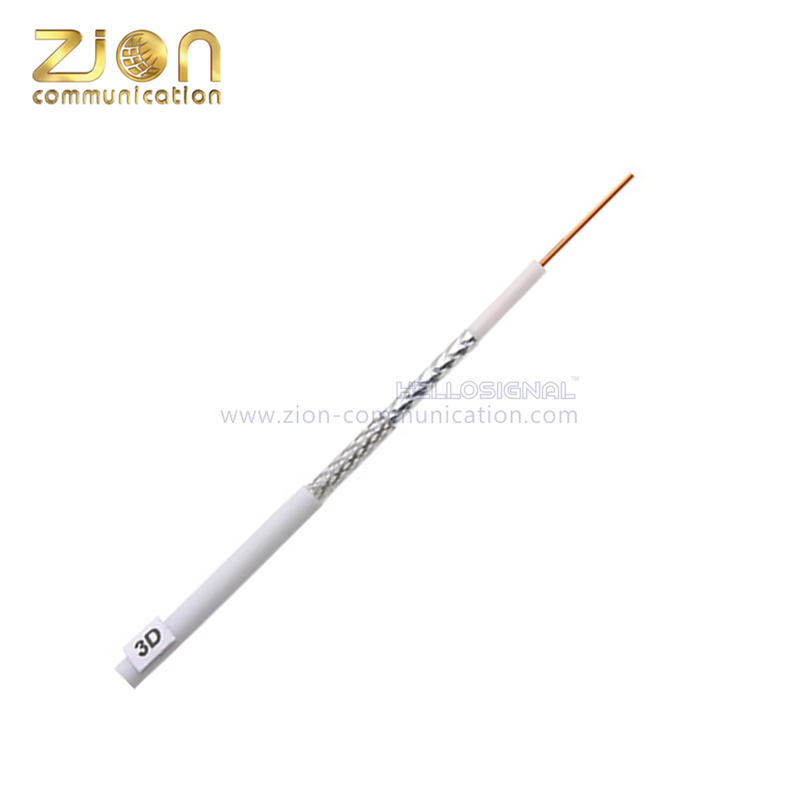

3D-FB BC TC coaxial cable for Communication signal transmission coaxial cable

Basic Information
Place of Origin: China
Brand Name: Zion communication OR OEM
Certification: UL, ETL, CE,CPR, RoHS
Model Number: D-FB Coax Cable
Minimum Order Quantity: 10 KM
Packaging Details: 100M, 300M, Wooden Reel, Carton
Delivery Time: 25 working days
Payment Terms: T/T, L/C
Supply Ability: 1000KM / Month
Detail Information
Inner Conductor: 1.07mm Bare Copper Dielectric: 3.00mm Foamed PE
Shield: Bonded AL-Foil Outer Conductor: Nom. 3.55mm Tinned Copper Braid
Jacket: 5.40mm PE Black

Product Description

3D-FB BC TC PE
NO.7101401

Construction Parameters:
Inner Conductor 1.07mm Bare Copper
Dielectric 3.00mm Foamed PE
Shield Bonded AL-Foil
Outer Conductor Nom. 3.55mm Tinned Copper Braid
Jacket 5.40mm PE Black
Jacket Thickness
Application

Electrical Characteristics:
Capacitance 82 pF/m 3D-FB BC TC coaxial cable for Communication signal transmission coaxial cable 0
Impedance 50 Ω
Velocity of Propagation 81%
Inner Conductor DCR 19.2 Ω/km
Outer Conductor DCR 16.3 Ω/km
Shielding Effectiveness ≥ 80 dB
Return Loss ≥ 20 dB
RoHS Yes


Mechanical and Environmental Properties:
Cable Bend Radius 27mm
Operating Temp Range -40 ℃ to +85℃
Cable Diamensions 5.40mm


Attenuation(20℃):
Frequency (MHZ) Max Attenuation (dB/100m)
150 13.00
280 17.50
350 19.50
400 21.00
800 30.00
900 31.60
1200 37.00
1500 41.50
1900 45.60
2000 48.20
2500 54.10

Order Informations:
Marking HELLOSIGNAL 3D-FB 50 Ohm COAXIAL CABLE×××M
Package Inquired Length on Roll, Wooden Spool, Pallet …
Delivery time Normally 25 days after received the deposit.
Brand HELLOSIGNAL® OR OEM
