| Inner Conductor: | Copper Tube | Dielectric: | Cellular Polyethylene |
|---|---|---|---|
| Outer Conductor: | Copper Foil | Jacket: | Black PE Or Black LSZH |
| Marking: | Brand, Cable Type, Cable ID, Meter Mark |

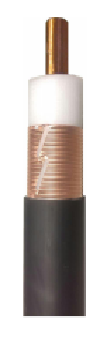

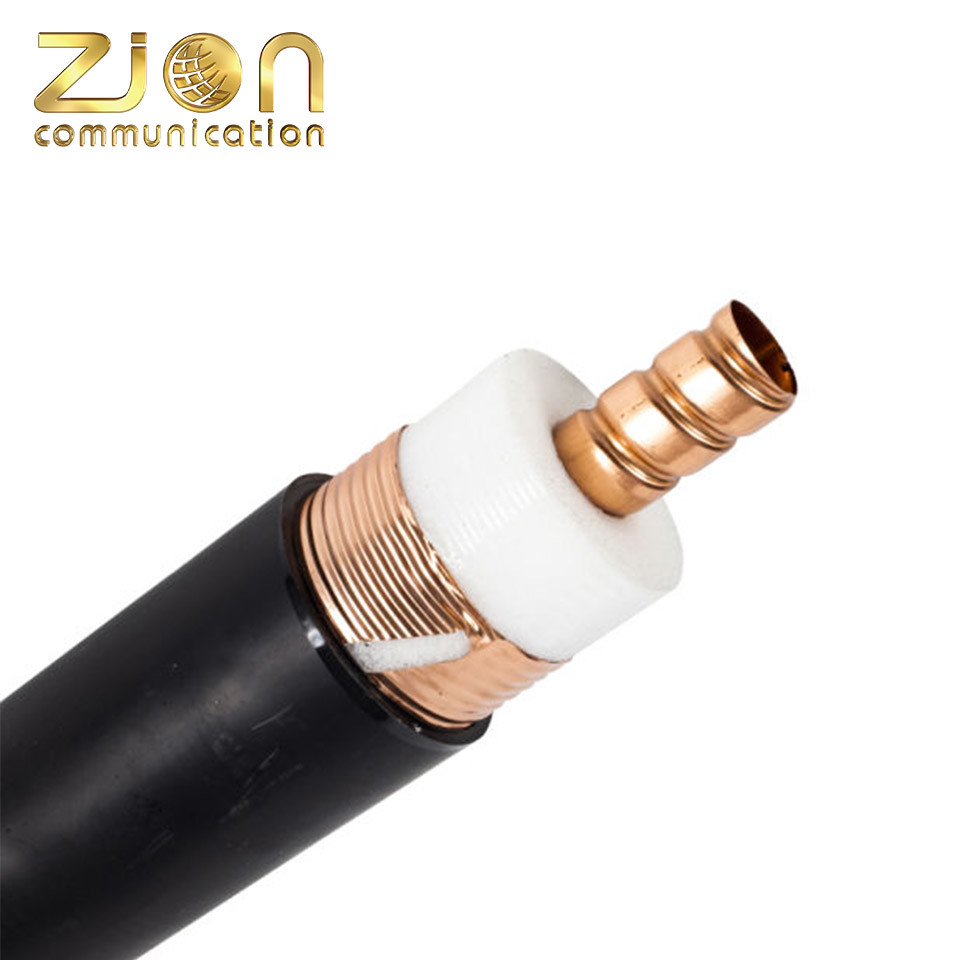

| 1 5/8”Radiating Leaky Cable(H Band) NO.7101136 |
||||||||
| CABLE TYPE: RFXT 1 5/8”-50H(BHF)；HLRHTCY(Z)-50-42H | ||||||||
| Construction | ||||||||
| Inner Conductor | Corrugated copper tube | Ø 17.3±0.3 mm | ||||||
| Dielectric | Cellular polyethylene | Ø 43.0 mm | ||||||
| Outer Conductor | Copper foil | Ø 44.5 mm (Max) | ||||||
| Jacket | Black PE or Black LSZH | Ø 49.0 mm (Max) | ||||||
| Marking | Brand, cable type, cable ID, meter mark | |||||||
Electrical Characteristics at +20℃ |
||||||||
| Characteristic impedance | 50 ± 2 Ω |  |
||||||
| Velocity | 0.88 | |||||||
| Capacitance | 76 pF/m | |||||||
| Insulation Resistantce | >5000 MΩ.km | |||||||
| Insulation Voltage | 15000 V | |||||||
| Jacket Spark Test Voltage | 10000 V | |||||||
| VSWR | ||||||||
| Frequency (MHz) | VSWR (Max) | |||||||
| 790~960 | 1.30 | |||||||
| 1700~1900 | ||||||||
| 1920~2025 | 1.40 | |||||||
| 2110~2200 | ||||||||
| 2300~2500 | ||||||||
| 2560~2620 | ||||||||
| MECHANICAL CHARACTERISTICS | ||||||||
| Weigh | 1000kg/km | |||||||
| Maximum pulling force | 2500N | |||||||
| Minimum bending radius | ||||||||
| Single bending | 500 mm | |||||||
| Repeated bending | 700 mm | |||||||
| Operating temperature range | -40~ +80℃ | |||||||
| Min. installation temperature | -20℃ (PE); -5℃ (LSZH) |
|||||||
| Attenuation and Coupling Loss | ||||||||
| Frequency (MHZ) |
Attenuation dB/100m @20℃ |
Coupling Loss (50%/95%) dB |
||||||
| 700 | 2.3 | 73/78 | ||||||
| 800 | 2.4 | 65/75 | ||||||
| 900 | 2.6 | 65/74 | ||||||
| 960 | 2.7 | 65/69 | ||||||
| 1800 | 4.3 | 62/67 | ||||||
| 1900 | 4.6 | 62/68 | ||||||
| 2000 | 4.9 | 63/66 | ||||||
| 2200 | 5.5 | 62/66 | ||||||
| 2400 | 6.3 | 60/65 | ||||||
| 2600 | 7.3 | 60/63 | ||||||
| 2620 | 8.1 | 61/65 | ||||||
| Note: Coupling Loss tolerance ±5dB | ||||||||
| Order Informations: | ||||||||
| Marking | HELLOSIGNAL 1 5/8”Radiating Leaky Cable(H Band) ××× M | |||||||
| Package | Inquired Length on Wooden Drum and Pallet. | |||||||
| Brand | HELLOSIGNAL® OR OEM | |||||||
