| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | ISO, CE, RoHS, UL |
| Model Number: | Leaky Coaxial Cable |
| Minimum Order Quantity: | 1 KM |
| Packaging Details: | 100M, 300M, Wooden Reel, Carton |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Inner Conductor: | Copper Tube | Dielectric: | Cellular Polyethylene |
|---|---|---|---|
| Outer Conductor: | Copper Foil | Jacket: | Black PE Or Black LSZH |
| Marking: | Brand, Cable Type, Cable ID, Meter Mark |

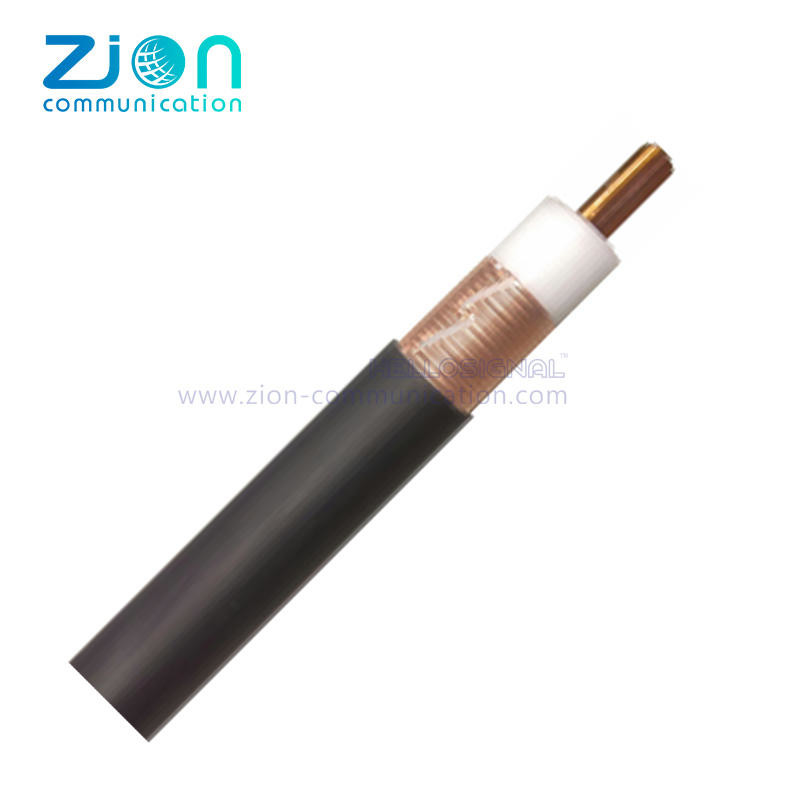

| 1 1/4”Radiating Leaky Cable(H Band) NO.7101134 |
||||||||
| CABLE TYPE: RFXT 1 1/4”-50H(BHF)；HLRCTCY(Z)-50-32H | ||||||||

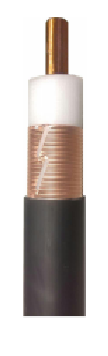

| Construction | ||||||||
| Inner Conductor | copper tube | Ø 13.1 mm | ||||||
| Dielectric | Cellular polyethylene | Ø 33.0 mm | ||||||
| Outer Conductor | Copper foil | Ø 34.0 mm | ||||||
| Jacket | Black PE or Black LSZH | Ø 37.5 mm | ||||||
| Marking | Brand, cable type, cable ID, meter mark | |||||||
Electrical Characteristics at +20℃ |
||||||||
| Characteristic impedance | 50 ± 2 Ω |  |
||||||
| Velocity | 0.88 | |||||||
| Capacitance | 76 pF/m | |||||||
| Insulation Resistantce | >5000 MΩ.km | |||||||
| Insulation Voltage | 10000 V | |||||||
| Jacket Spark Test Voltage | 10000 V | |||||||
| VSWR | ||||||||
| Frequency (MHz) | VSWR (Max) | |||||||
| 790~960 | 1.30 | |||||||
| 1700~1900 | ||||||||
| 1920~2025 | 1.40 | |||||||
| 2110~2200 | ||||||||
| 2300~2500 | ||||||||
| 2560~2620 | ||||||||
| MECHANICAL CHARACTERISTICS | ||||||||
| Weigh | 780kg/km | |||||||
| Maximum pulling force | 2000N | |||||||
| Minimum bending radius | ||||||||
| Single bending | 400 mm | |||||||
| Repeated bending | 500 mm | |||||||
| Operating temperature range | -40~ +80℃ | |||||||
| Min. installation temperature | -20℃ (PE); -5℃ (LSZH) |
|||||||
| Attenuation and Coupling Loss | ||||||||
| Frequency (MHZ) |
Attenuation dB/100m @20℃ |
Coupling Loss (50%/95%) dB |
||||||
| 700 | 2.3 | 76/82 | ||||||
| 800 | 2.7 | 71/78 | ||||||
| 900 | 3.1 | 69/73 | ||||||
| 960 | 3.2 | 65/68 | ||||||
| 1800 | 5.0 | 66/72 | ||||||
| 1900 | 5.6 | 62/68 | ||||||
| 2000 | 5.8 | 67/72 | ||||||
| 2200 | 6.2 | 66/72 | ||||||
| 2400 | 7.8 | 64/71 | ||||||
| 2600 | 8.0 | 69/76 | ||||||
| 2620 | 8.3 | 68/76 | ||||||
| Note: Attenuation tolerance 5%; Coupling Loss tolerance ±5dB | ||||||||
| Order Informations: | ||||||||
| Marking | HELLOSIGNAL 1 1/4”Radiating Leaky Cable(H Band)××× M | |||||||
| Package | Inquired Length on Wooden Drum and Pallet. | |||||||
| Brand | HELLOSIGNAL® OR OEM | |||||||
