Low loss 500 series copper clad aluminium wire with braided super flexible foam diel 50 ohm coax cable

Basic Information

Place of Origin:	China
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	LLC Coax Cable

Minimum Order Quantity:	1 KM
Packaging Details:	100M, 300M, Wooden Reel, Carton
Delivery Time:	25 working days
Payment Terms:	T/T, L/C
Supply Ability:	1000KM / Month

Get Best Price Contact Now

Detail Information

Inner Conductor:	Copper Clad Aluminum	Dielectric:	Foamed PE
Shield:	Bonded Aluminum Polyester Tape	Outer Conductor:	Tinned Copper Braid
Jacket:	PE Black

Product Description

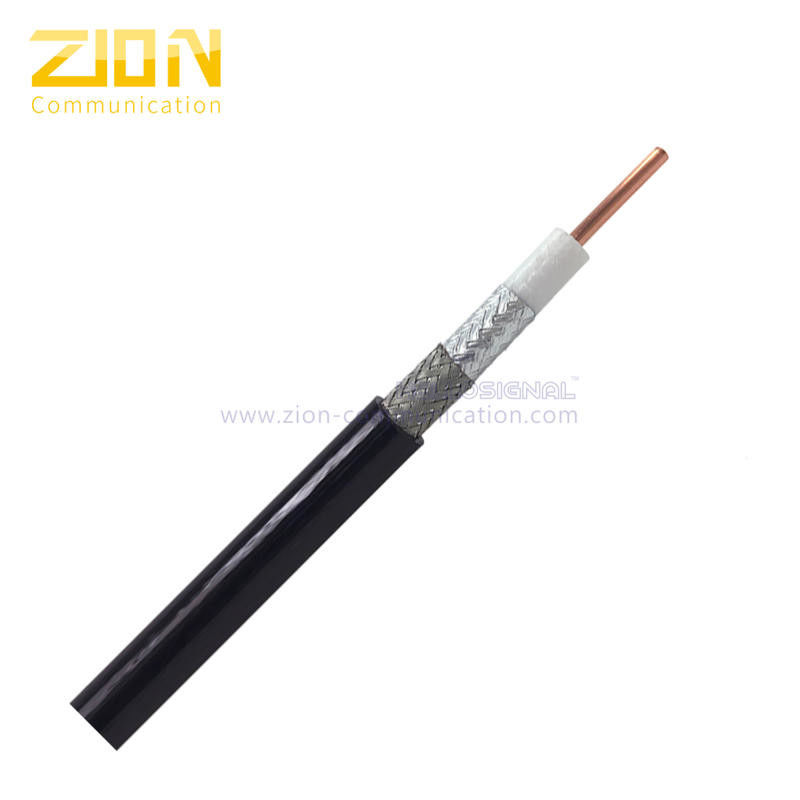

LLC 500 CCA NO.7101008

Construction Parameters:
Inner Conductor	3.61±0.03mm Copper Clad Aluminium Wire
Dielectric	9.40±0.15mm Foamed PE
Shield	Bonded Aluminum polyester tape
Outer Conductor	10.29mm Tinned Copper Braid
Jacket	12.70±0.2mm PE Black
More choice of Jacket	FRPE / PVC / PVC W

Electrical Characteristics:
Capacitance	77.5 pF/m
Impedance	50±2 Ω
Velocity of Propagation	82%
Peak Power Rating	22 KW
Max.Operating Frequency	6 GHz
Insulation Resistantce	>5000 M Ω.km
Shielding Effectiveness	> 90 dB
Inner Conductor DC Resistance	2.7 Ω/km
Outer Conductor DC Resistance	4.2 Ω/km
VSWR ≤ (Return loss≥dB)
30MHz-3000MHz	1.20 (20)

Mechanical and Envrionmental Properties:
Cable Bend Radius	Installation: 31.8mm
	Repeated: 127mm
Compressive flat force
Maximum tension	118 kg
Bending Moment	2.37 N-m
Flat Plate Crush Stength	0.89 kg/mm
Recommended Temperature	Storage:	- 70 ℃ to +85℃
	Installation:	- 40 ℃ to +85℃
	Operating:	- 40 ℃ to +85℃




Cross Section:


Attenuation(20℃):
Frequency (MHZ)	Max Attenuation(dB/100m)		Avg.Power(KW)
30	1.80		4.40
50	2.30		3.39
150	4.00		1.93
220	4.90		1.59
450	7.10		1.09
900	10.30		0.75
1500	13.60		0.57
1800	15.00		0.52
2000	15.90		0.49
2500	18.00		0.43
3000	19.70		0.26
5800	29.10		0.22

Order Informations:
Marking	HELLOSIGNAL LLC 500 CCA 50 Ohm COAXIAL CABLE ×××M
Package	500M/Wooden Drum, 1000M/Wooden Drum
Delivery time	Normally 25 days after received the deposit.
Brand	HELLOSIGNAL® OR OEM
Whatsapp/WeChat	0086 18268009191
Email	info@zion-communication.com
