| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | ISO, CE, RoHS, UL |
| Model Number: | LLC Coax Cable |
| Minimum Order Quantity: | 1 KM |
| Packaging Details: | 100M, 300M, Wooden Reel, Carton |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Inner Conductor: | Copper Clad Aluminum | Dielectric: | Foamed PE |
|---|---|---|---|
| Shield: | Bonded AL Foil | Outer Conductor: | Tinned Copper Braid |
| Jacket: | PE Black |
| LLC 400 CCA NO.7101006 |
||||||||
| Construction Parameters: | ||||||||
| Inner Conductor | 2.74mm Copper Clad Aluminium | |||||||
| Dielectric | 7.25mm Foamed PE | |||||||
| Shield | Bonded AL Foil | |||||||
| Outer Conductor | Nom. 8.13mm Tinned Copper Braid | |||||||
| Jacket | 10.29mm PE Black | |||||||
| Jacket Thickness | ||||||||
| Application | ||||||||
| Electrical Characteristics: |  |
|||||||
| Capacitance | 77.1 pF/m | |||||||
| Impedance | 50 Ω | |||||||
| Velocity of Propagation | 85% | |||||||
| Insulation Resistantce | >5000 M Ω.km | |||||||
| Shielding Effectiveness | > 90 dB | |||||||
| Inner Conductor DC Resistance | 2.92 Ω/km | |||||||
| Outer Conductor DC Resistance | 5.41 Ω/km | |||||||
| VSWR ≤ (Return loss≥dB) | ||||||||
| 5-3000MHz | 1.20 (20) | |||||||
| 800-1000MHz | 1.10 (26) | |||||||
| 1700-2000MHz | 1.15 (23) | |||||||
| 2000-2400MHz | 1.15 (23) | |||||||

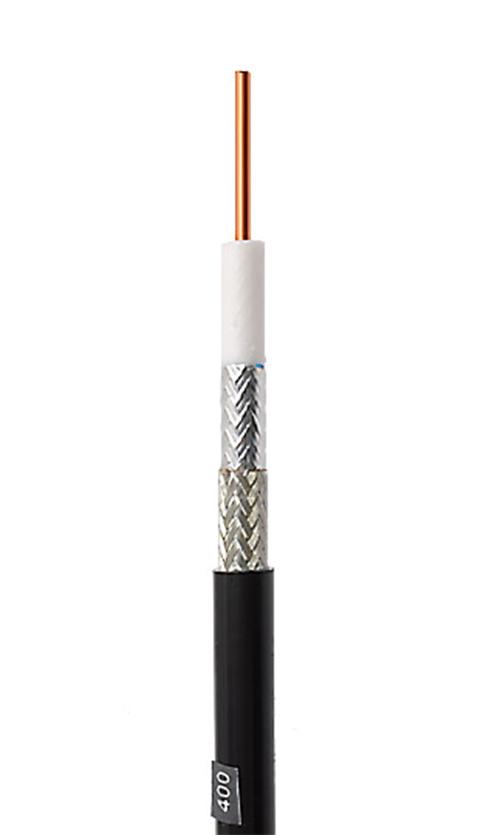

| Cross Section: | ||||||||
 |
||||||||
| Mechanical and Envrionmental Properties: | ||||||||
| Cable Bend Radius | 51mm | |||||||
| Operating Temperature Range | -40 ℃ to +85℃ | |||||||
| Cable Diamensions | 10.29mm | |||||||
| Attenuation(20℃): | ||||||||
| Frequency (MHZ) | Max Attenuation(dB/100m) | Avg.Power(KW) | ||||||
| 30 | 2.20 | 2.91 | ||||||
| 50 | 2.90 | 2.21 | ||||||
| 150 | 5.00 | 1.28 | ||||||
| 220 | 6.10 | 1.05 | ||||||
| 450 | 8.90 | 0.72 | ||||||
| 900 | 12.80 | 0.50 | ||||||
| 1500 | 16.80 | 0.38 | ||||||
| 1800 | 18.60 | 0.34 | ||||||
| 2000 | 19.60 | 0.33 | ||||||
| 2500 | 22.20 | 0.29 | ||||||
| 3000 | 24.80 | 0.26 | ||||||
| 5800 | 35.50 | 0.18 | ||||||
| Order Informations: | ||||||||
| Marking | HELLOSIGNAL LLC 400 50 Ohm COAXIAL CABLE ×××M | |||||||
| Package | Inquired Length on Roll,Wooden Spool,Pallet … | |||||||
| Delivery time | Normally 25 days after received the deposit. | |||||||
| Brand | HELLOSIGNAL® OR OEM | |||||||
