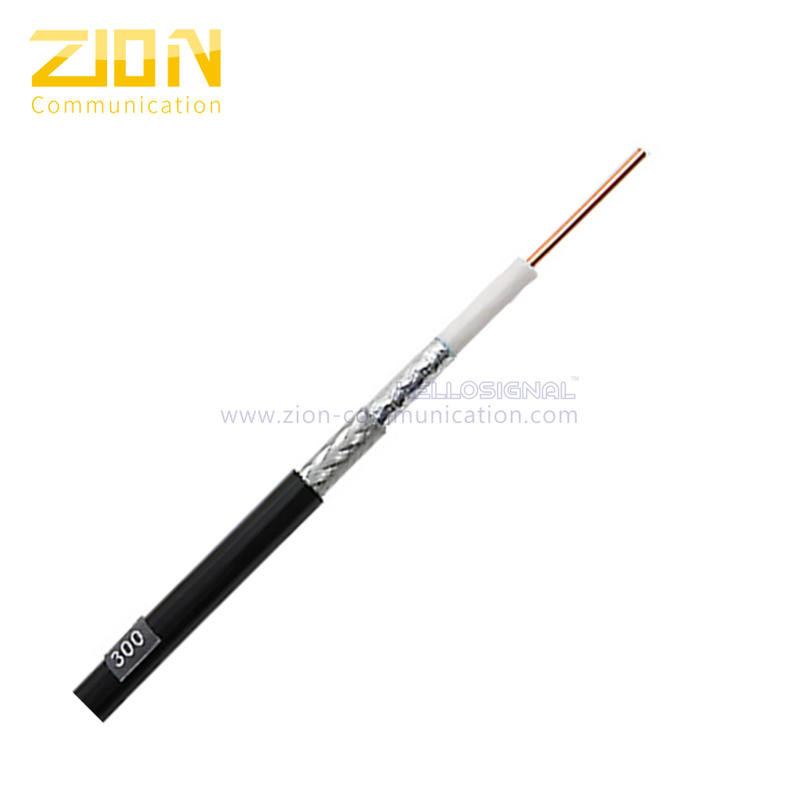

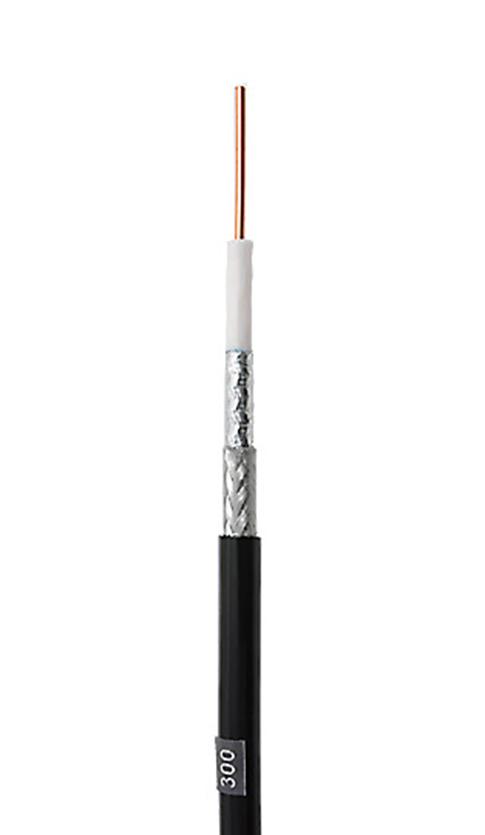

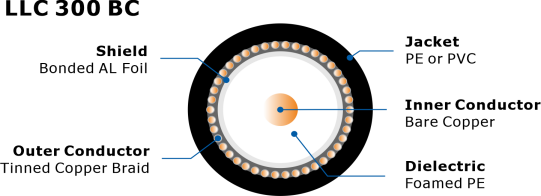

| Inner Conductor: | Bare Copper Wire | Dielectric: | Foamed PE |
|---|---|---|---|
| Shield: | Bonded Aluminum Polyester Tape | Outer Conductor: | Tinned Copper Braid |
| Jacket: | PE Black | More Choice Of Jacket: | FRPE / PVC / PVC W |
| LLC 300 BC NO.7101005 | ||||||||
| Construction Parameters: | ||||||||
| Inner Conductor | 1.78±0.03mm Bare Copper Wire | |||||||
| Dielectric | 4.83±0.15mm Foamed PE | |||||||
| Shield | Bonded Aluminum polyester tape | |||||||
| Outer Conductor | 5.72mm Tinned Copper Braid | |||||||
| Jacket | 7.62±0.2mm PE Black | |||||||
| More choice of Jacket | FRPE / PVC / PVC W | |||||||
| Electrical Characteristics: | ||||||||
| Capacitance | 78.8 pF/m |  |
||||||
| Impedance | 50±2 Ω | |||||||
| Velocity of Propagation | 83% | |||||||
| Peak Power Rating | 10 KW | |||||||
| Max.Operating Frequency | 6 GHz | |||||||
| Insulation Resistantce | >5000 M Ω.km | |||||||
| Shielding Effectiveness | > 90 dB | |||||||
| Inner Conductor DC Resistance | 7.0 Ω/km | |||||||
| Outer Conductor DC Resistance | 7.3 Ω/km | |||||||
| VSWR ≤ (Return loss≥dB) | ||||||||
| 30MHz-3000MHz | 1.20 (20) | |||||||
| Mechanical and Envrionmental Properties: | ||||||||
| Cable Bend Radius | Installation: 22.2mm | |||||||
| Repeated: 76.2mm | ||||||||
| Compressive flat force | ||||||||
| Maximum tension | 54.5 kg | |||||||
| Bending Moment | 0.52 N-m | |||||||
| Flat Plate Crush Stength | 0.54 kg/mm | |||||||
| Recommended Temperature |
Storage: | - 70 ℃ to +85℃ | ||||||
| Installation: | - 40 ℃ to +85℃ | |||||||
| Operating: | - 40 ℃ to +85℃ | |||||||
| Cross Section: | ||||||||
 |
||||||||
| Attenuation(20℃): | ||||||||
| Frequency (MHZ) | Max Attenuation(dB/100m) | Avg.Power(KW) | ||||||
| 30 | 3.50 | 2.09 | ||||||
| 50 | 4.50 | 1.62 | ||||||
| 150 | 7.90 | 0.92 | ||||||
| 220 | 9.60 | 0.76 | ||||||
| 450 | 13.80 | 0.52 | ||||||
| 900 | 19.90 | 0.36 | ||||||
| 1500 | 26.00 | 0.28 | ||||||
| 1800 | 28.70 | 0.25 | ||||||
| 2000 | 30.30 | 0.24 | ||||||
| 2500 | 34.20 | 0.21 | ||||||
| 3000 | 37.50 | 0.13 | ||||||
| 5800 | 54.30 | 0.11 | ||||||
| Order Informations: | ||||||||
| Marking | HELLOSIGNAL LLC 300 50 Ohm COAXIAL CABLE ×××M | |||||||
| Package | 500M/Wooden Drum, 1000M/Wooden Drum | |||||||
| Delivery time | Normally 25 days after received the deposit. | |||||||
| Brand | HELLOSIGNAL® OR OEM | |||||||
