| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | ISO, CE, RoHS, UL |
| Model Number: | RF Corrugated Coax Cable |
| Minimum Order Quantity: | 1 KM |
| Packaging Details: | 100M, 300M, Wooden Reel, Carton |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Inner Conductor: | Smooth Copper Tube | Insulation: | Foamed PE |
|---|---|---|---|
| Outer Conductor: | Annular Corrugated Aluminum Tube | Jacket: | PE, Black |
| Peak Power Rating: | 205 KW | Peak Voltage: | 4.3 KV |

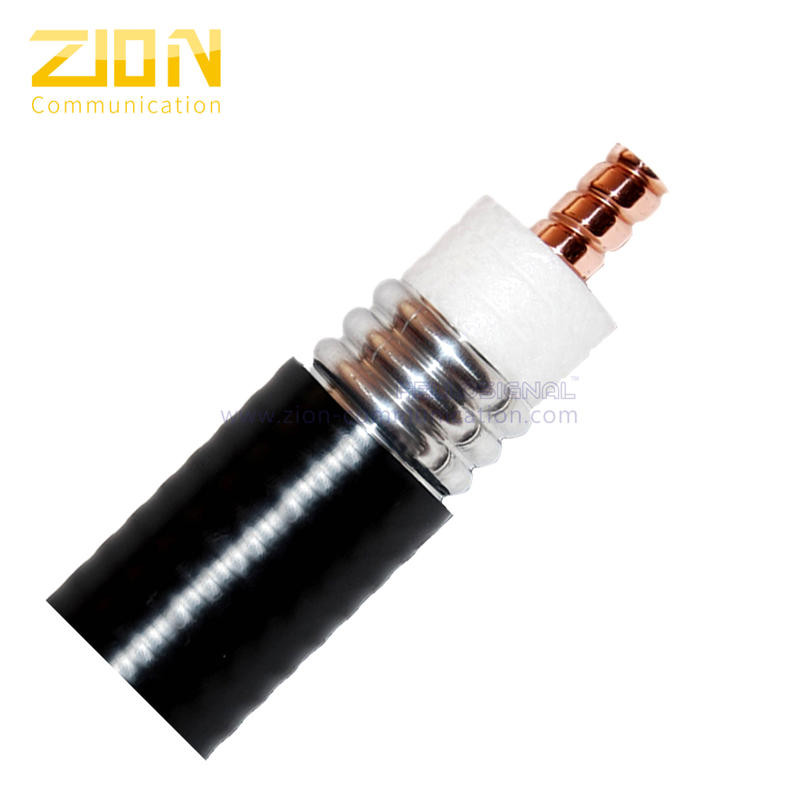

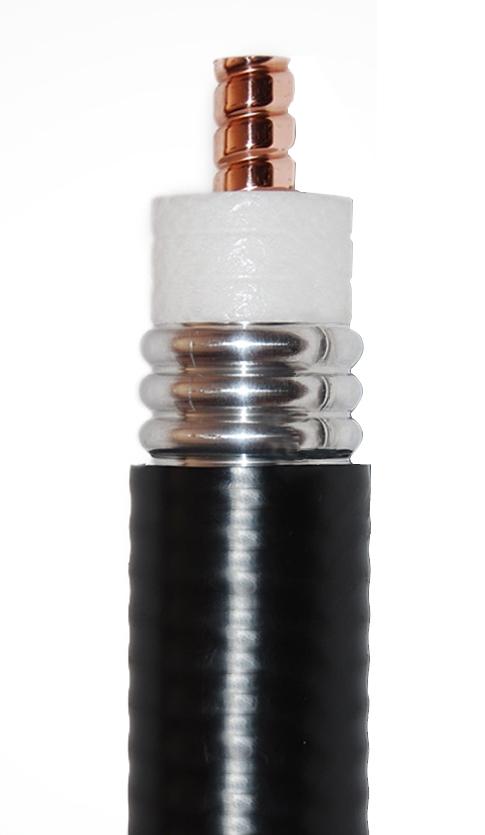

| 1-5/8" AL RF Corrugated 50 ohm coaxial cable NO.7101115 |
||
| Construction Parameters: | ||
| Inner Conductor | 17.30±0.15mm Corrugated Copper Tube | |
| Insulation | 42.50±0.30mm Foamed PE | |
| Outer Conductor | 46.50±0.20mm Annular Corrugated Aluminum Tube | |
| Jacket | 49.50±0.30mm PE, Black | |
| Jacket Thickness | ＞1.30mm | |
| Application | ||
Electrical Characteristics: |
||
| Capacitance | 75 pF/m |  |
| Impedance | 50 Ω | |
| Velocity of Propagation | 0.88 | |
| Peak Power Rating | 310 KW | |
| Peak Voltage | 3.1 KV | |
| Insulation Resistantce | >10000 MΩ.km | |
| Insulation Voltage | 15 KV | |
| Inner Conductor DC Resistance | 1.50 Ω/km | |
| Outer Conductor DC Resistance | 0.52 Ω/km | |
| VSWR | ||
| 800MHz-1000MHz | 1.15 | |
| 1700MHz-2200MHz | 1.2 | |
| 2200MHz-2500MHz | 1.2 | |
| Mechanical and Envrionmental Properties: | ||
| Bending Radius (Single Bend) | 300 mm | |
| Bending Radius (Repeated Bend) | 510 mm | |
| Operating Temp Range | -55 to +85 ℃ | |
| Cable Diamensions | 49.50±0.30mm | |
| Attenuation(20℃): | ||
| Frequency (MHZ) | Attenuation (dB/100m) | Average Power(KW) |
| 200 | 1.05 | 11.80 |
| 450 | 1.59 | 7.46 |
| 800 | 2.29 | 5.33 |
| 900 | 2.39 | 4.97 |
| 1000 | 2.58 | 4.69 |
| 1500 | 3.22 | 4.97 |
| 1800 | 3.73 | 3.27 |
| 2000 | 3.97 | 3.05 |
| 2200 | 4.27 | 2.87 |
| 2500 | 4.62 | 2.37 |
| Order Informations: | ||
| Marking | HELLOSIGNAL 1 5/8" AL RF COAXIAL CABLE ××× M | |
| Package | Inquired Length on Wooden Drum | |
| Delivery time | Normally 25 days after received the deposit. | |
| Brand | HELLOSIGNAL® OR OEM | |
