| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | ISO, CE, RoHS, UL |
| Model Number: | RF Corrugated Coax Cable |
| Minimum Order Quantity: | 1 KM |
| Packaging Details: | 100M, 300M, Wooden Reel, Carton |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Inner Conductor: | Copper Clad Aluminum Wire | Insulation: | Foamed PE |
|---|---|---|---|
| Outer Conductor: | Annular Corrugated Copper Tube | Jacket: | PE, Black |
| Peak Power Rating: | 40 KW | Max. Operating Frequency: | 5.2 GHz |

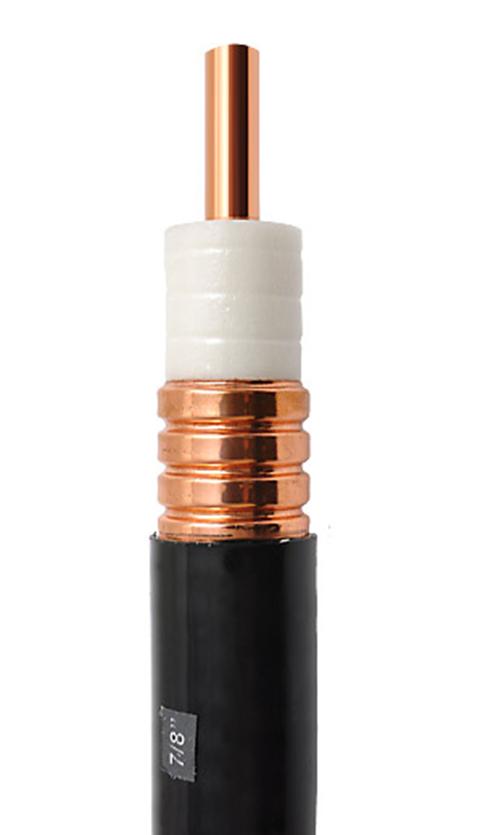

| 7/8" Low Loss RF Corrugated 50 ohm coaxial cable NO.7101109 |
||||||||
| Construction Parameters: | ||||||||
| Inner Conductor | 9.45±0.10mm Smooth Copper Tube | |||||||
| Insulation | 22.50±0.20mm Foamed PE | |||||||
| Outer Conductor | 25.40±0.20mm Annular Corrugated Copper Tube | |||||||
| Jacket | 27.50±0.20mm PE, Black | |||||||
| Jacket Thickness | ＞1.10mm | |||||||
| Application | ||||||||
Electrical Characteristics: |
||||||||
| Capacitance | 75 pF/m |  |
||||||
| Impedance | 50 Ω | |||||||
| Velocity of Propagation | 0.88 | |||||||
| Peak Power Rating | 90 KW | |||||||
| Peak Voltage | 3.0 KV | |||||||
| Insulation Resistantce | >10000 MΩ.km | |||||||
| Insulation Voltage | 10 KV | |||||||
| Inner Conductor DC Resistance | 1.90 Ω/km | |||||||
| Outer Conductor DC Resistance | 1.60 Ω/km | |||||||
| VSWR | ||||||||
| 800MHz-1000MHz | 1.13 | |||||||
| 1700MHz-2500MHz | 1.15 | |||||||
| 2500MHz-3000MHz | 1.15 | |||||||
| Mechanical and Envrionmental Properties: | ||||||||
| Bending Radius (Single Bend) | 150 mm | |||||||
| Bending Radius (Repeated Bend) | 275 mm | |||||||
| Operating Temp Range | -55 to +85 ℃ | |||||||
| Cable diamensions | 27.50±0.20mm | |||||||
| Attenuation(20℃): | ||||||||
| Frequency (MHZ) | Attenuation (dB/100m) | Average Power (KW) | ||||||
| 200 | 1.60 | 6.41 | ||||||
| 300 | 2.49 | 3.82 | ||||||
| 450 | 3.45 | 2.76 | ||||||
| 800 | 3.62 | 2.62 | ||||||
| 900 | 3.85 | 2.19 | ||||||
| 1000 | 4.84 | 1.76 | ||||||
| 1500 | 5.43 | 1.79 | ||||||
| 1800 | 5.85 | 1.7 | ||||||
| 2000 | 6.14 | 1.60 | ||||||
| 2400 | 6.6 | 1.47 | ||||||
| 3000 | 7.30 | 1.21 | ||||||
| Order Informations: | ||||||||
| Marking | HELLOSIGNAL 7-8" LOW LOSS RF COAXIAL CABLE ××× M | |||||||
| Package | Inquired Length on Wooden Drum and Pallet. | |||||||
| Delivery time | Normally 25 days after received the deposit. | |||||||
| Brand | HELLOSIGNAL® OR OEM | |||||||
