| Inner Conductor: | Smooth Copper Tube | Insulation: | Foamed PE |
|---|---|---|---|
| Outer Conductor: | Annular Corrugated Aluminum Tube | Jacket: | PE, Black |
| Peak Power Rating: | 40 KW | Max. Operating Frequency: | 5.2 GHz |

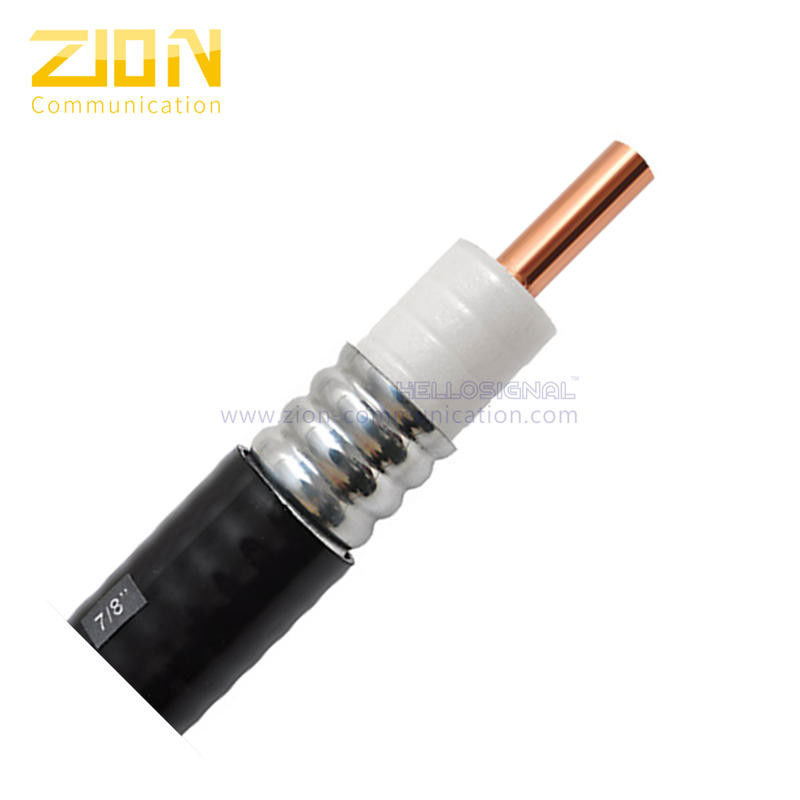

| 7/8"AL RF Corrugated 50 ohm coaxial cable NO.7101110 |
||||||||
| Construction Parameters: | ||||||||
| Inner Conductor | 9.00±0.10mm Smooth Copper Tube | |||||||
| Insulation | 22.50±0.20mm Foamed PE | |||||||
| Outer Conductor | 25.40±0.20mm Annular Corrugated Aluminum Tube | |||||||
| Jacket | 27.50±0.20mm PE, Black | |||||||
| Jacket Thickness | ＞1.10mm | |||||||
| Application | ||||||||
Electrical Characteristics: |
||||||||
| Capacitance | 73 pF/m |  |
||||||
| Impedance | 50 Ω | |||||||
| Velocity of Propagation | 0.91 | |||||||
| Peak Power Rating | 91 KW | |||||||
| Peak Voltage | 3.2 KV | |||||||
| Insulation Resistantce | >10000 MΩ.km | |||||||
| Insulation Voltage | 8 KV | |||||||
| Inner Conductor DC Resistance | 1.90 Ω/km | |||||||
| Outer Conductor DC Resistance | 1.60 Ω/km | |||||||
| VSWR | ||||||||
| 800MHz-1000MHz | 1.15 | |||||||
| 1700MHz-2500MHz | 1.15 | |||||||
| 2500MHz-3000MHz | 1.15 | |||||||
| Mechanical and Envrionmental Properties: | ||||||||
| Bending Radius (Single Bend) | 120 mm | |||||||
| Bending Radius (Repeated Bend) | 250 mm | |||||||
| Operating Temp Range | -55 to +85 ℃ | |||||||
| Cable Diamensions | 27.50±0.20mm | |||||||
| Attenuation(20℃): | ||||||||
| Frequency (MHZ) | Attenuation (dB/100m) | Average Power (KW) | ||||||
| 200 | 1.75 | 4.83 | ||||||
| 450 | 2.71 | 2.88 | ||||||
| 800 | 3.68 | 2.09 | ||||||
| 900 | 3.89 | 1.98 | ||||||
| 1000 | 4.16 | 1.92 | ||||||
| 1500 | 5.19 | 1.55 | ||||||
| 1800 | 5.83 | 1.35 | ||||||
| 2000 | 6.09 | 1.3 | ||||||
| 2200 | 6.47 | 1.26 | ||||||
| 2500 | 6.89 | 1.2 | ||||||
| 3000 | 7.75 | 1.08 | ||||||
| Order Informations: | ||||||||
| Marking | HELLOSIGNAL 7-8" AL RF COAXIAL CABLE ××× M | |||||||
| Package | Inquired Length on Wooden Drum and Pallet. | |||||||
| Delivery time | Normally 25 days after received the deposit. | |||||||
| Brand | HELLOSIGNAL® OR OEM | |||||||
