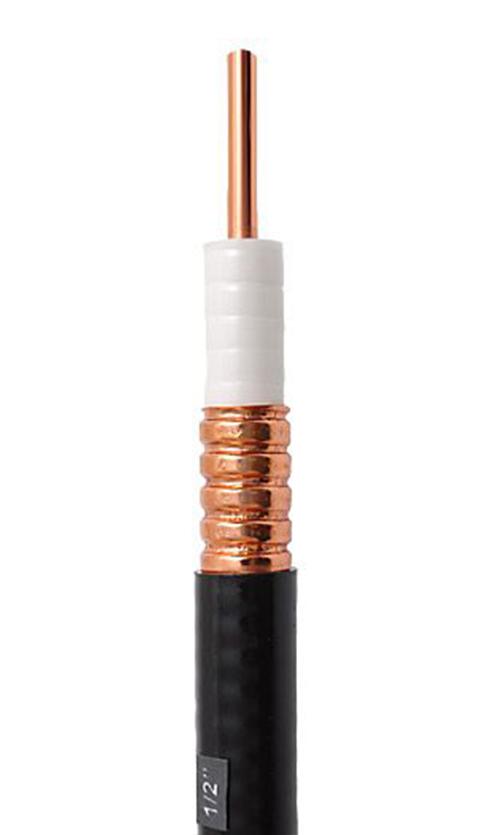

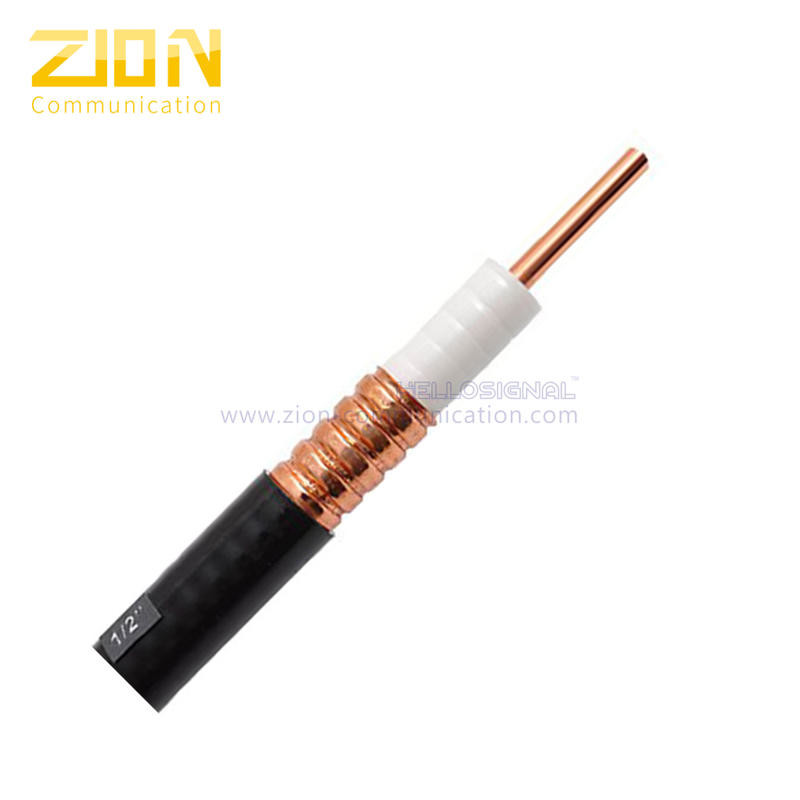

1/2" RF Coaxial Cable Inner Conductor Copper Clad Aluminum Wire Annular Corrugated Copper Tube Coaxial Cable

Basic Information

Place of Origin:	China
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	RF Corrugated Coax Cable

Minimum Order Quantity:	1 KM
Packaging Details:	100M, 300M, Wooden Reel, Carton
Delivery Time:	25 working days
Payment Terms:	T/T, L/C
Supply Ability:	1000KM / Month

Get Best Price Contact Now

Detail Information

Inner Conductor:	Copper Clad Aluminum Wire	Insulation:	Foamed PE
Outer Conductor:	Annular Corrugated Copper Tube	Jacket:	PE, Black
Peak Power Rating:	40 KW	Max. Operating Frequency:	8.8 GHz

Product Description

1/2" RF Coaxial Cable NO.7101106

Construction Parameters:
Inner Conductor	4.80±0.05mm Copper Clad Aluminum Wire
Insulation	12.00±0.20mm Foamed PE
Outer Conductor	13.80±0.15mm Annular Corrugated Copper Tube
Jacket	15.70±0.20mm PE, Black
Jacket Thickness	＞0.80mm

Electrical Characteristics:
Capacitance	76 pF/m
Impedance	50 ±2 Ω
Velocity of Propagation	87%
Peak Power Rating	40 KW
Max. Operating Frequency	8.8 GHz
Insulation Resistantce	>10000 MΩ.km
DC Breakdown Voltage	6000 V
Jacket Spark Test Voltage	8000 Vrms
Inner Conductor DC Resistance	1.62 Ω/km
Outer Conductor DC Resistance	4.30 Ω/km
Shielding Attenuation	≥120dB
VSWR
800MHz-1000MHz	≤ 1.13
1700MHz-2700MHz	≤ 1.15
2700MHz-4000MHz	≤ 1.20
4000MHz -5000MHz	≤ 1.20
PIM
Intermodulation (3rd order,2*20W)	≤ - 160 dBc



Mechanical Properties:
Bending Radius (Single Bend)	55 mm
Bending Radius (Repeated Bend)	130 mm
Bending moment	6.5 Nm
Flat plate crush strength	8 N/mm
Tensile Strength	950 N

Mechanical Properties:
	PE Jacket	LSZH Jacket
Installation Temperature	-40℃ to +60 ℃	-20℃ to+60 ℃
Operating Temperature	-55℃ to +85 ℃	-30℃ to +80 ℃
Storage Temperature	-70℃ to +85 ℃	-30℃ to +80 ℃

Attenuation(20℃):
Frequency (MHZ)	Attenuation (dB/100m)	Average Power (KW)
200	3.18	2.41
450	4.88	1.57
800	6.64	1.16
900	7.08	1.09
1800	10.35	0.75
2000	10.98	0.70
2200	11.58	0.67
2500	12.44	0.62
2700	13.02	0.59
3000	13.80	0.56
3500	15.15	0.51
4000	16.40	0.47
5000	18.62	0.42
6000	20.70	0.37

Maximum attenuation value shall be 105% of the nominal attenuation value

Standards and Order Informations:
Fire Resistant	IEC 60754-1,-2; IEC 60332-1,-2; IEC 61034-1,-2; IEC 60332-3-24
RoHS	Compliant RoHS 2011/65/EU
Delivery time	Normally 25 days after received the deposit.
Marking	HELLOSIGNAL 1/2" RF COAXIAL CABLE ××× M
