| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | ISO, CE, RoHS, UL |
| Model Number: | RF Corrugated Coax Cable |
| Minimum Order Quantity: | 1 KM |
| Packaging Details: | 100M, 300M, Wooden Reel, Carton |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Inner Conductor: | Copper Clad Aluminum Wire | Insulation: | Foamed PE |
|---|---|---|---|
| Outer Conductor: | Annular Corrugated Copper Tube | Jacket: | PE, Black |
| Impedance: | 50 Ω | Insulation Voltage: | 2.5 KV |

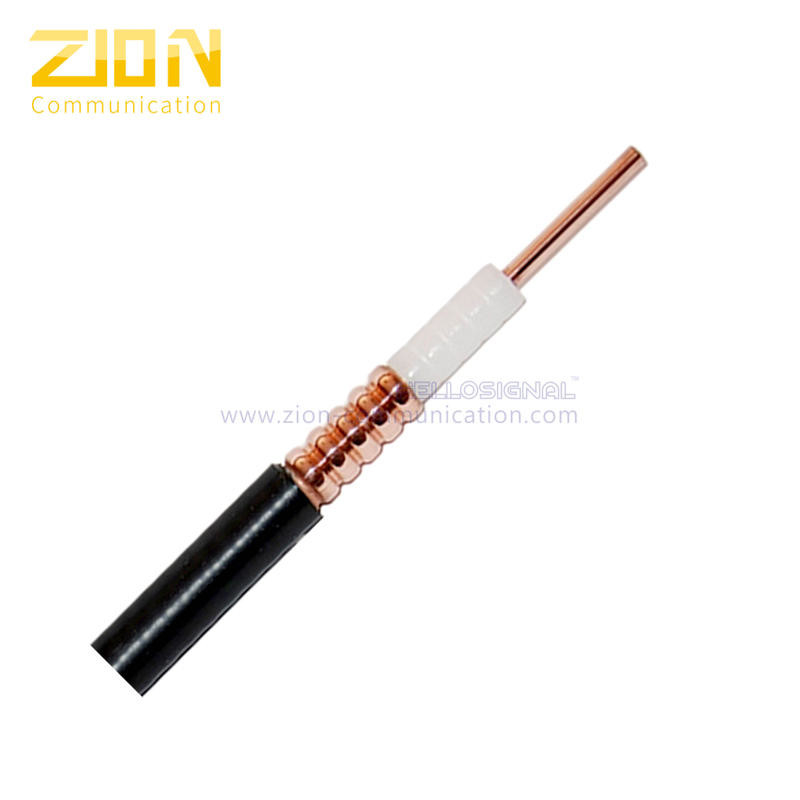

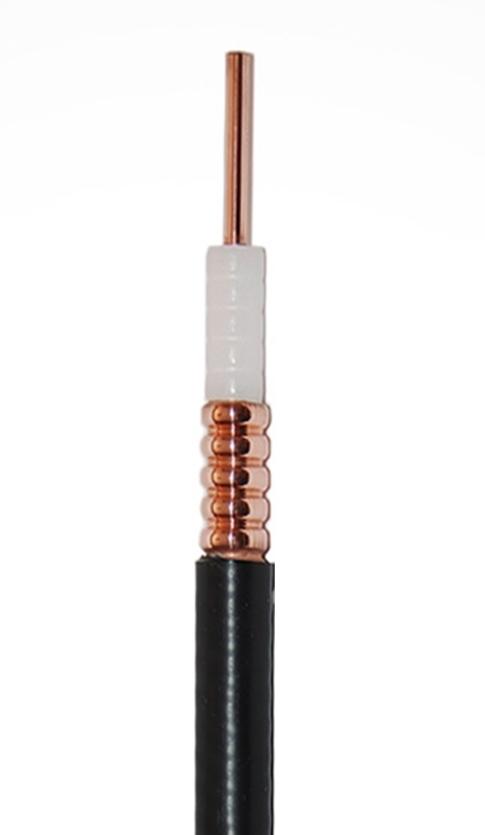

| 3/8" Annular Corrugated Copper Tube RF 50 ohm coaxial cable NO.7101104 |
||
| Construction Parameters: | ||
| Inner Conductor | 3.30±0.05mm Copper Clad Aluminum Wire | |
| Insulation | 8.30±0.20mm Foamed PE | |
| Outer Conductor | 9.60±0.15mm Annular Corrugated Copper Tube | |
| Jacket | 11.20±0.20mm PE, Black | |
| Jacket Thickness | ＞0.80mm | |
| Application | ||
Electrical Characteristics: |
||
| Capacitance | 76 pF/m |  |
| Impedance | 50 Ω | |
| Velocity of Propagation | 0.88 | |
| Peak Power Rating | 15.6 KW | |
| Peak Voltage | 1.05 KV | |
| Insulation Resistantce | >5000 MΩ.km | |
| Insulation Voltage | 2.5 KV | |
| Inner Conductor DC Resistance | 3.10 Ω/km | |
| Outer Conductor DC Resistance | 2.80 Ω/km | |
| VSWR | ||
| 800MHz-1000MHz | 1.1 | |
| 1700MHz-2500MHz | 1.1 | |
| 2500MHz-3000MHz | 1.15 | |
| Mechanical and Envrionmental Properties: | ||
| Bending Radius (Single Bend) | 40 mm | |
| Bending Radius (Repeated Bend) | 95 mm | |
| Operating Temp Range | -55 to +85 ℃ | |
| Cable Diamensions | 11.20±0.20mm | |
| Attenuation(20℃): | ||
| Frequency (MHZ) | Attenuation (dB/100m) | Average Power (KW) |
| 100 | 3.12 | 2.23 |
| 200 | 4.45 | 1.56 |
| 450 | 6.79 | 1.02 |
| 800 | 9.2 | 0.75 |
| 900 | 9.80 | 0.71 |
| 1000 | 10.37 | 0.67 |
| 1500 | 12.90 | 0.53 |
| 1800 | 14.25 | 0.48 |
| 2000 | 15.10 | 0.46 |
| 3000 | 18.9 | 0.37 |
| Order Informations: | ||
| Marking | HELLOSIGNAL 3/8" RF COAXIAL CABLE ××× M | |
| Package | Inquired Length on Wooden Drum and Pallet. | |
| Delivery time | Normally 25 days after received the deposit. | |
| Brand | HELLOSIGNAL® OR OEM | |
