| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication |
| Model Number: | CAT.6 U/UTP RJ45 |
| Minimum Order Quantity: | 20pcs |
| Packaging Details: | 10 PC / Plastic Bag |
| Delivery Time: | Normally 25 days after received the deposit. |
| Payment Terms: | T/T |
| Supply Ability: | no limit |
| Conductor: | Stranded Bare Copper | Pairs: | 4 Pairs |
|---|---|---|---|
| Lnsulation: | HDPE | Out Jacket: | LSZH OR PVC |
| High Light: | 7241004 RJ45 Patch Cord,HDPE Insulation RJ45 Patch Cord,U/UTP Rj45 Cat6 Cable |
||
| Description | Material | Type | |||||
| Plug | Polycarbonate | RJ45 | |||||
| Boot | LSZH OR PVC | Snagless | |||||
| Front Connection | Phosphor Bronze with 50u inch Gold over Nickel Plating | Blades | |||||
| Durability | 750 Mating Cycles min. | ||||||
| VERSION | CLASS | MAX. OPERATING FREQUENCY | SHIELDING TYPE | PLUG CONNECTOR | USED FOR | NOTE | NORMAL |
| Cat 6 | G (I) | 250MHz | U/UTP | RJ45 | 10GBase-T (Lengths of 55m) |
Faster server interconnection. Connections in data centres. |
ISO/IEC TR 11801-99-1 |

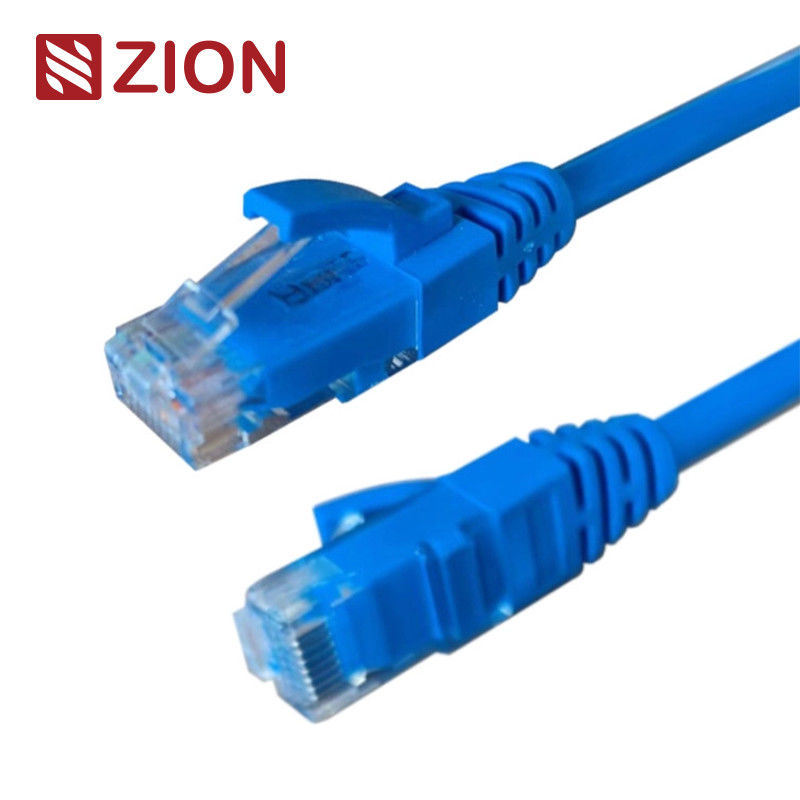

CAT 6 U/UTP 24AWG Copper Conductor RJ45 Patch Cord
Conductor: 7/0.2mm Copper; Cable OD:6.0±0.2mm; Max Length based on 10Gbps: up to 55meter.
| Zion Code | Description | ||||||
| U61CO05MBL | CAT 6 U/UTP 24AWG Copper RJ45 Patch Cord,LSZH,Blue, 0.5m | ||||||
| U61CO1MBL | CAT 6 U/UTP 24AWG Copper RJ45 Patch Cord,LSZH,Blue, 1m | ||||||
| U61CO2MBL | CAT 6 U/UTP 24AWG Copper RJ45 Patch Cord,LSZH,Blue, 2m | ||||||
| U61CO3MBL | CAT 6 U/UTP 24AWG Copper RJ45 Patch Cord,LSZH,Blue, 3m | ||||||
| U61CO5MBL | CAT 6 U/UTP 24AWG Copper RJ45 Patch Cord,LSZH,Blue, 5m | ||||||
| U61CO7MBL | CAT 6 U/UTP 24AWG Copper RJ45 Patch Cord,LSZH,Blue, 7m | ||||||
| U61CO10MBL | CAT 6 U/UTP 24AWG Copper RJ45 Patch Cord,LSZH,Blue, 10m | ||||||
| U61CO15MBL | CAT 6 U/UTP 24AWG Copper RJ45 Patch Cord,LSZH,Blue, 15m | ||||||
| …… | …… | ||||||
| U61CO55MBL | CAT 6 U/UTP 24AWG Copper RJ45 Patch Cord,LSZH,Blue, 55m | ||||||
CAT 6 U/UTP 26AWG Copper Conductor RJ45 Patch Cord
Conductor: 7/0.16mm Copper; Cable OD:5.4±0.2mm;
| Zion Code | Description | ||||||
| U62CO05MBL | CAT 6 U/UTP 26AWG Copper RJ45 Patch Cord,LSZH,Blue, 0.5m | ||||||
| U62CO1MBL | CAT 6 U/UTP 26AWG Copper RJ45 Patch Cord,LSZH,Blue, 1m | ||||||
| U62CO2MBL | CAT 6 U/UTP 26AWG Copper RJ45 Patch Cord,LSZH,Blue, 2m | ||||||
| U62CO3MBL | CAT 6 U/UTP 26AWG Copper RJ45 Patch Cord,LSZH,Blue, 3m | ||||||
| U62CO5MBL | CAT 6 U/UTP 26AWG Copper RJ45 Patch Cord,LSZH,Blue, 5m | ||||||
| U62CO7MBL | CAT 6 U/UTP 26AWG Copper RJ45 Patch Cord,LSZH,Blue, 7m | ||||||
| …… | …… | ||||||
| U62CO35MBL | CAT 6 U/UTP 26AWG Copper RJ45 Patch Cord,LSZH,Blue, 35m | ||||||
CAT 6 U/UTP 28AWG Copper Conductor RJ45 Patch Cord
Conductor: 7/0.127mm Copper; Cable OD:5.0±0.2mm;
| Zion Code | Description | ||||||
| U63CO05MBL | CAT 6 U/UTP 28AWG Copper RJ45 Patch Cord,LSZH,Blue, 0.5m | ||||||
| U63CO1MBL | CAT 6 U/UTP 28AWG Copper RJ45 Patch Cord,LSZH,Blue, 1m | ||||||
| U63CO2MBL | CAT 6 U/UTP 28AWG Copper RJ45 Patch Cord,LSZH,Blue, 2m | ||||||
| U63CO3MBL | CAT 6 U/UTP 28AWG Copper RJ45 Patch Cord,LSZH,Blue, 3m | ||||||
| U63CO5MBL | CAT 6 U/UTP 28AWG Copper RJ45 Patch Cord,LSZH,Blue, 5m | ||||||
| U63CO7MBL | CAT 6 U/UTP 28AWG Copper RJ45 Patch Cord,LSZH,Blue, 7m | ||||||
| …… | …… | ||||||
| U63CO35MBL | CAT 6 U/UTP 28AWG Copper RJ45 Patch Cord,LSZH,Blue, 35m | ||||||
| ZION Communication has rich expiriences in producing OEM/ODM cases becaused of Profession R & D team. | |||||||
| • Customized Logo on Plug & Boot | |||||||
| • Printing on Cable | |||||||
| • Label/PE bag/Carton design | |||||||
| • Different Color & Different Lengths Available | |||||||
| • Different Molding/Strain Relief |
