| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication |
| Model Number: | CAT.6 UTP RJ45 |
| Minimum Order Quantity: | 20pcs |
| Packaging Details: | 10 PC / Plastic Bag |
| Delivery Time: | Normally 25 days after received the deposit. |
| Payment Terms: | T/T |
| Supply Ability: | no limit |
| Conductor: | Stranded Bare Copper | Pairs: | 4 Pairs |
|---|---|---|---|
| Lnsulation: | HDPE | Out Jacket: | LSZH OR PVC |
| High Light: | 7241009 CAT6 Cable,UTP RJ45 CAT6 Cable,FLAT CAT6 RJ45 Patch Cord |
||
| Description | Material | Type | |||||
| Plug | Polycarbonate | RJ45 | |||||
| Boot | LSZH OR PVC | Snagless | |||||
| Front Connection | Phosphor Bronze with 50u inch Gold over Nickel Plating | Blades | |||||
| Durability | 750 Mating Cycles min. | ||||||
| VERSION | CLASS | MAX. OPERATING FREQUENCY | SHIELDING TYPE | PLUG CONNECTOR | USED FOR | NOTE | NORMAL |
| FLAT Cat 6 |
G (I) | 250MHz | UTP | RJ45 | Lengths of 55m | Faster server interconnection. Connections in data centres. |
ISO/IEC TR 11801-99-1 |

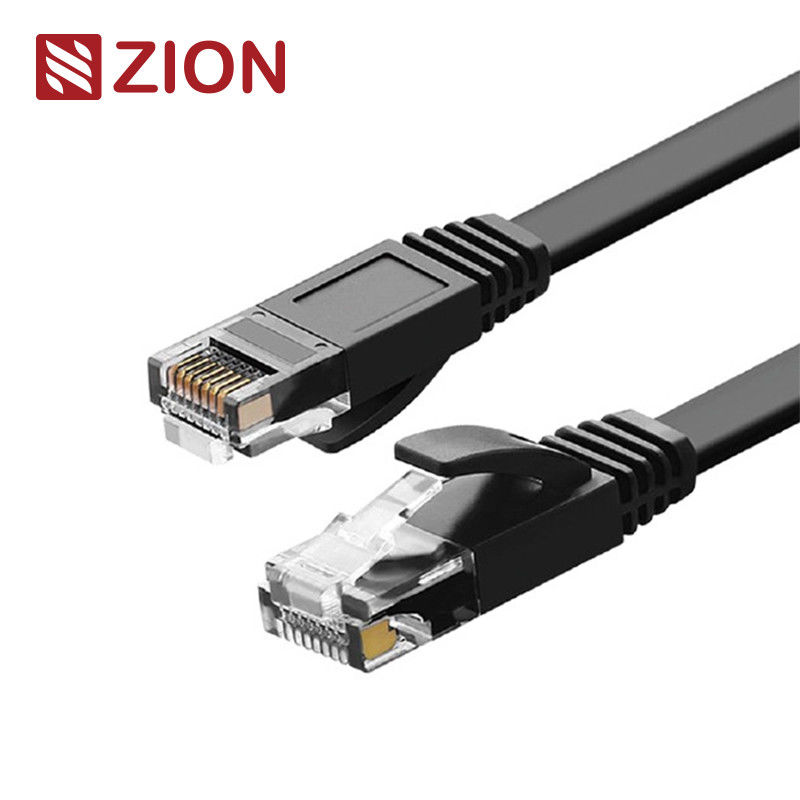

| FLAT CAT 6 UTP 30AWG Copper Conductor RJ45 Patch Cord | |||||||
| Conductor: 7/0.1mm Copper; Cable OD:6.0×1.6mm; Max Length based on 10Gbps: up to 50meter. | |||||||
| Zion Code | Description | ||||||
| U6F4CO05MBK | FLAT CAT 6 UTP 30AWG Copper RJ45 Patch Cord,LSZH,Black, 0.5m | ||||||
| U6F4CO1MBK | FLAT CAT 6 UTP 30AWG Copper RJ45 Patch Cord,LSZH,Black, 1m | ||||||
| U6F4CO2MBK | FLAT CAT 6 UTP 30AWG Copper RJ45 Patch Cord,LSZH,Black, 2m | ||||||
| U6F4CO3MBK | FLAT CAT 6 UTP 30AWG Copper RJ45 Patch Cord,LSZH,Black, 3m | ||||||
| U6F4CO5MBK | FLAT CAT 6 UTP 30AWG Copper RJ45 Patch Cord,LSZH,Black, 5m | ||||||
| U6F4CO7MBK | FLAT CAT 6 UTP 30AWG Copper RJ45 Patch Cord,LSZH,Black, 7m | ||||||
| U6F4CO10MBK | FLAT CAT 6 UTP 30AWG Copper RJ45 Patch Cord,LSZH,Black, 10m | ||||||
| U6F4CO15MBK | FLAT CAT 6 UTP 30AWG Copper RJ45 Patch Cord,LSZH,Black, 15m | ||||||
| …… | …… | ||||||
| U6F4CO50MBK | FLAT CAT 6 UTP 30AWG Copper RJ45 Patch Cord,LSZH,Black, 50m | ||||||
| ZION Communication has rich expiriences in producing OEM/ODM cases becaused of Profession R & D team. | |||||||
| • Customized Logo on Plug & Boot | |||||||
| • Printing on Cable | |||||||
| • Label/PE bag/Carton design | |||||||
| • Different Color & Different Lengths Available | |||||||
| • Different Molding/Strain Relief |
