Conductor: | 24 AWG Stranded Bare Copper | Insulation: | HDPE |
---|---|---|---|
Drain Wire: | 0.40±0.005mm TC | Shield: | Al/Pet Foil,Foil Face Out+Tinned Copper Braid |
Jacket 1: | PVC CM | ||
Highlight: | cat5e networking cable,outdoor camera cable |

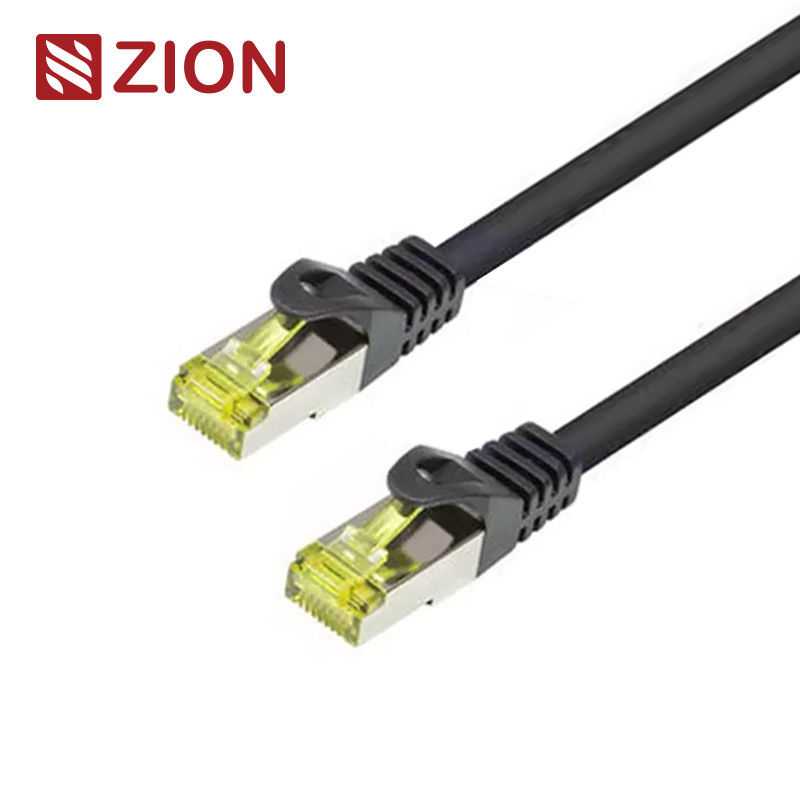

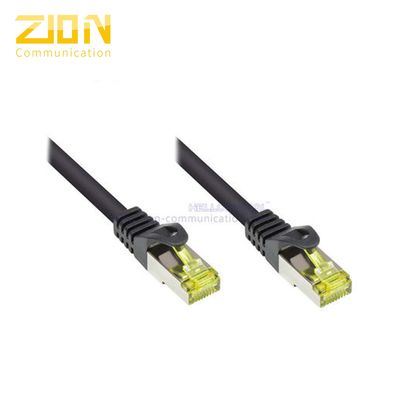

SF/UTP CAT 5E Twisted 4 Pair Patch Cord | ||||||||
PATCH CORD | ||||||||
NO. 7112523 | ||||||||
Construction | ||||||||
Conductor: | 24 AWG Stranded Bare Copper | |||||||
Pairs: | 4 Pairs | |||||||
Insulation: | HDPE | |||||||
Insulation Colors: | Blue-White/Blue,Orange-White/Orange | |||||||
Green-White/Green,Brown-White/Brown | ||||||||
Rip Cord: | Cotton | |||||||
Drain Wire | 0.40±0.005mm TC | |||||||
Overall Shield | Al/Pet Foil,Foil face out+Tinned Copper Braid | |||||||
Out Jacket: | 6.5±0.2 mm PVC CM | |||||||
Electrical Characteristics | ||||||||
Impedance | 1 - 100MHz 100±15 Ohms | |||||||
Insulation Resistance | >5000MΩ*KM | |||||||
Dielectric strength | DC 2500V 2S | |||||||
Max.Conductor DC Resistance 20℃ |
9.5 Ohms/100m | |||||||
Res. unbalance (%) | Max. 2.5 | |||||||
Pair to Ground Capacitance Unbalance |
330 pF/100m | |||||||
Transfer Impendance | Max 10 mOhms/m @100Mhz | |||||||
Cross Section | ||||||||
|
||||||||
Application | ||||||||
• Electrical performance guaranteed to meet or exceed ANSI/TIA-568B Category 5e and ISO/EIC specifications. |
||||||||
• Independently tested and verified intertek(ETL). | ||||||||
• Third party tested to Category 5e channel compliance. | ||||||||
• Ideal for Data center architectural requirements. | ||||||||
• Stranded cable for maximum flexibility. | ||||||||
• Available with different plug mold. | ||||||||
• Available with different color of cable. | ||||||||
• Available with different length. | ||||||||
Performance Characteristics | ||||||||
Frequency | RL (Min.) | Insertion Loss(Max.) | Propagation Delay (Max.) | Delay Skew(Max.) | NEXT (Min.) | PSNEXT (Min.) | ELNEXT (Min.) | PSELNEXT (Min.) |
MHz | dB | dB/100m | ns/100m | ns/100m | dB | dB | dB/100m | dB/100m |
1 | 17.0 | 3.0 | 555.0 | 50.0 | 60.0 | 57.0 | 57.4 | 54.4 |
4 | 17.0 | 4.5 | 555.0 | 50.0 | 53.5 | 50.5 | 45.4 | 42.4 |
8 | 17.0 | 6.3 | 555.0 | 50.0 | 48.6 | 45.6 | 39.3 | 36.3 |
10 | 17.0 | 7.1 | 555.0 | 50.0 | 47.0 | 44.0 | 37.4 | 34.4 |
16 | 17.0 | 9.1 | 555.0 | 50.0 | 43.6 | 40.6 | 33.3 | 30.3 |
20 | 17.0 | 10.2 | 555.0 | 50.0 | 42.0 | 39.0 | 31.4 | 28.4 |
25 | 16.0 | 11.4 | 555.0 | 50.0 | 40.3 | 37.3 | 29.4 | 26.4 |
31.25 | 15.1 | 12.9 | 555.0 | 50.0 | 38.7 | 35.7 | 27.5 | 24.5 |
62.5 | 12.1 | 18.6 | 555.0 | 50.0 | 33.6 | 30.6 | 21.2 | 18.5 |
100 | 10.0 | 24.0 | 555.0 | 50.0 | 30.1 | 27.1 | 17.4 | 14.4 |
Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested. | ||||||||
Order Informations | ||||||||
Marking | HELLOSIGNAL NO.7112523 SF/UTP CAT 5E 4PR 24AWG PVC CM Patch Cord XXX (or Per customer's request) |
|||||||
Inner Package | 305m/Spool,305m/Reel (or Per customer's request) | |||||||
Outer Package | Color Box, Pallet (or Per customer's request) | |||||||
Delivery time | Normally 25 days after received the deposit. | |||||||
Brand | HELLOSIGNAL® OR OEM | |||||||
