GJYXFHA / GJYXFHS Light Armor Drop Optical Fiber Cable 1 - 4 Core Singlemode

Basic Information
Place of Origin: CHINA
Brand Name: Zion communication OR OEM
Certification: CE, ROHS, VDE, UL
Model Number: Duct Installation
Minimum Order Quantity: 100km
Packaging Details: 2000M / Wooden Spool / Carton
Delivery Time: Normally 20 working days
Payment Terms: T/T, L/C
Supply Ability: 1500KM / Month
Detail Information
Fiber: G.652.D, G.655, 50/125um, 62.5/125um Central Strength Member: GFRP
Loose Tube: Thermoplastic Jacket: PE
Messenger: Stranded Steel Wires Package: Wooden Spool ,Φ280*280mm
Highlight:

Light Armor Drop Optical Fiber Cable

,

Singlemode Drop Optical Fiber Cable


Product Description

Wholesale Price GJYXFHA / GJYXFHS Light Armor 1-4 Core Singlemode Duct Bow Type Drop Optical Fiber Cable



GJYXFHA / GJYXFHS

Optical Fiber Cable Light Armor Bow type Drop
Duct Installation

GJYXFHA / GJYXFHS Light Armor Drop Optical Fiber Cable 1 - 4 Core Singlemode 0

Description

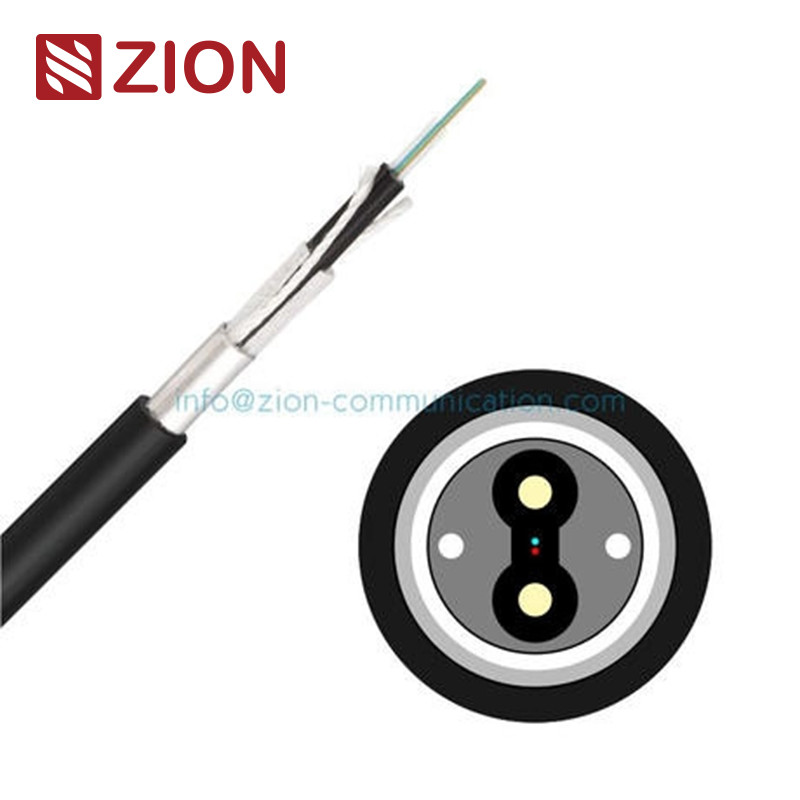

The typical GJYXFHA/GJYXFHS duct bow-type drop cable is composed of one GJXFH cable in the middle and
two strength members on both sides, longitudinal wrapped by aluminum / steel tape and HDPE sheath.
Novel groove design, easily strip and splice, simplified installation and maintenance, higher tensile strength
Suitable as duct cable
Waterproof, good safety





Standards

  • ITU-T Rec. G.657A: Standard for fibers with bend-insensitive characteristics, used for environments with tight bending radii.
  • IEC 60794: International standard for fiber optic cables.
  • GR-409: A standard for fiber optic cables used in telecommunications, specifying physical and mechanical characteristics.
  • ISO 9001: A standard for quality management systems, ensuring consistent production and services.
  • ICEA-596: The International Communications Engineering Association standard for fiber optic cables.
  • YD/T 1997-2009: Chinese national standard for optical fiber cables.

Cable Types and Technical Parameters:

Cable Type: GJYXFHA-1 and GJYXFHA-2

  • Cable Size: 7.2 ± 0.3 mm
  • Cable Weight: 42 kg/km
  • Tensile Strength:
    • Long Term: 300 N
    • Short Term: 600 N
  • Crush Resistance:
    • Long Term: 1000 N/100mm
    • Short Term: 2200 N/100mm
  • Bending Radius:
    • Static: 10 mm
    • Dynamic: 20 mm
  • Operating and Storage Temperature: -20°C to +60°C

Cable Type: GJYXFHS-1 and GJYXFHS-2

  • Cable Size: 7.4 ± 0.3 mm
  • Cable Weight: 59 kg/km
  • Tensile Strength:
    • Long Term: 500 N
    • Short Term: 1000 N
  • Crush Resistance:
    • Long Term: 1000 N/100mm
    • Short Term: 2200 N/100mm
  • Bending Radius:
    • Static: 10 mm
    • Dynamic: 20 mm
  • Operating and Storage Temperature: -20°C to +60°C

Summary of Key Features:

  • These cables are designed for robust performance, providing high tensile strength, crush resistance, and bending radius specifications suitable for tough environments.
  • The temperature range from -20°C to +60°C ensures that these cables can be used in a wide variety of climates.
  • The weight and size are consistent across similar models, making them easy to handle and install.
