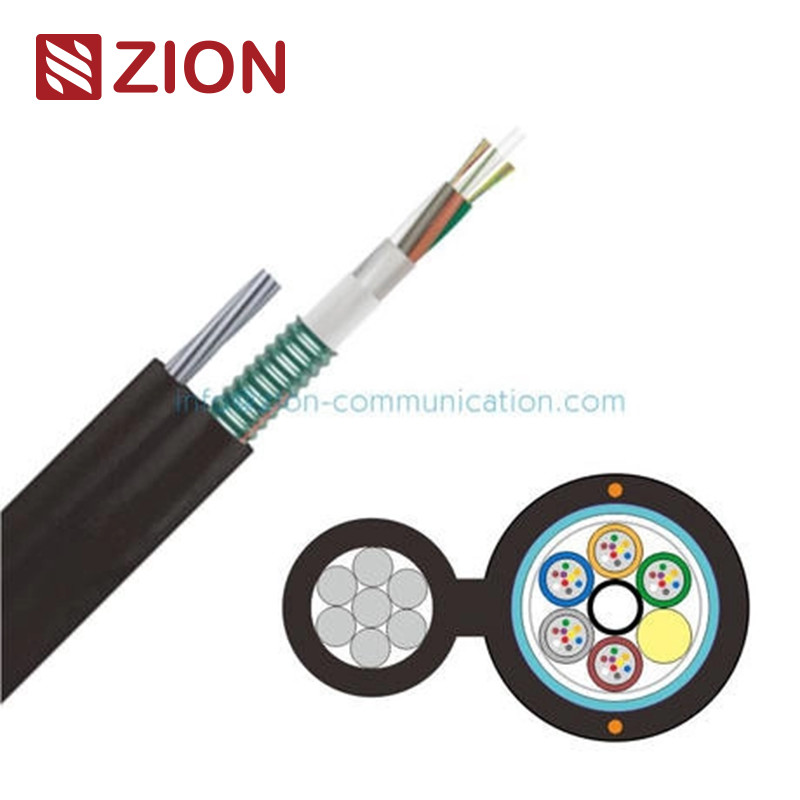

Light Armored Self Supporting Figure 8 Optic Cable (All-Dry) GYFC8S

GYFC8S

Light Amored Self-supporting Figure 8 Cable

Application:

High tensile resistance

High crush resistance

Self-supporting aerial installation

Semi-dry core design, easy for  installation and splice

Characteristics:

G.652.D

G.655

50/125um

62.5/125um

Attenuation

@850nm

-

-

≤3.0 dB/km

≤3.0 dB/km

@1300nm

-

-

≤1.0 dB/km

≤1.0 dB/km

@1310nm

≤0.36 dB/km

≤0.40 dB/km

-

-

@1550nm

≤0.22 dB/km

≤0.23 dB/km

-

-

Bandwidth

@850nm

-

-

≥500 MHz · km

≥200 MHz · km

@1300nm

-

-

≥1000 MHz · km

≥600 MHz · km

Polarization
mode
dispersion

lndividual fibre

≤0.20 ps/√km

≤0.20 ps/√km

-

-

Design link value
(M=20,Q=0.01%)

≤0.1 ps/√km

≤0.1 ps/√km

-

-

Technical Data:

Item

Contents

Value

Fiber Count

24

48

72

96

144

Loose Tube

No.of tubes*fibres pertube

4*6

4*12

6*12

8*12

12*12

Outer diameter (mm)

1.9

2.4

2.4

2.4

2.4

Central Strength member

Material

FRP

Diameter (mm)

2.0

2.0

2.6

2.6

2.6

Coated CSM diameter (mm)

-

-

-

4.2

7.4

Water Blocking material

Material

Water Blocking Tape & Yarn

Inner Sheath

Thickness (mm)

Nominal:1.0

Armor

Material

Corugated steel tape

Messenger Wire

Structure and diameter (mm)

7*1.6

Outer Sheath

Thickness (mm)

Nominal:1.8

Cable diameter(mm)Approx.

11.1/*22.1mm

12.1/*23.1mm

12.6/*23.6mm

14.6/*25.6mm

17.6/*28.6mm

Cable weight(kg/km)Approx.

280

310

330

370

440

Operating temperature range(℃)

-40~+70

Tensile Strength Short/ Long Term(N)

8000/2700

Crush resistanoe short/long term (N/100mm)

2000/600

The colour arrangement of fibre and tube is specified in the colour identification table.

Other structure and fibre count are also available according to customer requirements.
