| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, ROHS, VDE, UL |
| Model Number: | FTTH Drop Cable |
| Minimum Order Quantity: | 100km |
| Packaging Details: | 2000M / Wooden Spool / Carton |
| Delivery Time: | Normally 20 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1500KM / Month |
| Jacket: | LSZH | Package: | Wooden Spool ，Φ280*280mm |
|---|---|---|---|
| Modle: | FTTH Drop Cable | Brand: | Zion Communication OR OEM |
| Certificate: | CE, ROHS, VDE, UL | Country Of Origin: | CHINA |
| High Light: | Outdoor Single Mode Fiber Optic Cable,12 Core Single Mode Fiber Optic Cable |
||

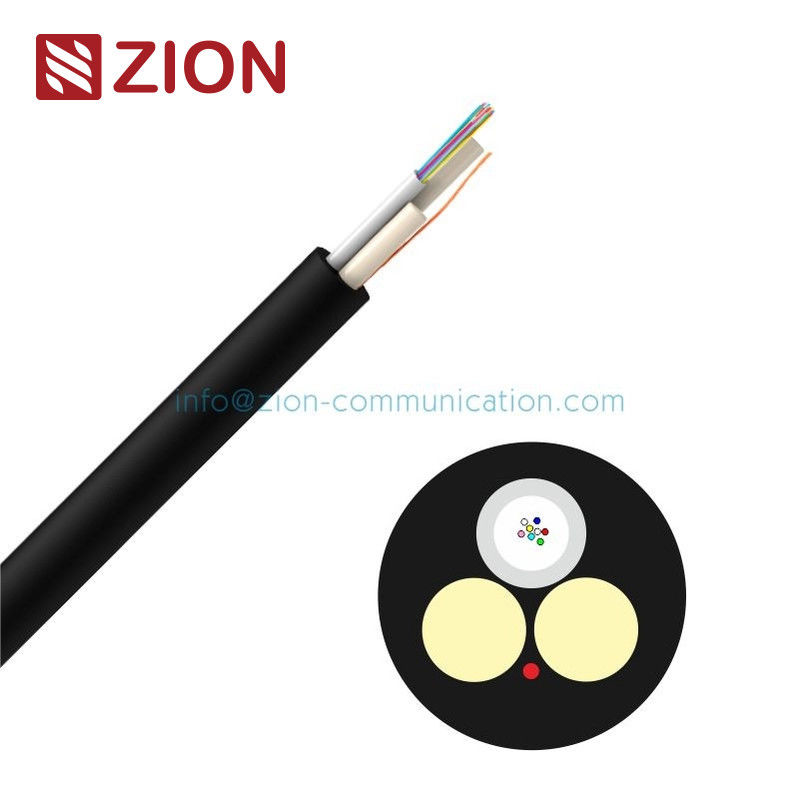

Non-Metallic Outdoor ASU Span 80M 1-12 Core Single Mode Fiber Optic Cable With Frp Strength Member
| ASU FTTH Drop Fiber Optic Cables Self-Supporting FRP Strength Tube 7.0/8.0 HDPE | |||||||||||||||||||||||||
| Introduction: | |||||||||||||||||||||||||
| The typical ASU Self-supporting Drop Optical cable Includes Central Tubes with optical fibre(s),Two Glass FRP as the strength members, a LSZH Sheath is extruded outside. |
|||||||||||||||||||||||||
| Features: | |||||||||||||||||||||||||
| Lighting resistance Non-metallic structure Duct installation and aerial installation together with tension strandwire Suitable for FTTH application as drop cable |
|||||||||||||||||||||||||
| Product Series: | |||||||||||||||||||||||||
| GJXFH | FRP Strength Member+2.0*3.0LSZH | ||||||||||||||||||||||||
| GJXH | Steel Wire Strength Member+2.0*3.0 LSZH | ||||||||||||||||||||||||
| GJXH-Small Diamter | Steel Wire Strength Member+1.6*2.0 LSZH | ||||||||||||||||||||||||
| GJX(F)DH | Ribbon Fibers+2.0*4.0LSZH | ||||||||||||||||||||||||
| GJYX(F)CH | Self-Supporting Wires+2.0*5.2LSZH | ||||||||||||||||||||||||
| GJYX(F)CH-Small | Self-Supporting Wires+1.7*3.8LSZH | ||||||||||||||||||||||||
| GJYXFDCH(GJYXDCH) | Self-Supporting Wires+Ribbon Fibers+1.7*3.8LSZH | ||||||||||||||||||||||||
| GYFJU | Aramid Yarn Strength Round Sheath LSZH | ||||||||||||||||||||||||
| GYGXY | Central Tube Glass Yarns armor Round Sheath HDPE | ||||||||||||||||||||||||
| FDC | Flat Drop Cable+Central Tube+3.0*6.0 LSZH | ||||||||||||||||||||||||
| ASU | Self-Supporting FRP Strength+Tube+7.0/8.0 HDPE | ||||||||||||||||||||||||
| GYXY-8S | Figure-8 Self-supporting+Aramid Yarns+Tubes+4.6*8.8HDPE | ||||||||||||||||||||||||
| GYFXBY | Flat Drop Cable+Central Tube+4.6*8.1 LSZH | ||||||||||||||||||||||||
| Cross Section: | |||||||||||||||||||||||||
|
|||||||||||||||||||||||||
| Technical Characteristics: | |||||||||||||||||||||||||
| Type | Diameter mm |
Weight (kg/km) |
Tensile strength Long/short term (N) |
Crush Long/short term (N/100mm) |
Bending Radius Static/Dynamic |
||||||||||||||||||||
| ASU-80 | 6.8(2.0tube) | 45 | 300/600 | 300/600 | 10D/20D | ||||||||||||||||||||
| ASU-120 | 7.8(2.5tube) | 60 | 300/600 | 300/600 | 10D/20D | ||||||||||||||||||||
| Note: This specification provides a normative reference. Adjustable outer diameter to suit your budget.Contact us ASAP. | |||||||||||||||||||||||||
| Environmental Characteristics: | |||||||||||||||||||||||||
| Transport/storage temperature: -20℃~70℃ | |||||||||||||||||||||||||
| Delivery Length: | |||||||||||||||||||||||||
| Standard length:1000m;Other length availabe | |||||||||||||||||||||||||
