Kevlar Yarn Strength Member GYFJU G.657B3 Fiber Optic Cable With TPU Jacket

GYFJU Factory Supply Kevlar Yarn Strength Member GYFJU G.657B3 Fiber Optic Cable With TPU Jacket

GYFJU FTTH Drop Fiber Optic Cables Aramid Yarn Strength Round Sheath LSZH

Introduction

The typical GJYXFDCH / GJYXDCH Self-supporting drop optical cable includes central optical Ribbon fibre(s) with 2 parallel FRP/Steel wires as the strength members placed on both sides,and an additional strength member(steelwire),Finally a LSZH sheath is extruded outside.

Features

Simple structure, light weight, high tensile strength and metal-free
Novel groove design, easily strip and splice, simplified installation and maintenance
Low smoke, zero halogen and flame retardant sheath, environment-friendly, good safety

Product Series

• GJXFH: FRP Strength Member+2.0*3.0LSZH
• GJXH: Steel Wire Strength Member+2.0*3.0 LSZH
• GJXH-Small Diamter: Steel Wire Strength Member+1.6*2.0 LSZH
• GJX(F)DH: Ribbon Fibers+2.0*4.0LSZH
• GJYX(F)CH: Self-Supporting Wires+2.0*5.2LSZH
• GJYX(F)CH-Small: Self-Supporting Wires+1.7*3.8LSZH
• GJYXFDCH(GJYXDCH): Self-Supporting Wires+Ribbon Fibers+1.7*3.8LSZH
• GYFJU: Aramid Yarn Strength Round Sheath LSZH
• GYGXY: Central Tube Glass Yarns armor Round Sheath HDPE
• FDC: Flat Drop Cable+Central Tube+3.0*6.0 LSZH
• ASU: Self-Supporting FRP Strength+Tube+7.0/8.0 HDPE
• GYXY-8S: Figure-8 Self-supporting+Aramid Yarns+Tubes+4.6*8.8HDPE
• GYFXBY: Flat Drop Cable+Central Tube+4.6*8.1 LSZH

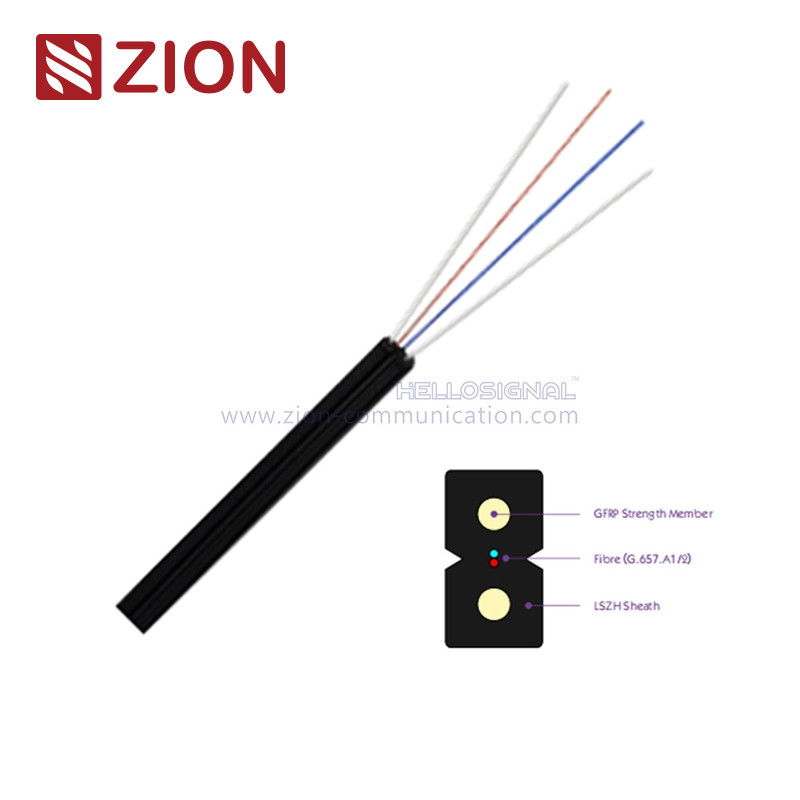

Cross Section

Technical Characteristics

GYFJU-1 Diametermm: 3

GYFJU-1 Weight(kg/km): 10.2

GYFJU-1 Tensile strengthLong/short term(N): 400/800

GYFJU-1 CrushLong/short term(N/100mm): 500/1000

GYFJU-1 Bending RadiusStatic/Dynamic: 15/30

GYFJU-2 Diametermm: 3

GYFJU-2 Weight(kg/km): 10.2

GYFJU-2 Tensile strengthLong/short term(N): 400/800

GYFJU-2 CrushLong/short term(N/100mm): 500/1000

GYFJU-2 Bending RadiusStatic/Dynamic: 15/30

Environmental Characteristics

Transport/storage temperature: -20℃~70℃

Delivery Length

Standard length:1000m;Other length availabe
