Home > Products> Optical Fiber System> OM1 Multimode LC UPC to LC UPC Duplex Fiber Optic Patch Cord with 2.0mm PVC Jacket

OM1 Multimode LC UPC to LC UPC Duplex Fiber Optic Patch Cord with 2.0mm PVC Jacket

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	LC UPC to LC UPC Duplex OM1

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 25 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Fiber Unit:	G.652D Or G.657A	Tight Buffer Fiber:	Tight Buffer Fiber
Jacket:	PVC Or LSZH	Color:	Orange
Package:	1 PC/Plastic Bag, PCS/Carton
Highlight:	OM1 Orange Lc Upc Patch Cord , Multimode Lc Upc Patch Cord , LC UPC To LC UPC Duplex

Product Description

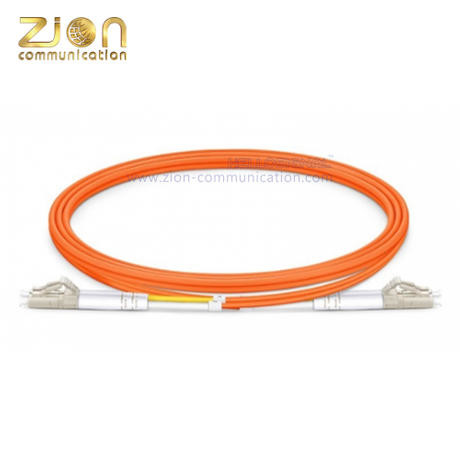

LC UPC to LC UPC Duplex OM1 Multimode Fiber Optic Patch Cord

High-performance fiber optic patch cord designed for reliable data transmission in networking applications.

Product Code: 1111D412-2

Product Overview

This LC UPC to LC UPC Duplex patch cord features OM1 Multimode fiber with PVC jacket in 2.0mm diameter and 2m (6ft) length.

Key Specifications

Fiber Optic Cable

Fiber Type	Multimode: OM1 (62.5/125)
Fiber Count	Duplex
Cable Jacket	PVC, 2.0mm OD
Jacket Color	Orange (OM1 standard)
Cable Length	2m (6ft)

Connector Details

Connector Type	LC UPC (Lucent Connector)
Typical Applications	High density connections, SFP and SFP+ transceivers, XFP transceivers

Performance Specifications

Parameter	Specification
Operating Wavelength	850-1300 nm
Insertion Loss	≤ 0.3 dB
Return Loss	≥ 35 dB
Repeatability	≤ 0.1 dB
Interchangeability	≤ 0.2 dB
Tensile Strength	≥ 1000 N
Operating Temperature	-20°C to +85°C
Storage Temperature	-40°C to +85°C

OEM/ODM Services

ZION Communication offers comprehensive customization options:

Customized Logo
Printing on Cable
Label/PE bag/Carton design
Different Colors & Lengths Available
