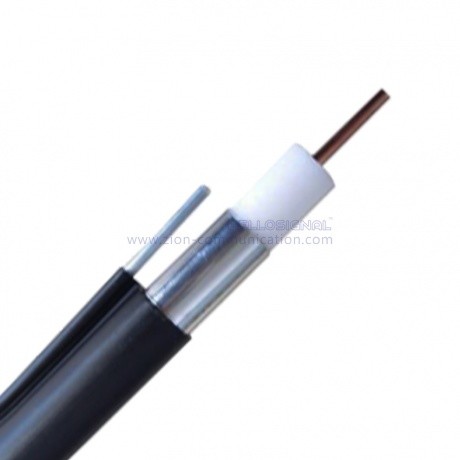

PS 565M 75 Ohm Trunk Coax Cable For CATV System In Black Jacket With Messenger

Basic Information

Place of Origin:	China
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	RG11 Coaxial Cable

Minimum Order Quantity:	30 KM
Packaging Details:	305M, 1000FT, Wooden Reel, Pallet
Delivery Time:	25 working days
Payment Terms:	T/T, L/C
Supply Ability:	3000KM / Month

Get Best Price Contact Now

Detail Information

Conductor:	CCA	Dielectric:	Foamed PE
Shield 1:	Aluminum Tube	Jacket:	PE
Color:	Black
Highlight:	quad shielded coaxial cable , rg11 coax cable

Product Description

CATV CABLE PRODUCTS CATEGORY

https://www.zion-communication.com/catv-coaxial-cable-products-catalog.html

Trunk Coax Cable PS 565M 75 Ohm CATV coaxial Cable NO.7100402



Construction Parameters:
Inner Conductor	0.129"/3.28mm/8AWG CCA
Dielectric	0.519"/13.2mm Foamed PE
Shield 1	0.565"/14.35mm Welding Smooth Aluminum Tube
Shield Thickness	0.023"/0.58mm
Jacket	0.625"/15.86mm PE
Jacket Thickness	0.030"/0.76mm
Messenger	0.109"/2.77mm
Max.Breaking Strength of Messenger(kgf)	816
Application	For Use in Longer CATV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance	The Max. at 20℃ shall be < 3.15 Ω/km

Capacitance	50 ± 3 pF/m
Impedance	75 ± 2 Ω
Return loss	between 5 and 1000MHz: > 22dB
Velocity of Propagation	0.89
Sparker Test (VAC)	4

Mechanical and Envrionmental Properties
Cable bend radius	10 times the cable diameter
Operating Temp Range	-20 ℃ to 60℃
Cable diamensions	0.625"/15.86mm PE
Cross Section














Attenuation(20℃):
Frequency (MHZ)	Nominal (dB/100m)	Max Attenuation (dB/100m)
5.00	0.43	0.46
55.00	1.51	1.54
83.00	1.84	1.90
211.00	2.99	3.12
250.00	3.25	3.38
300.00	3.58	3.71
350.00	3.87	4.04
400.00	4.17	4.33
450.00	4.43	4.59
500.00	4.69	4.89
550.00	4.92	5.12
600.00	5.18	5.38
750.00	5.84	6.07
865.00	6.33	6.56
1000.00	6.82	7.12

Order Informations:
Marking	HELLOSIGNAL Trunk Coax Cable PS 565M CATV COAXIAL CABLE 7100402 ×××M/FT
Package	Inquired Length on wooden Spool,pallet …
Delivery time	Normally 25 days after received the deposit.
Brand	HELLOSIGNAL^® OR OEM
