| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | ISO, UL, CE, RoHS |
| Model Number: | CCTV Coaxial Cable |
| Minimum Order Quantity: | 30KM |
| Packaging Details: | 500FT, 1000FT, Plastic / Wooden Spool, Carton |
| Delivery Time: | Normally 15 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50*20’GP / Month |
| Conductor: | Bare Copper | Insulation: | Solid PE |
|---|---|---|---|
| Shield: | CCA Braiding | Jacket: | UV-PE |
| Color: | Black | Messenger: | Zinned Steel |
| Package: | 500FT, 1000FT, Plastic / Wooden Spool, Carton | ||
| Highlight: | video coaxial cable,hd coaxial cable |
||
Visit our official website to learn more about CCTV Coaxial Cable
https://www.zion-communication.com/cctv-coaxial-cable-products-catalog.html
Quick Detail:
Description:

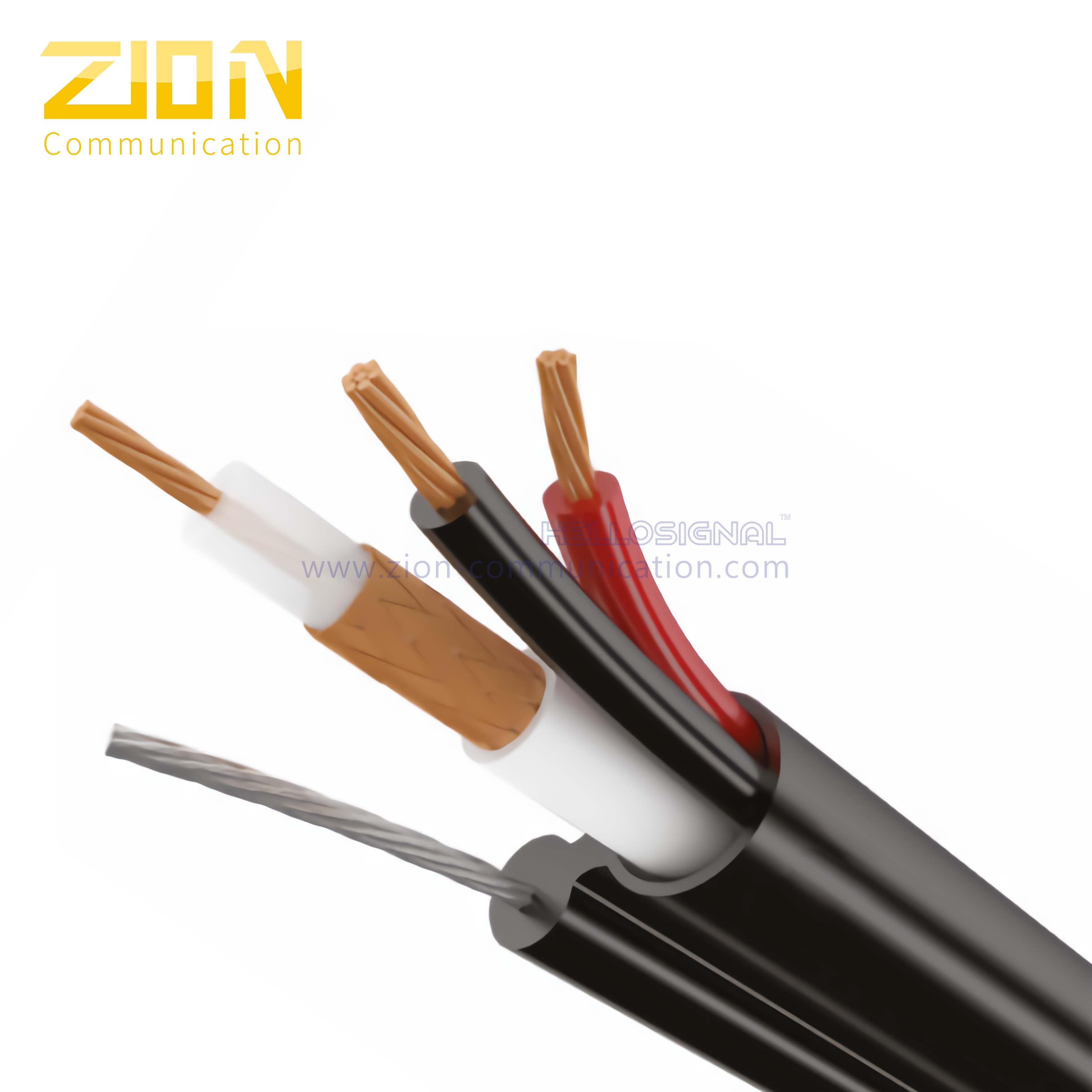

KT0729 RG59B/U CCTV Coaxial Cable 95% + CCA 2×0.75mm2 OUTDOOR MESSENGER
RG59B/U is a specific type of CCTV coaxial cable , RG59B/U (Produced by Zion communication) is perfect
for any type of surveillance camera installation. RG59B/U has a characteristic impedance of 75 ohms.
Zion communication using best raw material and best worker to produce RG59B/U to meet high performance in
practical application. RG59B/U is packed in 500FT/1000FT plastic/wooden spool, and will be layed on
pallet to protect the spool and easier carry.Because of good managing methods,
Zion communication’S price of RG59B/U is not high although our quality is really high.
Applications:
Suitable for Signal Transmission
■ CCTV
■ Local Area Network
■ Digital video
■ Monitor/VDT display
■ Security Camera
Specifications:
| KT0729 RG59B/U CCTV Coaxial Cable 95% CCA + 2×0.75mm2 OUTDOOR MESSENGER | ||
| Construction Parameters: | ||
| Inner Conductor | 0.58mm/23AWG | Bare Copper |
| Dielectric | 3.66±0.05mm | Solid PE |
| Shield | Nom. 4.20mm | |
| Strand | 0.12mm/34AWG | Copper Clad Aluminum |
| % Coverage | 95 nom. | |
| Jacket | 6.00±0.1mm | PVC (Color by your choise) |
| Power Wire Conductor | 17×0.25mm | Copper Clad Aluminum |
| Power wire Diameter of insulation | 2.00mm | PVC |
| Power Wire Color Code | Red,Black | |
| Jacket | 9.6±0.2mm | UV-PE |
| * 1 Pair of wire twisted | ||
| Messenger | 1.3±0.1mm | Zinned Steel |
| Application | For Use in Intermediate CCTV | Run Lengths |
| Electrical Characteristics: | ||
| Capacitance | 67±2 pF/m | |
| Impedance | 75±3 Ω | |
| Inner Conductor Resistance | 65.26 Ohms/KM at 20℃ | |
| Return loss | between 5 and 1000MHz | > 22dB |
| Velocity of Propagation | 0.66 | |
| Sparker Test (VAC) | 3 | |
| Operating Temp Range (PVC) | -20 ℃ to 60℃ | |
| RoHS | YES | |
| Attenuation(20℃): | ||
| Frequency (MHZ) |
Max Attenuation (dB/100ft) |
Max Attenuation (dB/100m) |
| 1 | 0.64 | 1.96 |
| 10 | 1.18 | 3.61 |
| 50 | 2.58 | 7.87 |
| 100 | 3.66 | 11.15 |
| 200 | 5.27 | 16.07 |
| 400 | 7.53 | 22.97 |
| 700 | 10.44 | 31.83 |
| 900 | 11.93 | 36.40 |
| 1000 | 12.89 | 39.30 |
| Order Informations: | ||
| Marking | Zion communication KT0729 RG59 B/U 95% CCA+2C-0.75mm2 CCA CLASS 5 OUTDOOR MESSENGER XXXM MMYY |
|
| Package | 200m/Wooden Spool,500m/Wooden Spool,Pallet | |
| Delivery time | Normally 20-25 days after received the deposit. | |
| More informations | please contact with us. | |
| Online Service: | ||
| Skype | Zion communication3 | |
| ICQ | 246632889 | |
