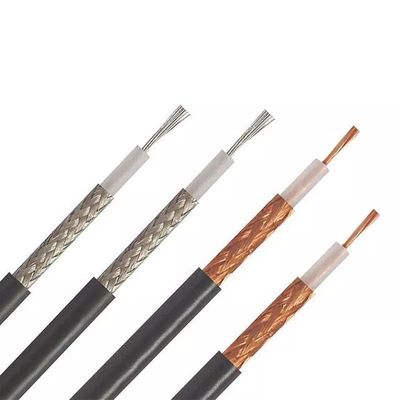

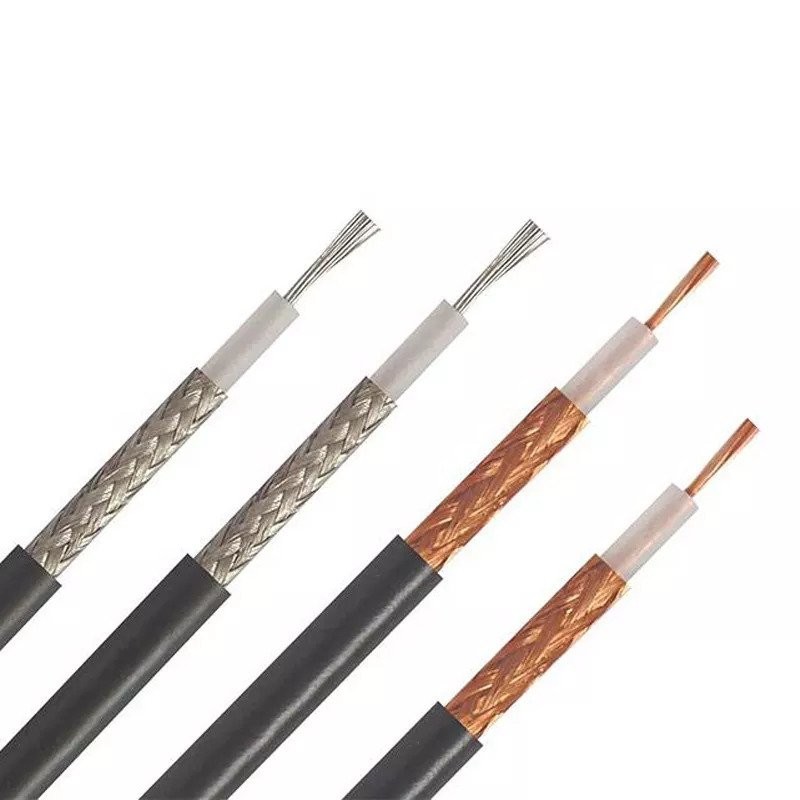

RG6/U Coaxial Cable with 95% Bare Copper Braid, PVC Flame Retardant Jacket, and 75 Ohm Impedance for CCTV Applications

Basic Information

Place of Origin:	China
Brand Name:	Zion communication OR OEM
Certification:	ISO, UL, CE, RoHS
Model Number:	RG6 Coaxial Cable

Minimum Order Quantity:	30 KM
Packaging Details:	305M, 1000FT, Wooden Reel, Carton
Delivery Time:	25 working days
Payment Terms:	T/T,L/C
Supply Ability:	3000KM / Month

Get Best Price Contact Now

Detail Information

Conductor:	18AWG BC	Insulation:	Foamed PE
Shield 1:	Bonded Aluminum Polyproylene	Shield 2:	Bare Copper Braid Wire 95% Coverage
Jacket:	PVC Flame Retardation: IEC 60332-1	Color:	Black, White
Package:	305M, 1000FT, Wooden Reel, Carton
Highlight:	95% Bare Copper Braid RG6/U Coaxial Cable , PVC Flame Retardant Jacket CCTV Coaxial Cable , 75 Ohm Impedance RG6U Coaxial Cable

Product Description

RG6/U S BC 95% CCA PVC Coaxial Cable

75 Ohm CCTV coaxial cable designed for longer run lengths with optimal signal transmission performance.

Product Specifications

Product Code: NO.7100062

Construction Parameters

Inner Conductor: 0.040"/1.02mm/18AWG BC
Dielectric: 0.175"/4.45mm Foamed PE
Shield 1: Bonded Aluminum Foil Shield
Shield 2: CCA braid wire 95% coverage
Diameter Over Shielding: 5.1 mm/0.20"
Jacket: 0.262±0.006"/6.65±0.15mm PVC
Flame Retardation: IEC 60332-1

Electrical Characteristics

Inner Conductor Resistance: Max. at 20℃: < 21.2 Ω/km (6.96 Ω/kft)
Capacitance: 52 ±3 pF/m (17±0.3 pF/ft)
Impedance: 75 ± 3 Ω
Return Loss: between 5 and 1000MHz: > 22dB
Velocity of Propagation: 0.85
Sparker Test (VAC): 4

Mechanical and Environmental Properties

Cable Bend Radius: 10 times the cable diameter
Operating Temperature Range: -20℃ to 60℃
Cable Dimensions: 0.262±0.006"/6.65±0.15mm PVC

Cross Section

Attenuation Characteristics (20℃)

Frequency (MHz)	Max Attenuation (dB/100ft)	Max Attenuation (dB/100m)
5	0.58	1.90
55	1.60	5.25
83	1.95	6.40
187	2.85	9.35
211	3.05	10.00
250	3.30	10.82
300	3.55	11.64
350	3.85	12.63
400	4.15	13.61
450	4.40	14.43
500	4.66	15.29
550	4.90	16.08
600	5.10	16.73
750	5.65	18.54
865	6.10	20.01
1000	6.55	21.49

Order Information

Marking: HELLOSIGNAL RG6/U S BC 95% CCA PVC CCTV COAXIAL CABLE 7100062 ×××M/FT
Package: Inquired Length on Reel, Pull Box, Plastic Spool, Wooden Spool, Pallet
Delivery Time: Normally 25 days after receiving deposit
Brand: HELLOSIGNAL® or OEM

Application

Ideal for use in longer CCTV run lengths requiring reliable signal transmission and durability.

Product Type	Conductor Type & Resistance	Shielding	Shielding Coverage	Jacket Type	Nominal Capacitance	Nominal Impedance
RG6/U S BC 95% BC PVC NO.7100061	18AWG (Solid) BC 21.2 Ω/km	B.Al/PET	BC-Braid 95%	PVC	52±3pF/m	75±3Ω
RG6/U S BC 95% BC UV-PE NO.7100063	18AWG/1.02mm BC 21.2 Ω/km	B.Al/PET	BC-Braid 95%	UV-PE	52±3pF/m	75±3Ω
