| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, RoHS, UL |
| Model Number: | Mylar Screended Security Cable 2 Pairs |
| Minimum Order Quantity: | 10 KM |
| Packaging Details: | 100M, 300M, Roll, Carton |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Conductor: | Stranded Bare Copper | Insulation: | Mylar PVC |
|---|---|---|---|
| Drain Wire: | Stranded Bare Copper | Rip Cord: | Yes |
| Jacket: | Mylar PVC | Color: | Gray |
| Package: | 100M, 300M, Roll, Carton | ||
| Highlight: | shielded alarm cable,burglar alarm cable |
||
Quick Detail:
Description:
Applications:
Wiring Burglar & Security alarms, public address systems,intercoms,telephone stations, speakers,instrumentation,control and other low voltage circuits that are power limited.
|

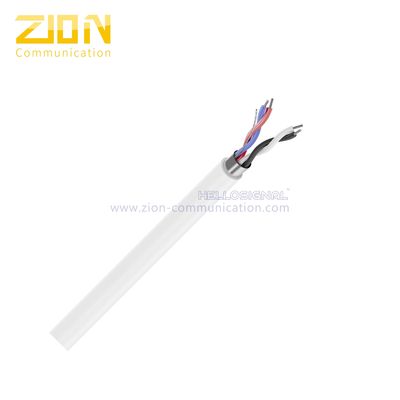

KT1312 Mylar Screened Cable 2 Pairs 0.22mm2 0.50mm2 1.00mm2 Stranded Gray |
||
| 0.40mm2 Construction | ||
| Conductor | 7 x 0.20mm | TC/CU |
| Pairs | 1 | |
| Insulation | 1.00mm PVC | |
| Drain Wire | 7 x 0.20mm | TC/CU |
| Outer jacket | Overall Diameter (mm) | 4.8 ± 0.1 mm |
| Thickness (mm) | 0.80 mm | |
| Raw Material | PVC(RoHs) flame retardant | |
| Marking | Zion communication Mylar Screened Cable 2 Pair 0.22mm2 Stranded Gray | |
| 0.50mm2 Construction | ||
| Conductor | 16 x 0.20mm | TC/CU |
| Pairs | 1 | |
| Insulation | 1.65mm PVC | |
| Drain Wire | 16 x 0.20mm | TC/CU |
| Outer jacket | Overall Diameter (mm) | 5.7 ± 0.1 mm |
| Thickness (mm) | 0.80 mm | |
| Raw Material | PVC(RoHs) flame retardant | |
| Marking | Zion communication Mylar Screened Cable 2 Pair 0.50mm2 Stranded Gray | |
| 1.00mm2 Construction | ||
| Conductor | 32 x 0.20mm | TC/CU |
| Pairs | 1 | |
| Insulation | 2.20mm PVC | |
| Drain Wire | 32 x 0.20mm | TC/CU |
| Rip Cord | Cotton Wire | |
| Outer jacket | Overall Diameter (mm) | 7.2 ± 0.1 mm |
| Thickness (mm) | 0.80 mm | |
| Raw Material | PVC(RoHs) flame retardant | |
| Marking | Zion communication Mylar Screened Cable 2 Pair 1.00mm2 Stranded Gray | |
| Order Informations: | ||
| Package | 100M, 300M, Roll, Carton (or Per customer's request) | |
| Delivery time | Normally 25 days after received the deposit. | |
Competitive Advantage:
1, From raw materials to final products, we perform intense quality checks to maintain our product quality:
A, Incoming material inspected by QC.
B, Manufacturing Process Control
C: Workers trained daily/weekly/monthly
D: Work instructions manual at each work station
E: 5S system implemented
F: Machine maintenance procedure
G: Quality Control and Final Inspection
The QC staff will check the material, process product
and final product according to the specification or test procedure.
2, Our R&D efforts center on reinforcing and developing element technologies
needed to support the future growth and success for customers and Zion communication.
3, We know customers have urgent needs.
We are skilled at effective communication to interact with customers.
In order to provide prompt service, we can answer for you 7*24 hours.
4, We can Quickly and professionally answer for the inquire
5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us
6, Intime delivery
