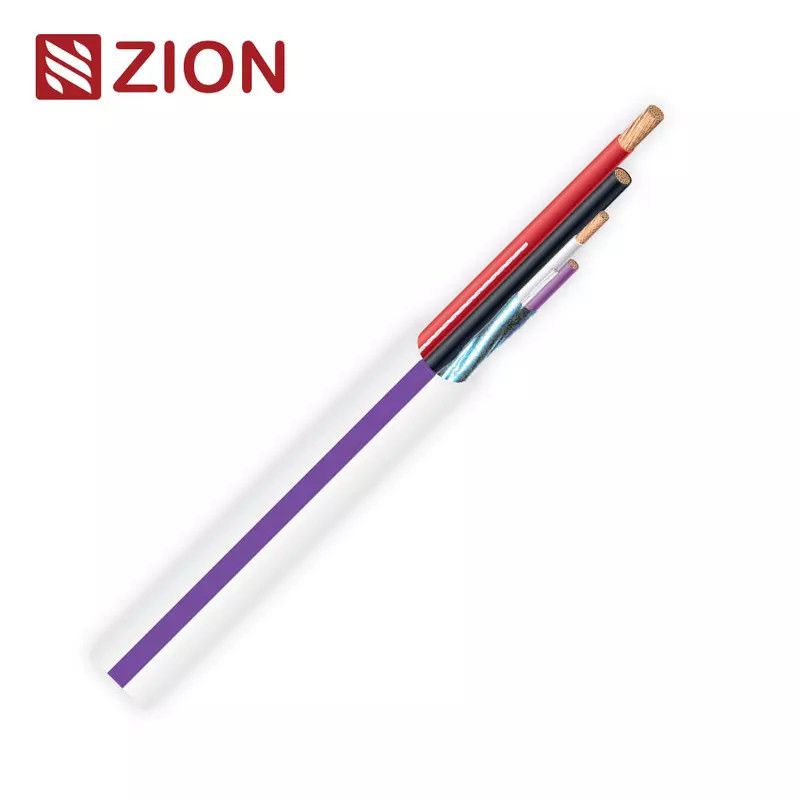

Advanced LUT QSHS Cable Plenum Rated For Superior Connectivity And Performance

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	CE, ROHS, VDE, UL
Model Number:	Plenum

Minimum Order Quantity:	500
Packaging Details:	Carton
Delivery Time:	Normally 20 working days
Payment Terms:	T/T, L/C
Supply Ability:	500000pcs / Month

Get Best Price Contact Now

Detail Information

Highlight:

Plenum Rated QSHS Cable

Advanced LUT QSHS Cable

Superior Connectivity QSHS Cable

Product Description

LUT QSHS Cable Plenum

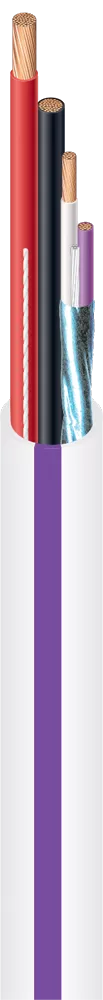

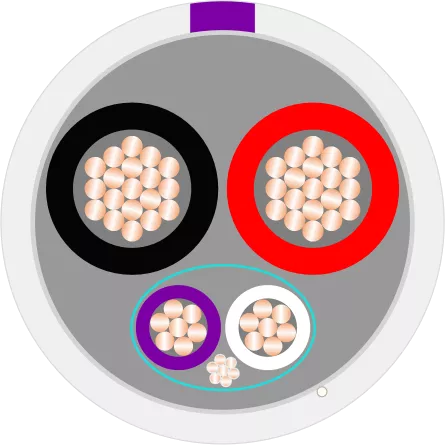

Key Information & Construction
SKU:	7111751
Assembly:	22/2C SH+16/2C (Purple Stripe)
UL Certificate Number:	E541136 - CMP
	E541137 - CL2P & CL3P
Element 1 (Data)	22AWG 2Cores Shielded
Conductor Material:	Stranded Bare Copper
Conductor Size:	22AWG/ 7×0.010" / 7×0.254mm
Dielectric Material:	Foam FEP
Dielectric Size:	0.052±0.004''nom.(1.32±0.10mm)
Dielectric Colors:	1.Violet 2.White
Drain Wire:	24AWG/7×0.2mm Stranded Tinned Copper
Shield:	Aluminum Malar Foil-100% Coverage
Element 2 (Power/Control)	16AWG 2Cores Unshielded
Conductor Material:	Stranded Bare Copper
Conductor Size:	16AWG/19×0.0113"/19×0.287mm
Dielectric Material:	Plenum PVC-Low Smoke
Dielectric Size:	0.087±0.004''nom.(2.20±0.10mm)
Dielectric Colors:	1.Red 2.Black
Rip Cord	Yes
Out Jacket:	Material: Plenum PVC - Low Smoke
	Color: White(or Light Blue)/Purple Stripe
	Wall Thickness: 0.0170". Nom(0.43mm)
	OD:0.239"±0.006“ (6.08±0.15mm)
Electrical & Physical Characteristics
DC Resistance	22AWG:14.8Ω/KFT	16AWG:4.35Ω/KFT
Capacitance	22AWG:22.3 pF/FT
Impedance	22AWG: 67Ω
Rated Voltage(V RMS)	300V
Operating Temperature	- 20 to 75 ℃ (- 4 to 167℉)

Order Informations
Marking	ZION LUT QSHS 22AWG/2C SH+12AWG/2C E541137 CL3P(UL) OR E541136 CMP(UL)C(UL) MM/DD/YY RoHS COMPLIANT ***FT
