Vibration Damper and Armour Rod - Protecting Cables from Vibration and Damage

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	CE, ROHS, VDE, UL
Model Number:	Vibration Damper、Armour Rod

Minimum Order Quantity:	500
Packaging Details:	Carton
Delivery Time:	Normally 20 working days
Payment Terms:	T/T, L/C
Supply Ability:	500000pcs / Month

Get Best Price Contact Now

Product Description

Vibration Damper,Armour Rod
The company offers a 4D series of anti-vibration hammer tuning fork design for Stockbridge, multi-resonance sound damping devices, mainly used for weakening and fragmentation of fiber optic cable due to aerolian vibration generated by the impact energy.

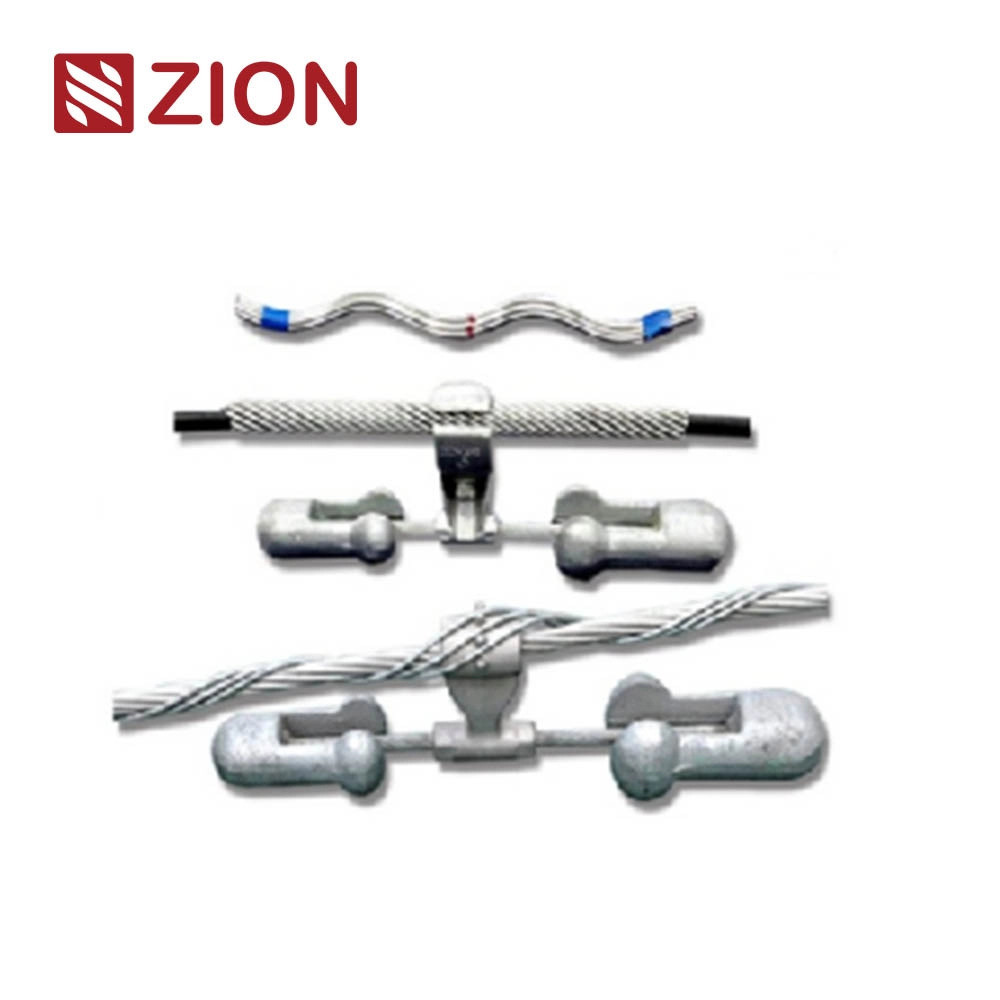

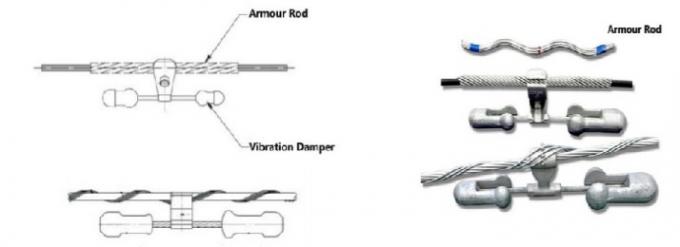

Pictures and illustrations:


Model Specification:
Model		Clamp Dia. Range(mm)			Clamp Length(mm)			Total Length(mm)			Weight(kg)
4D-20-19.5		19.5-15.0			310			52			1.4
4D-20-23.4		23.4-19.5
4D-20-27.0		27.0-22.3
4D-30-20.3		20.3-16.5			383			52			2.5
4D-30-23.4		23.4-19.5
4D-30-27.0		27.0-22.3

Configuration:
It is commonly used in the anti vibration device of OPGW cable and ADSS cable.
Configuration of installation quantity of OPGW damper
Cable Dia.(mm)		Span(m)
d<12		100~300			300~600			600~900
12≤d<22		100~350			350~700			700~1000			1000~1200
Quantity of damper (each span)		2			4			6			8

Configuration of installation quantity of ADSS damper
Cable Dia.(mm)		Span(m)
d<12		100~250			250~450			450~700
12≤d<22		100~250			250~500			500~800			800~1000
Quantity of damper (each span)		1			2			4			6

Note: on the critical span, for the sake of safety, the number of vibration dampers should be more or less.




Installation Hint:



Armour Rod Model Specification:
Model	Cable Dia.(mm)		Material	Length (mm)		Weight (kg)	Model		Cable Dia.(mm)	Material		Length (mm)	Weight (kg)
ZC-FZH 0960	9.0-9.6		AL-ALLOY	450		0.15	ZC-FZH 1450		14.4-14.5	AL-ALLOY		500	0.23
ZC-FZH 1010	9.7-10.1		AL-ALLOY	450		0.15	ZC-FZH 1510		14.6-15.1	AL-ALLOY		500	0.25
ZC-FZH 1060	10.2-10.6		AL-ALLOY	450		0.17	ZC-FZH 1580		15.2-15.8	AL-ALLOY		550	0.28
ZC-FZH 1110	10.7-11.1		AL-ALLOY	450		0.17	ZC-FZH 1600		15.9-16.0	AL-ALLOY		550	0.3
ZC-FZH 1160	11.2-11.6		AL-ALLOY	500		0.19	ZC-FZH 1690		16.1-16.9	AL-ALLOY		550	0.3
ZC-FZH 1170	11.7-11.7		AL-ALLOY	500		0.21	ZC-FZH 1730		17.0-17.3	AL-ALLOY		550	0.3
ZC-FZH 1200	11.8-12.0		AL-ALLOY	500		0.21	ZC-FZH 1800		17.4-18.0	AL-ALLOY		550	0.33
ZC-FZH 1270	12.1-12.7		AL-ALLOY	500		0.21	ZC-FZH 1840		18.1-18.4	AL-ALLOY		550	0.33
ZC-FZH 1290	12.8-12.9		AL-ALLOY	500		0.23	ZC-FZH 1880		18.5-18.8	AL-ALLOY		550	0.35
ZC-FZH 1360	13.0-13.6		AL-ALLOY	500		0.23

Note: 1.The above configuration is a general configuration. Please refer to the appendix for other connection hardware and special instructions. 2.If you have special needs, you can consult our technology department.
