Efficient Cable Storage Assembly - Organize and Protect Your Cables

Efficient Cable Storage Assembly - Organize and Protect Your Cables
Efficient Cable Storage Assembly - Organize and Protect Your Cables
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication OR OEM
Certification: CE, ROHS, VDE, UL
Model Number: Cable Storage Assembly
Minimum Order Quantity: 500
Packaging Details: Carton
Delivery Time: Normally 20 working days
Payment Terms: T/T, L/C
Supply Ability: 500000pcs / Month
Get Best Price Contact Now
Product Description

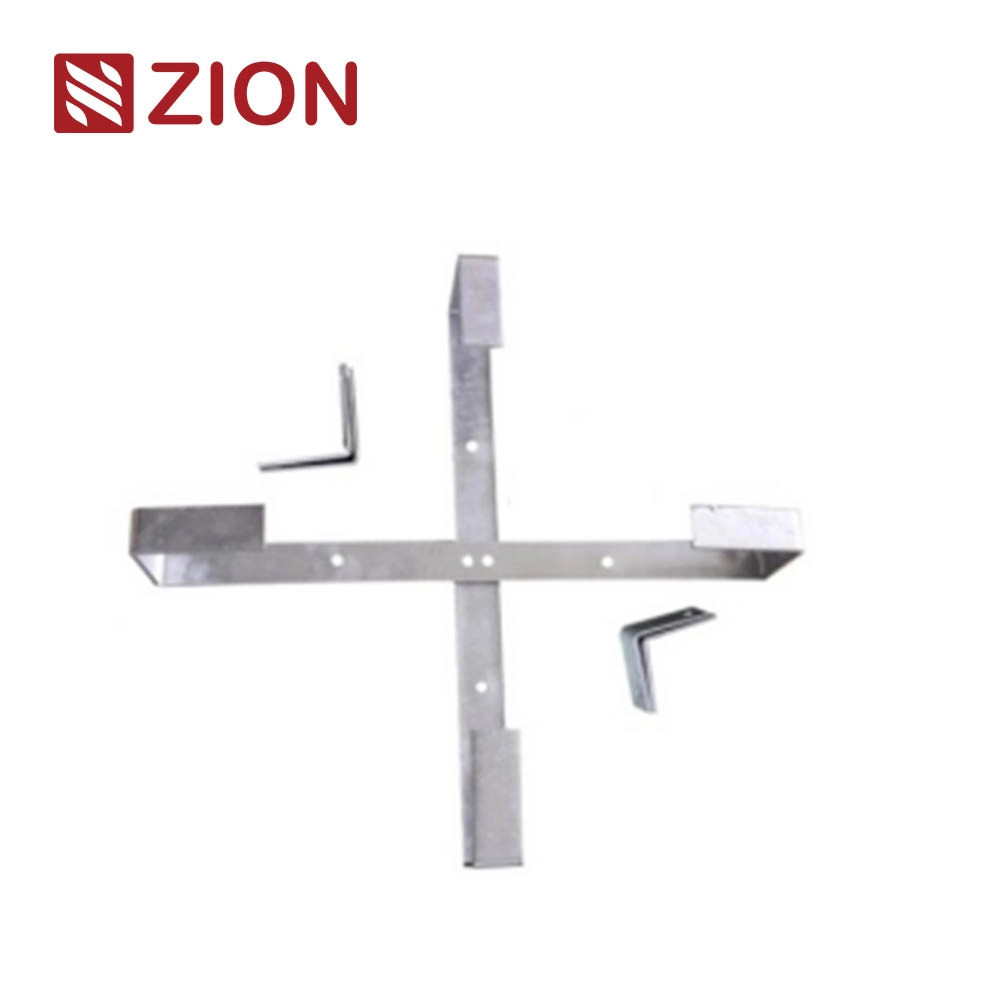

Cable Storage Assembly
Cable Storage Assembly1 Cable Storage Assembly2
1. Use:
Cable Storage Assembly is used for storage of reserved optical fiber cable.
it is divided into inserted type storage and outside coil type storage.

2. Model:
Name Model Dimension Collocation Suitable Cable Range
Diameter(mm) Weight(kg)
Cable
Storage
Assembly		 ZC-TJY 660-T 660 4.1 Small splint Applicable to OPGW optical cable
ZC-TJY 900-T 900 7.7 Small splint Applicable to OPGW optical cable
ZC-TJY 1030-T 1030 11.8 Small splint Applicable to OPGW optical cable (OD＞15mm)
Cable
Storage
Assembly		 ZC-TJY 660-H 660 4.1 Small splint Applicable to ADSS optical cable
ZC-TJY 900-H 900 7.7 Small splint Applicable to OPGW optical cable
ZC-TJY 1030-H 1030 11.8 Small splint Applicable to OPGW optical cable (OD＞15mm)

Explain:
1.T - G for tower - s * for pole - type of stainless steel band hoop
2.When the residual cable frame is used for the installation on the tower, two pairs of small splints are provided.
When the residual cable bracket is used for pole installation, two sets of pole supports are provided.

3. Accessories for Cable Storage Assembly

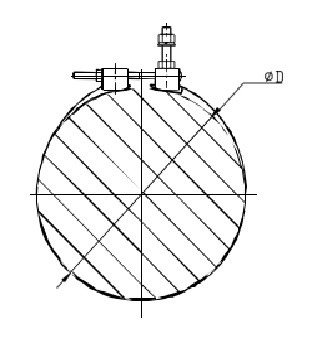

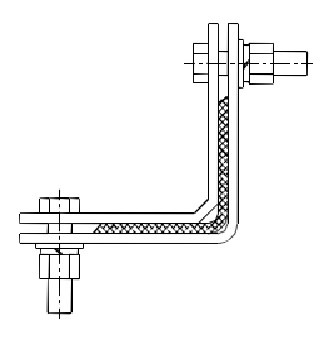

Support for Pol1 Small Splint2
Support for Pol Small Splint
Purpose: the pole support for the residual cable frame is used for fixing the residual cable frame on the pole; the small splint is used for fixing the residual cable frame on the tower.

Specification of support for pole of cable support
Name Model Core No. Weight (kg) Material
Support for Pole ZC-TJY-H1 150-310 0.48 Stainless Steel Strip
Support for Pole ZC-TJY-H2 311-460 0.52
Support for Pole ZC-TJY-H3 461-600 0.57
Support for Pole ZC-TJY-H4 601-800 0.62
Support for Pole ZC-TJY-H5 801-1000 0.72

Specification of small splint
Name Model Angle Iron Dimension for Iron Tower (mm) Weight (kg) Material
Small Splint ZC-TJB-70 ≤70 1.02 Hot dip galvanized steel
Small Splint ZC-TJB-100 71-100 1.22 Hot dip galvanized steel
Small Splint ZC-TJB-150 101-150 1.61 Hot dip galvanized steel
