Stable Immobility Clamp - Securing with Reliability

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	CE, ROHS, VDE, UL
Model Number:	Immobility Clamp for Pole

Minimum Order Quantity:	500
Packaging Details:	Carton
Delivery Time:	Normally 20 working days
Payment Terms:	T/T, L/C
Supply Ability:	500000pcs / Month

Get Best Price Contact Now

Product Description

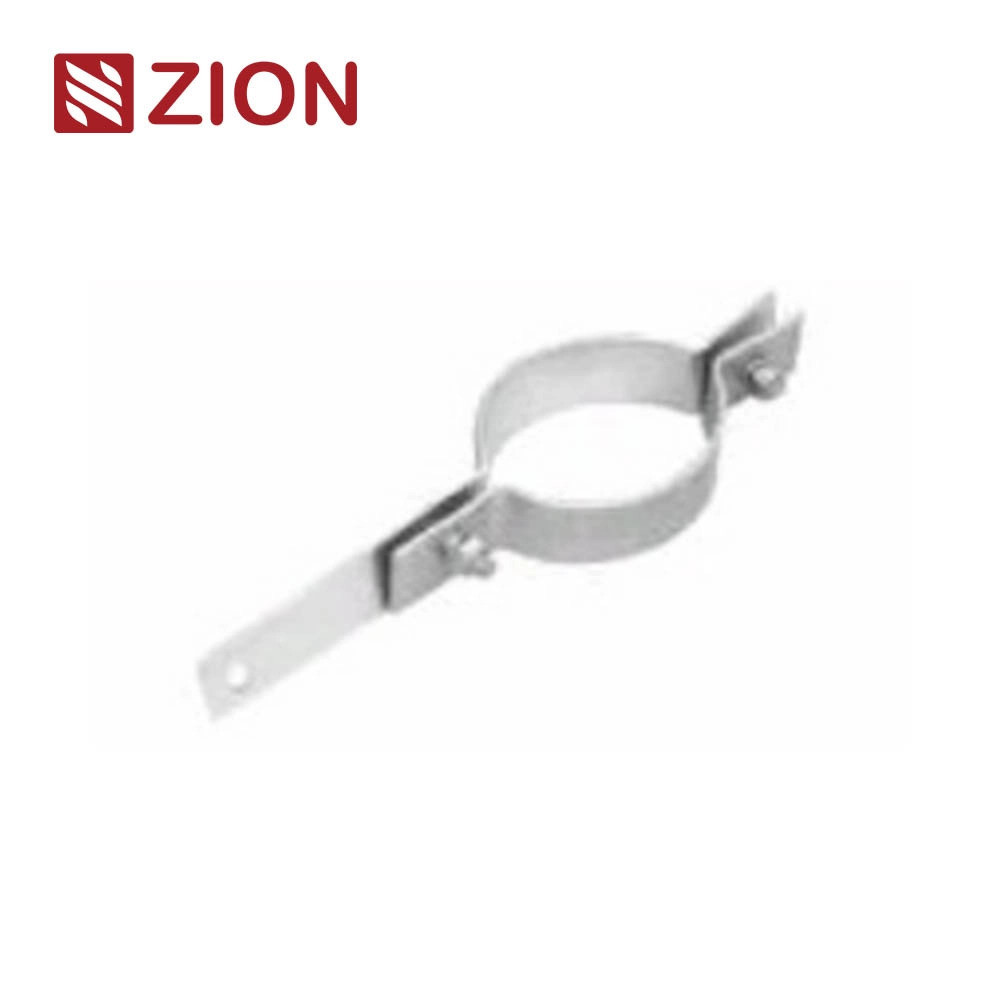

Immobility Clamp for Pole
Application: it is used for fixing tension and suspension clamp on the pole.

Name	Model	Suitable Range	Weight (kg)	Material	FailingLoad
Hoop	ZC-TGZ 080 070	Size of main material≤ 80mm	3.55	Hot dip galvanized steel	70
	ZC-HBG 070 125	Pole diameter: 101～125mm	2.3	Hot dip galvanized steel	70
	ZC-HBG 070 150	Pole diameter: 126～150mm	2.5	Hot dip galvanized steel	70
	ZC-HBG 070 175	Pole diameter: 151～175mm	2.7	Hot dip galvanized steel	70
	ZC-HBG 070 200	Pole diameter: 176～200mm	2.9	Hot dip galvanized steel	70
	ZC-HBG 070 225	Pole diameter: 201～225mm	3.2	Hot dip galvanized steel	70
	ZC-HBG 070 250	Pole diameter: 226～250mm	3.4	Hot dip galvanized steel	70
	ZC-HBG 070 275	Pole diameter: 251～275mm	4	Hot dip galvanized steel	70
	ZC-HBG 070 300	Pole diameter: 276～300mm	4.2	Hot dip galvanized steel	70
	ZC-HBG 070 325	Pole diameter: 301～325mm	4.4	Hot dip galvanized steel	70
	ZC-HBG 070 350	Pole diameter: 326～350mm	4.6	Hot dip galvanized steel	70
	ZC-HBG 070 375	Pole diameter: 351～375mm	4.9	Hot dip galvanized steel	70
	ZC-HBG 070 400	Pole diameter: 376～400mm	5.1	Hot dip galvanized steel	70
	ZC-HBG 070 425	Pole diameter: 401～425mm	5.3	Hot dip galvanized steel	70
	ZC-HBG 070 450	Pole diameter: 426～450mm	5.5	Hot dip galvanized steel	70
	ZC-HBG 070 475	Pole diameter: 451～475mm	5.7	Hot dip galvanized steel	70
	ZC-HBG 070 500	Pole diameter: 476～500mm	6	Hot dip galvanized steel	70
	ZC-HBG 070 525	Pole diameter: 501～525mm	6.2	Hot dip galvanized steel	70
	ZC-HBG 070 550	Pole diameter: 526～550mm	6.4	Hot dip galvanized steel	70
	ZC-HBG 070 575	Pole diameter: 551～575mm	6.6	Hot dip galvanized steel	70
	ZC-HBG 070 600	Pole diameter: 576～600mm	6.8	Hot dip galvanized steel	70
