Appendix Link Fittings Parameter - Detailed Specification for Accurate Selection

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	CE, ROHS, VDE, UL
Model Number:	Appendix Link Fittings Parameter

Minimum Order Quantity:	500
Packaging Details:	Carton
Delivery Time:	Normally 20 working days
Payment Terms:	T/T, L/C
Supply Ability:	500000pcs / Month

Get Best Price Contact Now

Product Description

Appendix Link Fittings Parameter

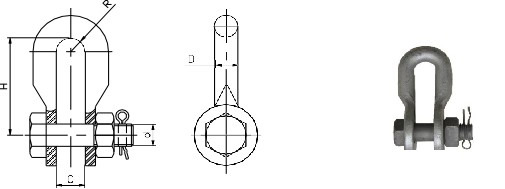

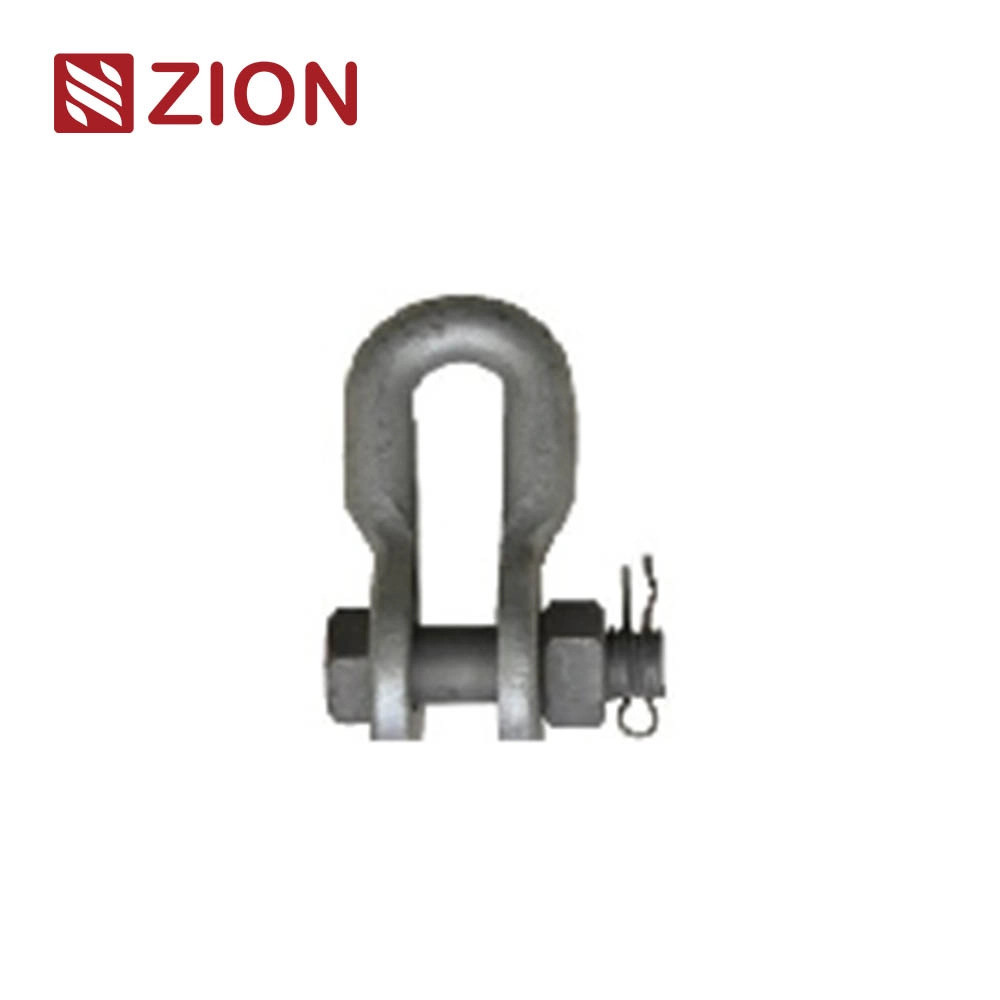

U-Clevis

Model			Main dimensions (mm)										Failing Load(kN)					Weight(kg)
			c		d		D		H		R
ZC-U-6			22		14		16		75		12		60					0.4
ZC-U-7			20		16		16		80		10		70					0.5
ZC-U-10			22		18		18		85		11		100					0.6
ZC-U-12			24		22		20		90		12		120					1
ZC-U-16			26		24		22		95		13		160					1.5
ZC-UL-7			20		16		16		120		22		70					0.7
ZC-UL-10			22		18		18		140		24		100					0.9
ZC-UL-12			24		22		20		140		18		120					1.1

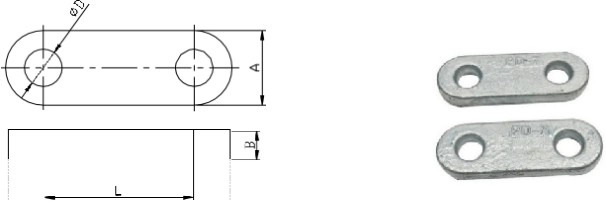

Shackle

Model			Main dimensions (mm)												Failing Load(kN)				Weight(kg)
			d			L			H			C
ZC-PD-7			16			18			70			40			70				0.5
ZC-PD-10			16			20			80			40			100				0.7
ZC-PD-12			16			24			100			40			120				0.9
ZC-PD-16			22			26			130			60			160				1.4

Eye Chain Link

Model			Main dimensions (mm)												Failing Load(kN)				Weight(kg)
			C		h		H		b		B		φ
ZC-ZH-7			24		57		95		16		16		20		70				0.5
ZC-ZH-10			24		57		100		16		18		20		100				1.1
ZC-ZH-12			24		65		115		16		18		24		120				1.2
ZC-ZH-16			26		75		135		18		22		26		160				1.8

PS-Shackle

Model			Main dimensions (mm)										Failing Load(kN)					Weight(kg)
			C		B		M		D		H
ZC-PS-7			18		16		16		16		90		70					0.6
ZC-PS-10			20		18		18		18		90		100					0.9
ZC-PS-12			20		20		22		22		95		120					1.5
ZC-PS-16			26		24		24		24		155		160					2.2

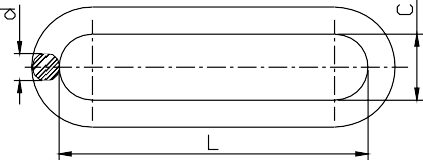

Chain Link

Model			Main dimensions (mm)												Failing Load(kN)				Weight(kg)
			C				d				L
ZC-PH-7			20				16				80				70				0.4
ZC-PH-10			22				18				100				100				0.6
ZC-PH-12			24				20				120				120				0.9
ZC-PH-16			26				22				140				160				1.5

Z-Shackle

Model			Main dimensions (mm)												Failing Load(kN)				Weight(kg)
			C1			C2			M			H
ZC-Z-7			18			18			16			60			70				0.6
ZC-Z-10			20			20			18			70			100				0.8
ZC-Z-12			24			24			22			80			120				1.3
ZC-Z-16			26			26			24			90			160				2.5

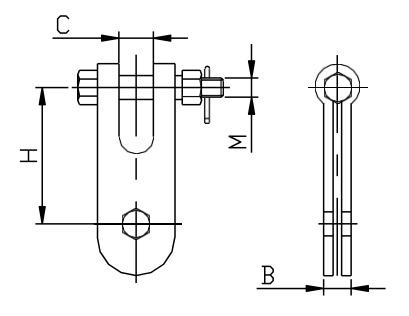

P-Shackle

Model			Main dimensions (mm)												Failing Load(kN)				Weight(kg)
			B			C			M			H
ZC-P-7			6			18			16			60			70				0.6
ZC-P-10			8			20			18			70			100				0.8
ZC-P-12			10			24			22			80			120				1.3
ZC-P-16			12			26			24			90			160				2.5

ZS-Shackle

Model			Main dimensions (mm)										Failing Load(kN)					Weight(kg)
			C		B		M		D		H
ZC-ZS-7			18		16		16		16		60		70					0.6
ZC-ZS-10			20		18		18		18		70		100					0.9
ZC-ZS-16			26		26		24		26		90		160					1.9

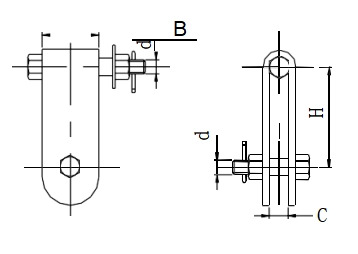

UB-Shackle

Model			Main dimensions (mm)												Failing Load(kN)				Weight(kg)
			c			d			H			B
ZC-UB-7			18			16			70			45			70				0.75
ZC-UB-10			20			18			80			45			100				1.08
ZC-UB-12			24			22			100			60			120				2.28
ZC-UB-16			26			24			100			60			160				2.9

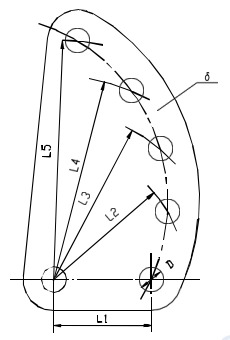

Sag.Adjusting Plate(Type DB)

Model		Main dimensions (mm)														Failing Load(kN)			Weight(kg)
		D		δ		L1		L2		L3		L4		L5
ZC-DB-7		18		16		70		95		120		145		170		70			1.7
ZC-DB-10		20		16		80		110		140		170		200		100			2.7
ZC-DB-12		24		16		100		135		170		205		240		120			3.2
ZC-DB-16		26		18		120		125		140		155		170		160			4.1

Yoke Plat

Model			Main dimensions (mm)												Failing Load(kN)				Weight(kg)
			c			d			H			B
ZC-L-1040			16			70			18			400			100				4.4
ZC-L-1240			16			70			18			400			120				4.7
ZC-L-1640			18			100			20			400			160				5.9
ZC-L-2140			16			100			20			400			210				7
ZC-L-2540			16			110			24			400			250				9
ZC-L-3040			18			110			26			400			300				10

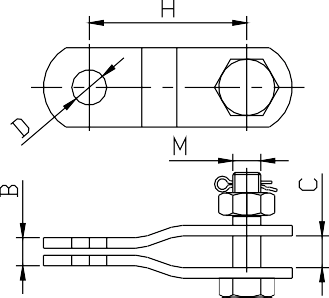

Twisted Strap(Type GD)

Model		Main dimensions (mm)														Failing Load(kN)			Weight(kg)
		L		I		φ		M		H		B		h
ZC-GD-12		250		112		24		22		12		16		40		100			1.7
ZC-GD-12 A		250		130		24		22		8		22		40		120			1.6
ZC-GD-21 S		250		112		26		24		12		20		40		210			2.1

Adjusting Plate(TypePT)

Model	Main dimensions (mm)																Failing Load(kN)			Weight(kg)
	L0		L1		L2		M		D		B		C		L
ZC-PT-07	45		30		45		16		18		16		18		225-345		70			2
ZC-PT-10	50		40		50		18		20		16		20		250-390		100			2.9
ZC-PT-12	60		45		60		22		24		16		24		300-465		120			5.2
ZC-PT-16	65		50		60		24		26		18		26		325-505		160			7
