Composing Fittings - Essential Components for Optimal Performance

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	CE, ROHS, VDE, UL
Model Number:	Composing Fittings

Minimum Order Quantity:	500
Packaging Details:	Carton
Delivery Time:	Normally 20 working days
Payment Terms:	T/T, L/C
Supply Ability:	500000pcs / Month

Get Best Price Contact Now

Product Description

Composing Fittings
1.Thimble

NO.1								NO.2

Model		Drawing No.		Main dimensions (mm)							Failing Load(kN)			Weight(kg)
				H		C			d
ZC-TC 04		1		51		18			M16		40			0.5
ZC-TC 07		2		40		23			M16		70			0.9
ZC-TC 12		2		50		24			M16		120			1.3
ZC-TC 16		2		62		28			M18		160			1.7

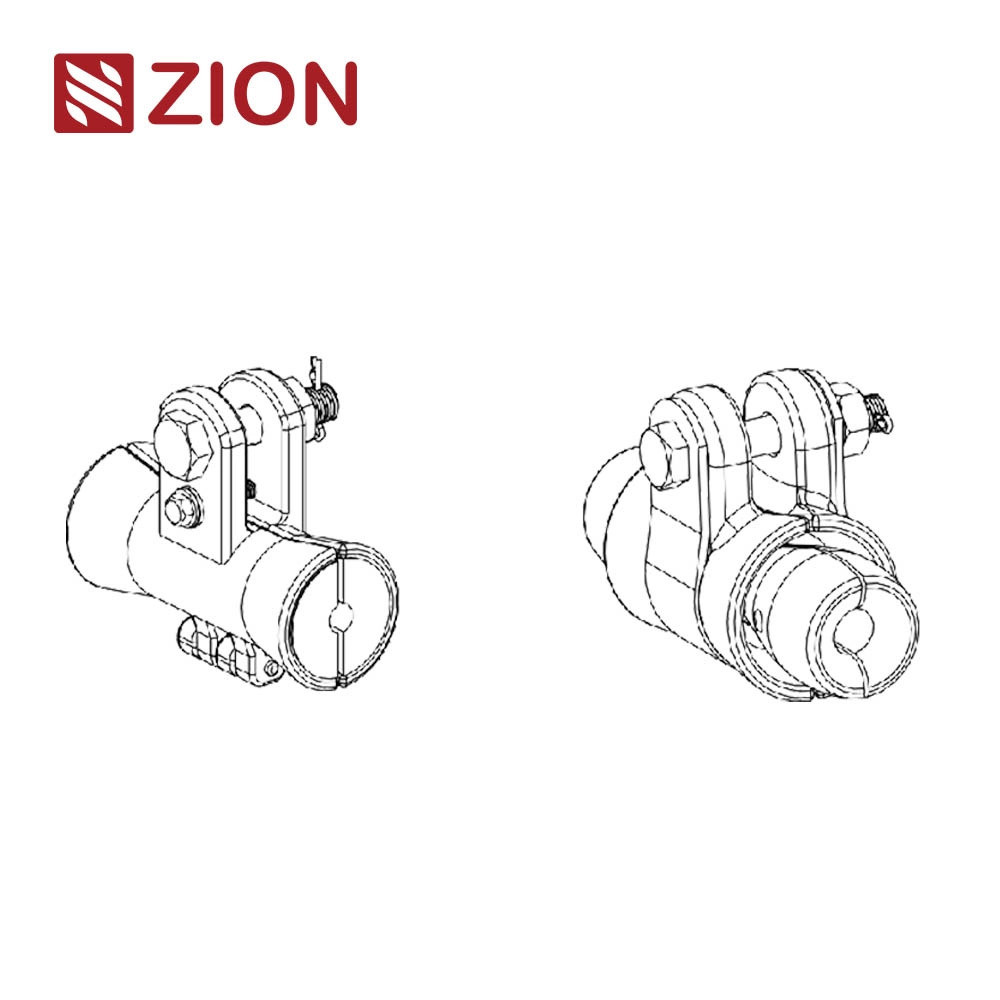

2.AGS Clamp

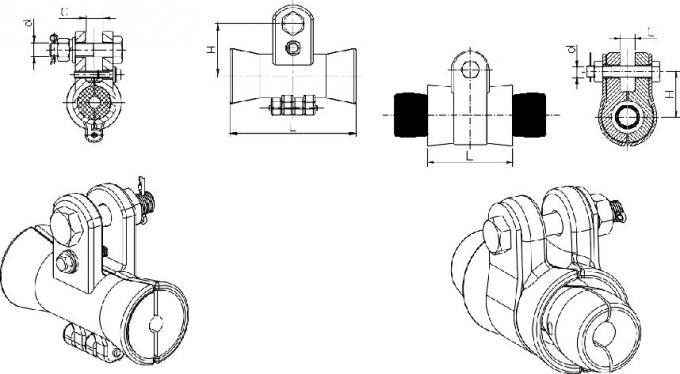

NO.1								NO.2

Model		Drawing No.									Failing Load(kN)			Weight(kg)
		d		L		H			C
AGS Clamp ZC-AGS-4		M16		90		50			20		1.17			40
AGS Clamp ZC-AGS-5		M16		95		55			20		1.28			70
AGS Clamp ZC-AGS-6		M16		114		60			22		1.7			100
AGS Clamp ZC-AGS-7		M16		125		65			22		1.97			120
AGS Clamp ZC-AGS-8		M18		140		70			24		2.6			130

3.Yoke Plate


Model		Main dimensions (mm)								Failing Load(kN)			Weight(kg)
		a	b		c	H		L
ZC-L-1240		18	16		24	70		400		120			4.55
ZC-L-1250		18	16		24	130		500		120			7.66
ZC-L-1260		18	16		24	160		600		120			10.3

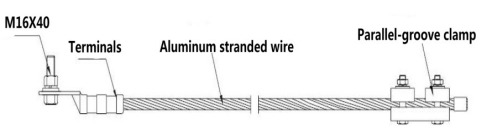

4.Ground Wire Clamp

Model	Set Diameter(mm)			Pole Dia.(mm)			Configuration							Weight(kg)
							Grounding Clamps Length (mm)					SetModel
ZC-JDX70/1500	11.40 (79.39mm²)			7.8-11.6			1500					D-116		0.95
ZC-JDX70/2000							2000							1.09
ZC-JDX70/2500							2500							1.23
ZC-JDX70/3000							3000							1.37
ZC-JDX95/1500	13.61 (109.72mm²)			11.7-15.0			1500					D-150		1.11
ZC-JDX95/2000							2000							1.3
ZC-JDX95/2500							2500							1.49
ZC-JDX95/3000							3000							1.68
ZC-JDX150/1500	16.00 (152.80mm²)			15.1-18.0			1500					D-180		1.56
ZC-JDX150/2000							2000							1.82
ZC-JDX150/2500							2500							2.09
ZC-JDX150/3000							3000							2.35
