ZCSSRT-02 - Stainless Steel Ratchet Tool for Cutting and Tightening Stainless Steel Strap Banding

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	CE, ROHS, VDE, UL
Model Number:	Stainless steel strip &buckle

Minimum Order Quantity:	500
Packaging Details:	Carton
Delivery Time:	Normally 20 working days
Payment Terms:	T/T, L/C
Supply Ability:	500000pcs / Month

Get Best Price Contact Now

Detail Information

Product Material:	Galvanized Steel	Product Size:	28015055mm
Bearing Tensile:	20 KN	Per Weight:	1850 G
Single Box Quantity:	10pcs/Carton	Packing Specifications:	Carton Size：472520cm Weight：219 KG

Product Description

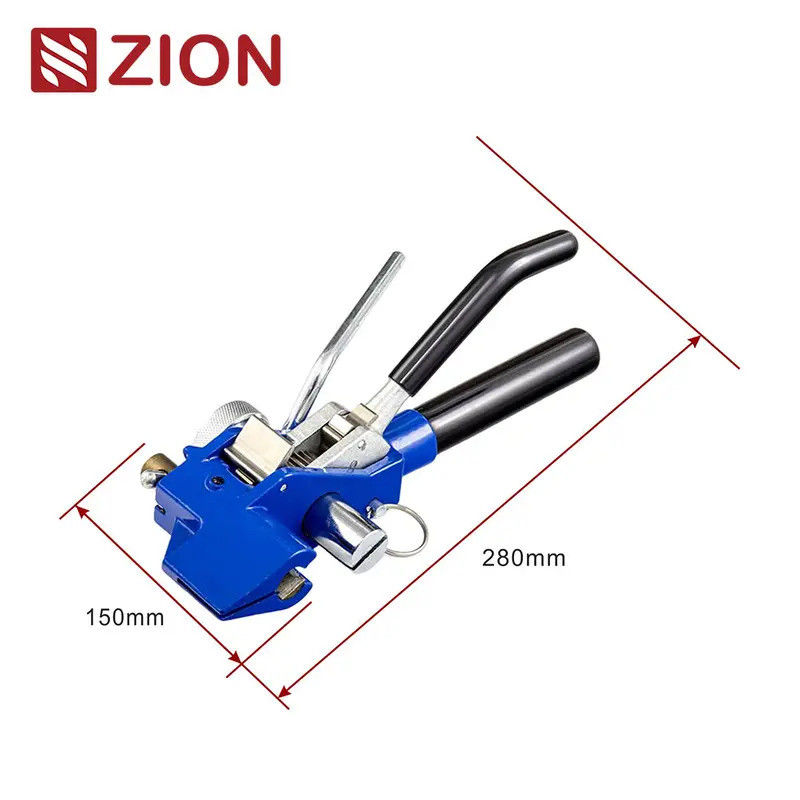

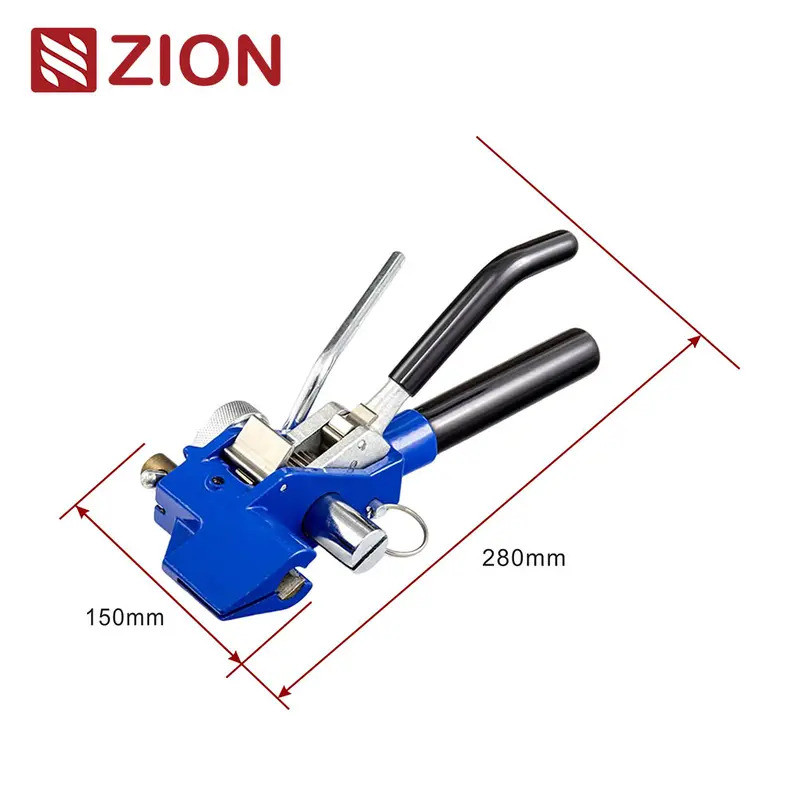

Stainless steel ratchet tool
Ratchet Type Stainless Steel Strap Banding Tool for cutting and tightening

7238162

Specification:

P/N

ZCSSRT-02

Product Material

Galvanized steel

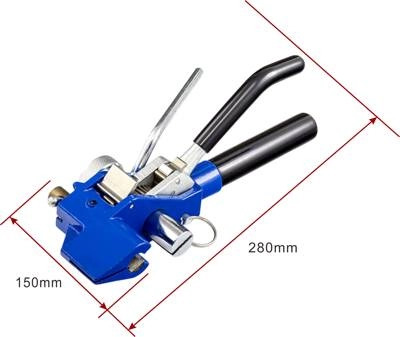

Product Size

280*150*55mm

Bearing Tensile

20 KN

Per Weight

1850 g

Packing Specifications

Carton Size:47*25*20cm Weight:219 KG

Single Box Quantity

10pcs/Carton

Application

Fiber optical systems

Brand

HELLOSIGNAL® OR OEM

MOQ

10pcs

Applicable steel strip:

Description:

● Stainless steel banding strapping tool Use high-quality steel as the main body,It used to safely secure stainless steel strapping using wing seals to sign posts, cables, duct work and packages. This heavy duty banding tool winds the banding around a slotted windlass shaft to develop tension. The tool is fast, reliable and features a cutter to cut the strap before it is pushed down between the wing seal tabs. The tool also features a hammer knob to hammer down and close the wing - clip ears / tabs. Use with strap widths between 1/4" and 3/4".
● Ratchet Type Stainless Steel Strap Banding Tool is designed and applied for the stainless steel banding strapping,wing seals and buckles etc,that we offer,working as both a tightener and a cutter with easy handling. Whether you are using banding with buckles,strapping with wing-seals,or a combination there of,the stainless steel clamping system is applied using purpose manufactured clamping tools.Most of these tools are unique to the stainless steel clamping system and allows for the installation of strong,durable stainless steel clamps that will remain intact for years to come.

Instructions:

Instructions Drawing:

1.Cut the required steel strip (the length is equal to the circumference+15-20 cm)
2.Put a stainless steel latch on a steel band 5 cm from the edge, ears up.Bend the end of the strip down and place it underthe latch.
3.Wrap the steel strip around the lock catch,and pass the free end of the steel strip through the lock
In the opposite direction of the bending end,manually tighten the steel strip, and unscrew its loose.
4.Put the tool on the free end of the steel strip,hold the steel strip with your hand,
and put the steel strip into the guide groove of the tool head.Install the tool close to the lock catch. Release the retaining arm with the retaining tool.
5.Turn the handle clockwise to tighten the steel strip to the required tension.
6.Turn the tool to bend the steel strip to one side of the latch,and then move the handle to one side.
7.Use a hammer to screw the end of the steel strip between the two ears of the lock catch,and then screw the two ears of the lock catch above the steel strip,so that the steel strip is fixed in e catch end from the buckle by 90°.to cut the steel strip.tight position.
