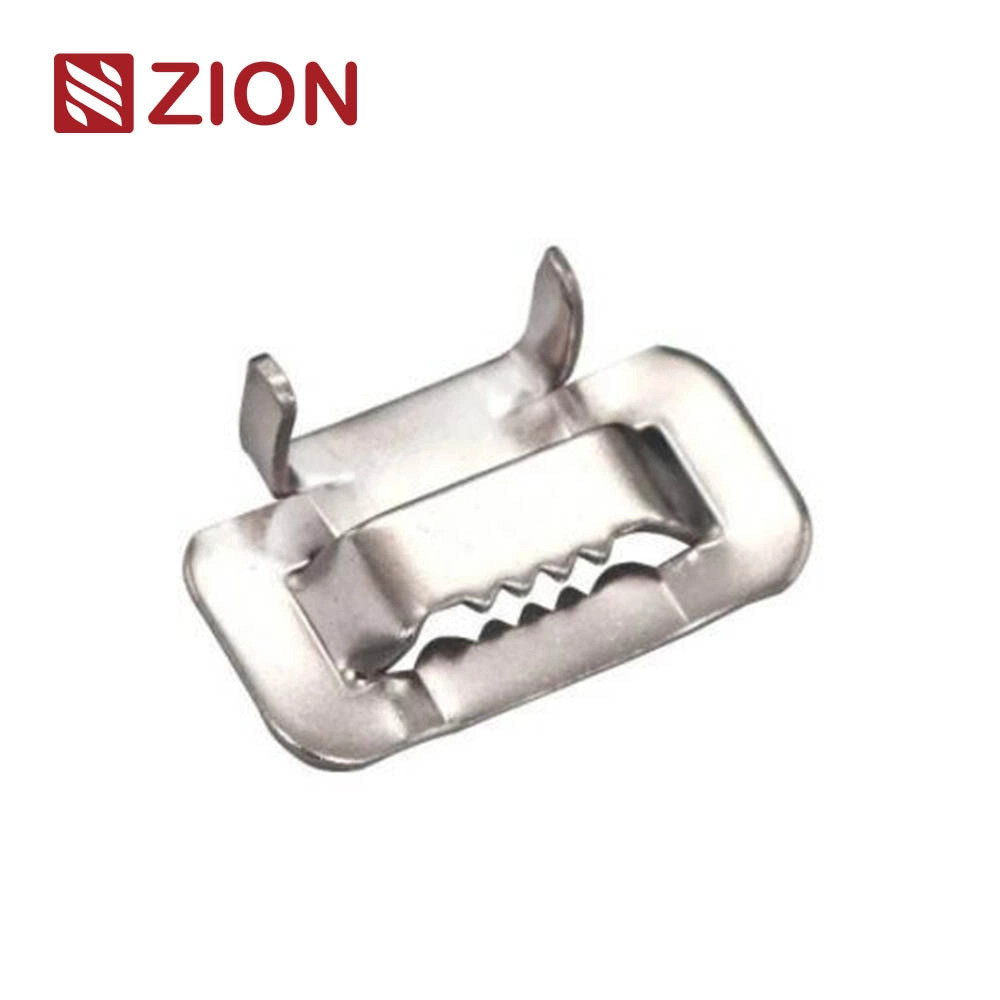

ZCSSB-01 - Ear Teeth Buckles for Secure Fastening

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	CE, ROHS, VDE, UL
Model Number:	Stainless steel strip &buckle

Minimum Order Quantity:	500
Packaging Details:	Carton
Delivery Time:	Normally 20 working days
Payment Terms:	T/T, L/C
Supply Ability:	500000pcs / Month

Get Best Price Contact Now

Detail Information

Product Material:	Stainless Steel 201, 304, 316	Working Temp:	-80℃~538℃
Colour:	Metallic

Product Description

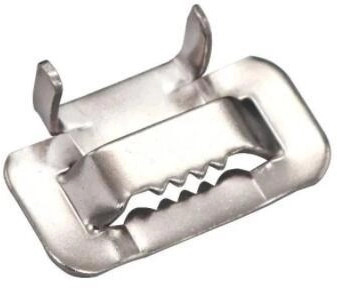

Ear Teeeh Type Buckles

Technical Parameter
◆Material: stainless steel 201, 304, 316 ◆Working Temp: -80℃~538℃ ◆Colour: Metallic
Technical Parameter
With the same width stainless steel strap used together,used in cables,petro-chemical,pipe insulation,pipelines, traffic signs,aviation high speed rail,Cable trays and other bundled fixed.

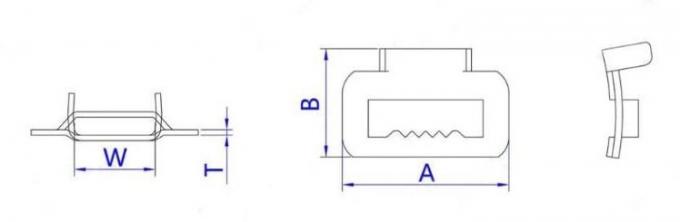

Product Specifications
Item NO.	ZC-07		ZC-07	ZC-07		ZC-07		ZC-07		ZC-07		ZC-07
Width/mm	7		10	13		16		19		25		32
Thickness/mm	1		1	1/1.2/1.5		1.2/1.5/1.8		1.2/1.5/1.8		2.3		2.3
Weight/g	2.2		2.8	6.2/7.5/9.3		8.5/10.6/12.7		10/12.6/15.1		32.8		51.5

Product Specifications

Detailed parameters
Item NO.	Width			Thickness			Packaging		Lbs/Kg
	mm	Inch		mm	Inch		PCS/bag		Kg		Lbs
ZC-16	16	5/8 (0.63)		1.2	0.047		100		0.85		1.87
				1.5	0.059		100		1.06		2.34
				1.8	0.071		100		1.27		2.8
ZC-19	19	3/4 (0.75)		1.2	0.047		100		1		2.2
				1.5	0.059		100		1.26		2.78
				1.8	0.071		100		1.51		3.33
