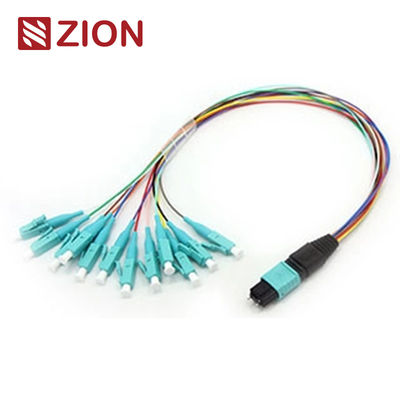

12 Fibers MPO-LC Fan-out Patch Cable with 0.9mm Diameter and 30-35cm Length for High-Density Data Centers

12 Fibers MPO-LC Fan-out Patch Cable with 0.9mm Diameter and 30-35cm Length for High-Density Data Centers
12 Fibers MPO-LC Fan-out Patch Cable with 0.9mm Diameter and 30-35cm Length for High-Density Data Centers
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Minimum Order Quantity: 50pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Durability: <0.3dBtypical Change, 200 Matings Interchangeability: ≤0.2dB
Tensile Strength: >70N Insert-pull Test: 500times, IL＜0.5dB
Operating Temperature (℃）: -40 To + 85°C
Highlight:

12 Fibers MPO Patch Cable

,

0.9mm Diameter Fiber Optic Patch Cable

,

30-35cm Length MPO-LC Fan-out Cable

Product Description

12 Fibers MPO to LC Patch Cable

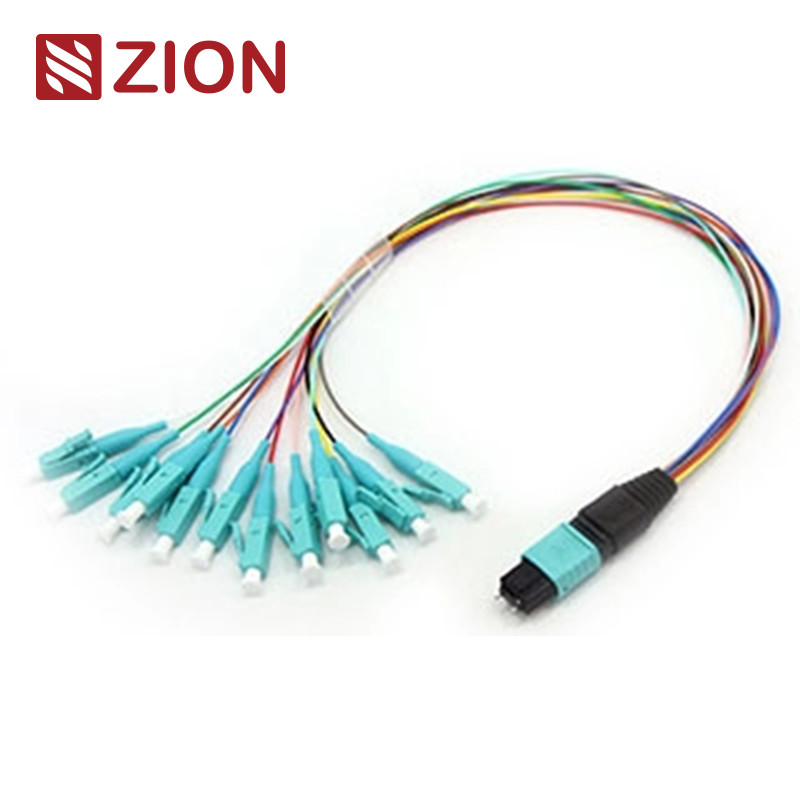

12F MPO (Male) - LC Fan-out 0.9mm 30-35cm Patch Cable
12 Fibers MPO-LC Fan-out Patch Cable with 0.9mm Diameter and 30-35cm Length for High-Density Data Centers 0
Product Identification
Zion Code: 7236032
Zion Description: 12F MPO (Male) - LC Fan-out 0.9mm 30-35cm Patch Cable
Product Overview
The 12F MPO (Male) - LC Fan-out 0.9mm 30-35cm Patch Cable is a high-performance fiber optic solution engineered for high-density applications in data centers and optical networks. The MPO (Multi-Fiber Push On) connector provides exceptional density, making it ideal for environments requiring efficient fiber management.
Key Features
  • Connector Type: MPO (Male) to LC/SC/FC/ST connectors
  • Cable Diameter: 0.9mm for optimal flexibility and high-density installations
  • Length: 30-35 cm for short patching requirements
  • Fiber Count: 12 fibers balancing high density with manageable cable size
  • MPO Connector: Male type compatible with 40G and 100G applications
Optical Performance Specifications
  • Insertion Loss (MPO): Standard ≤0.75dB, Super Low Loss ≤0.35dB
  • Return Loss (MPO): ≥60dB for Singlemode (APC), ≥25dB for Multimode
  • Insertion Loss (LC/SC/FC/ST): ≤0.3dB
  • Return Loss (LC/SC/FC/ST): ≥60dB for APC, ≥50dB for UPC
Industrial Standards Compliance
  • MPO Connectors: IEC 61754-7, Telcordia GR-1435-CORE, JIS C5982, TIA-604-5
  • Other Connectors: SC, LC, FC, and ST comply with TIA/EIA, FOCIS, and IEC 61754
Applications
  • Data Center High-Density Environments
  • Fiber Optic to the Building (FTTB)
  • Internal Fiber Equipment Connectivity
  • Direct connections between high-speed equipment ports
12 Fibers MPO-LC Fan-out Patch Cable with 0.9mm Diameter and 30-35cm Length for High-Density Data Centers 1
Related Product Variants
  • ZCM16117X: 8F MPO (Male) - LC Fan-out 0.9mm 30-35cm Patch Cable
  • ZCM16127X: 12F MPO (Male) - LC Fan-out 0.9mm 30-35cm Patch Cable
  • ZCM16157X: 24F MPO (Male) - LC Fan-out 0.9mm 30-35cm Patch Cable
  • ZCM26117X: 8F MTP (Male) - LC Fan-out 0.9mm 30-35cm Patch Cable
  • ZCM26127X: 12F MTP (Male) - LC Fan-out 0.9mm 30-35cm Patch Cable
  • ZCM26157X: 24F MTP (Male) - LC Fan-out 0.9mm 30-35cm Patch Cable
Materials and Construction
12 Fibers MPO-LC Fan-out Patch Cable with 0.9mm Diameter and 30-35cm Length for High-Density Data Centers 2 12 Fibers MPO-LC Fan-out Patch Cable with 0.9mm Diameter and 30-35cm Length for High-Density Data Centers 3 12 Fibers MPO-LC Fan-out Patch Cable with 0.9mm Diameter and 30-35cm Length for High-Density Data Centers 4
Packaging Information
Our fiber optic cables feature protective packaging with OMC labeling as standard. Available carton sizes include 34×22×15 cm, 44×34×24 cm, and 54×39×34 cm, selected based on order quantity. Custom packaging options available.
12 Fibers MPO-LC Fan-out Patch Cable with 0.9mm Diameter and 30-35cm Length for High-Density Data Centers 5
OEM/ODM Services
We offer comprehensive customization options including:
  • Cable color, printing, and jacket material
  • OEM labels, identification rings, and cable labels
  • Custom boxes and shipping marks
  • Different quality levels to meet specific requirements
12 Fibers MPO-LC Fan-out Patch Cable with 0.9mm Diameter and 30-35cm Length for High-Density Data Centers 6
Complete Product Line
Product Image Description Category
12 Fibers MPO-LC Fan-out Patch Cable with 0.9mm Diameter and 30-35cm Length for High-Density Data Centers 7 8F MPO(male) -LC Fan-out 0.9mm 30-35cm Patch cable Optical Networking, MPO-MTP (Male) -LC Fan-out 0.9mm, MTP/MPO, Optical Components
12 Fibers MPO-LC Fan-out Patch Cable with 0.9mm Diameter and 30-35cm Length for High-Density Data Centers 8 12F MPO(male) -LC Fan-out 0.9mm 30-35cm Patch cable Optical Networking, MPO-MTP (Male) -LC Fan-out 0.9mm, MTP/MPO, Optical Components
12 Fibers MPO-LC Fan-out Patch Cable with 0.9mm Diameter and 30-35cm Length for High-Density Data Centers 9 24F MPO(male) -LC Fan-out 0.9mm 30-35cm Patch cable Optical Networking, MPO-MTP (Male) -LC Fan-out 0.9mm, MTP/MPO, Optical Components
12 Fibers MPO-LC Fan-out Patch Cable with 0.9mm Diameter and 30-35cm Length for High-Density Data Centers 10 8F MTP(male) -LC Fan-out 0.9mm 30-35cm Patch cable Optical Networking, MPO-MTP (Male) -LC Fan-out 0.9mm, MTP/MPO, Optical Components
12 Fibers MPO-LC Fan-out Patch Cable with 0.9mm Diameter and 30-35cm Length for High-Density Data Centers 11 12F MTP(male) -LC Fan-out 0.9mm 30-35cm Patch cable Optical Networking, MPO-MTP (Male) -LC Fan-out 0.9mm, MTP/MPO, Optical Components
12 Fibers MPO-LC Fan-out Patch Cable with 0.9mm Diameter and 30-35cm Length for High-Density Data Centers 12 24F MTP(male) -LC Fan-out 0.9mm 30-35cm Patch cable Optical Networking, MPO-MTP (Male) -LC Fan-out 0.9mm, MTP/MPO, Optical Components
