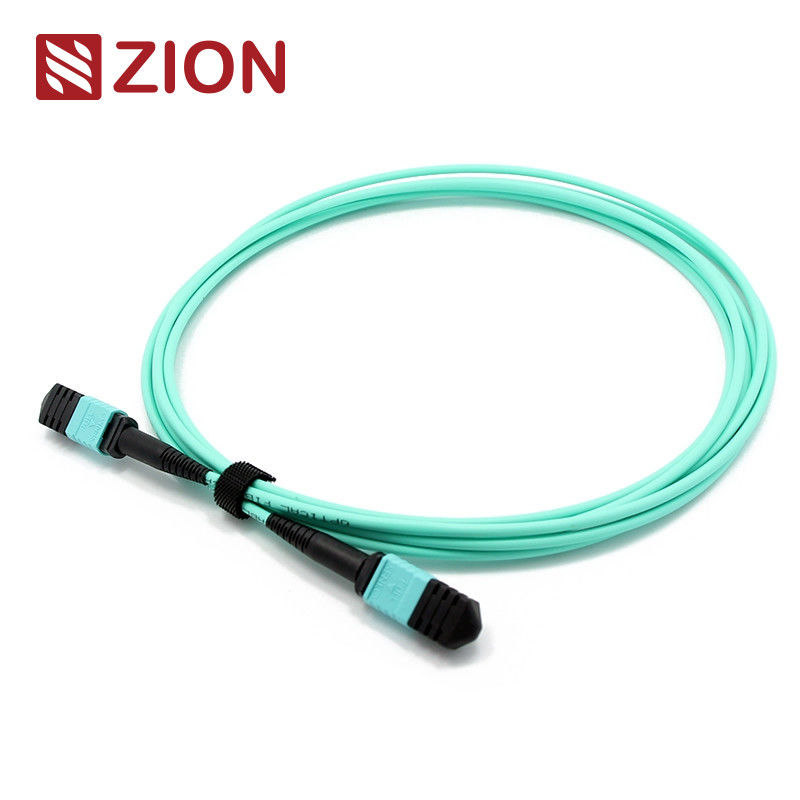

12 Fibers MTP Female To MTP Female OM3 3.0mm LSZH MTP Patch Cord
High-performance MTP Female to MTP Female OM3 3.0mm LSZH 12 Fibers MTP Patch Cord available in custom lengths for data center and high-density fiber applications.
Product Identification
Zion Code: ZCM2122HIA1X
Zion Description: MTP Female To MTP Female SM 3.0mm LSZH 12 Fibers MTP Patch Cord Custom Meters
Product Overview
The MTP connector is a multi-fiber push-on connector type designed for high-density fiber optic applications. The MTP high-density fiber pre-connection system is primarily used in data center environments, fiber-to-the-building applications, and internal connections within optical transceiver equipment supporting 40G, 100G, and QSFP+ technologies.
MTP connector types are distinguished according to IEC 61754-7 regulations based on core numbers, gender (Male/Female), and polarity (PC or APC).
This MTP-MTP 3.0mm LSZH Fiber Patch Cord connects MTP modules together as a permanent link, supporting speeds up to 10/40/100Gbps data center solutions. Available with 12, 24, 48, 60, 72, 96, or 144 fibers, these cables facilitate rapid deployment of high-density backbone cabling in data centers and other high-fiber environments.
The 12F MTP-MTP Fiber Patch Cord is specifically designed for 40G QSFP+ SR4, 40G QSFP+ CSR4, and 100G QSFP28 SR4 optics direct connections.
Industrial Standards
MPO Singlemode
Reference: EIA/TIA-604-5
Housing Details: SM APC: Green connectors+black boot (Standard Loss MTP)
SM APC: Yellow connectors+black boot (Super low loss MTP)
MPO Multimode
Reference: EIA/TIA-604-5
Housing Details: OM1&OM2 PC: Beige connectors+black boot
OM3&OM4 PC: Aqua connectors+black boot
OM3&OM4 PC: Heather Violet connectors+black boot
- Meets IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant
- Structured cabling per TIA-568-C
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3
Optical Specifications
Insertion Loss (MPO)(IEC 61300-3-34)
Singlemode (APC 8-degree polished): Standard loss: ≤0.75dB(max), ≤0.50dB(Typical); Super Low loss: ≤0.35dB(max), ≤0.20dB(Typical)
Multimode (PC Flat polish): Standard loss: ≤0.6dB(max), ≤0.50(Typical); Super Low loss: ≤0.35dB(max), ≤0.20dB(Typical)
Insertion Loss (LC/SC/FC/ST)(IEC 61300-3-6)
Single mode (APC 8-degree polished): ≤0.3dB
Multimode (PC Flat polish): ≤0.3dB
Return Loss (MPO)
Singlemode (APC 8-degree polished): ≥60dB
Multimode (PC Flat polish): ≥25dB
Additional Specifications
- Durability: <0.3dB typical change (200 matings)
- Interchangeability: ≤0.2dB
- Insert-pull Test: 500 times, IL＜0.5dB
- Tensile strength: >70N
- Plug-in times: >600
- Operating Temperature: -40°C to +85°C
Key Features
- Low insertion loss, high return loss
- MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations
- Economical solution for mass-termination of fiber
- Designed for low loss and standard loss SM and MM applications
- Ruggedized round cable, oval cable and bare ribbon options
- Color coded housings for easy fiber type identification
- Excellent repeatability and exchangeability
Applications
12F MPO-LC/SC/FC/ST Straight harness Cables designed for 40G LR4 PSM, 40GBASE-SR4, 40G QSFP+ PLR4 and high-density data centers. Optimized for 10/40/100G high-density data center applications.
All OMC's MPO Connectors are sourced from Senko/Nissin/Sumitomo. MPO Fiber Patch Cord assemblies are used in three primary areas:
- High-density data center environments
- Fiber-to-the-building installations
- Internal connector applications in fiber equipment
Length Tolerance Specifications
| Overall Length (L)(m) |
Length Tolerance (cm) |
| 0 < L < 1 |
+5/-0 |
| 1 < L < 10 |
+10/-0 |
| 10 < L < 40 |
+15/-0 |
| 40 < L |
+0.5% x L/-0 |
Related Products
ZCM1122HIA1: MPO Female To MPO Female SM 3.0mm LSZH 12 Fibers MPO Patch Cord
ZCM1152HIA1: MPO Female To MPO Female SM 3.0mm LSZH 24 Fibers MPO Patch Cord
ZCM1127HLA1: MPO Female To MPO Female OM3 3.0mm LSZH 12 Fibers MPO Patch Cord
ZCM1157HLA1: MPO Female To MPO Female OM3 3.0mm LSZH 24 Fibers MPO Patch Cord
ZCM1128HMA1: MPO Female To MPO Female OM4 3.0mm LSZH 12 Fibers MPO Patch Cord
ZCM1158HMA1: MPO Female To MPO Female OM4 3.0mm LSZH 24 Fibers MPO Patch Cord
Packaging & Customization
Standard packaging includes well-protected fiber optic cables with OMC labeling and marking. Available carton sizes: 34×22×15 cm, 44×34×24 cm, 54×39×34 cm. Custom packaging available upon request.
OEM/ODM services available including:
- Custom cable colors, printing, and jacket materials
- OEM labeling, identification rings, and cable labels
