| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | ISO, UL, CE, RoHS |
| Model Number: | JIS C CCTV Coaxial Cable |
| Minimum Order Quantity: | 30 KM |
| Packaging Details: | 305M, 1000FT, Wooden Reel, Carton |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 3000KM / Month |
| Conductor: | BC | Insulation: | SPE |
|---|---|---|---|
| Shield: | 8×24 BC Braid(L=45) | Jacket: | PVC |
| Color: | Black, White | Package: | 305M, 1000FT, Wooden Reel, Carton |
| High Light: | ETL Certification 75ohm CCTV Cable,CPR Certification CCTV Coaxial Cable |
||
|

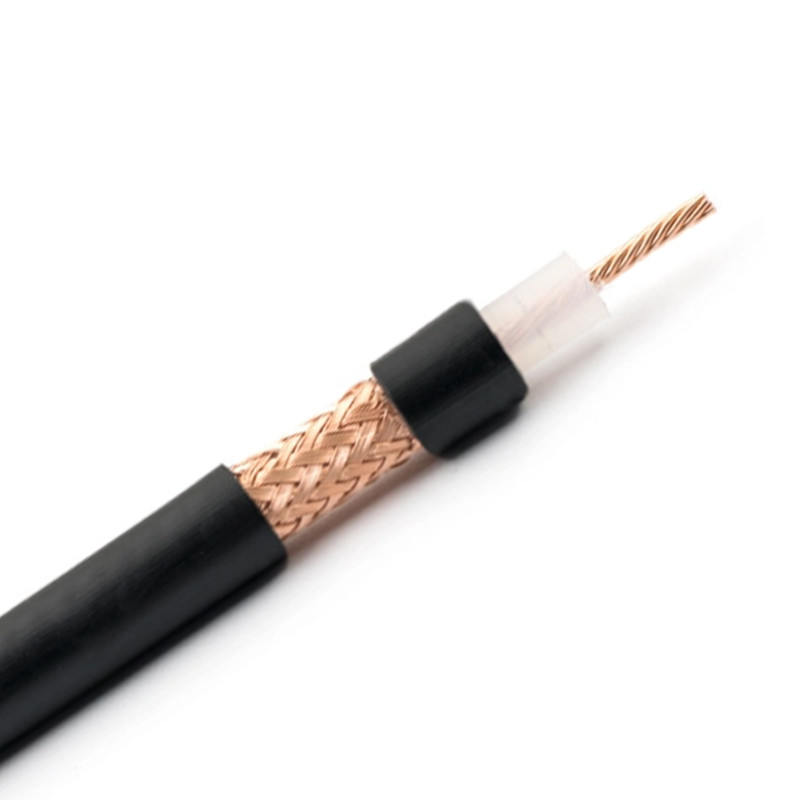

7C-2V 75 Ohm CCTV coaxial Cable NO.7100909 |
|||
| Construction Parameters: | |||
| Inner Conductor | 7×0.40mmBC | ||
| Dielectric | 7.3mmSPE | ||
| Shield | 0.18mm×8×24 BC Braid(L=45) | ||
| Jacket | 10.4±0.5mmPVC | ||
| Jacket Thickness | 1.1mm | ||
| Application | For Use in Longer CCTV Run Lengths | ||
| Electrical Characteristics: | |||
| Inner Conductor Resistance | The Max. at 20℃ shall be<20.7Ω/km | ||
| Capacitance | 67±3 pF/m | ||
| Impedance | 75 ± 3 Ω | ||
| Return loss | between 5 and 1000MHz: > 20dB | ||
| Velocity of Propagation | |||
| Sparker Test (VAC) | 1 | ||
| Mechanical and Envrionmental Properties | |||
| Cable bend radius | 10 times the cable diameter | ||
| Operating Temp Range | -20 ℃ to 65℃ | ||
| Cable diamensions | |||
| Cross Section | |||
 |
|||
| Attenuation(20℃): | |||
| Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) | |
| 10 | 1.70 | ||
| 30 | 2.90 | ||
| 72 | 4.60 | ||
| 88 | 5.00 | ||
| 90 | 5.10 | ||
| 135 | 6.20 | ||
| 180 | 7.20 | ||
| 220 | 8.00 | ||
| 270 | 8.80 | ||
| 440 | 11.30 | ||
| 750 | 14.60 | ||
| 770 | 14.80 | ||
| 1300 | 19.20 | ||
| 2400 | 26.10 | ||
| Order Informations: | |||
| Marking |
HELLOSIGNAL 7C-2V CCTV COAXIAL CABLE 7100909 ×××M/FT |
||
| Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | ||
| Delivery time | Normally 25 days after received the deposit. | ||
| Brand | HELLOSIGNAL® OR OEM | ||
