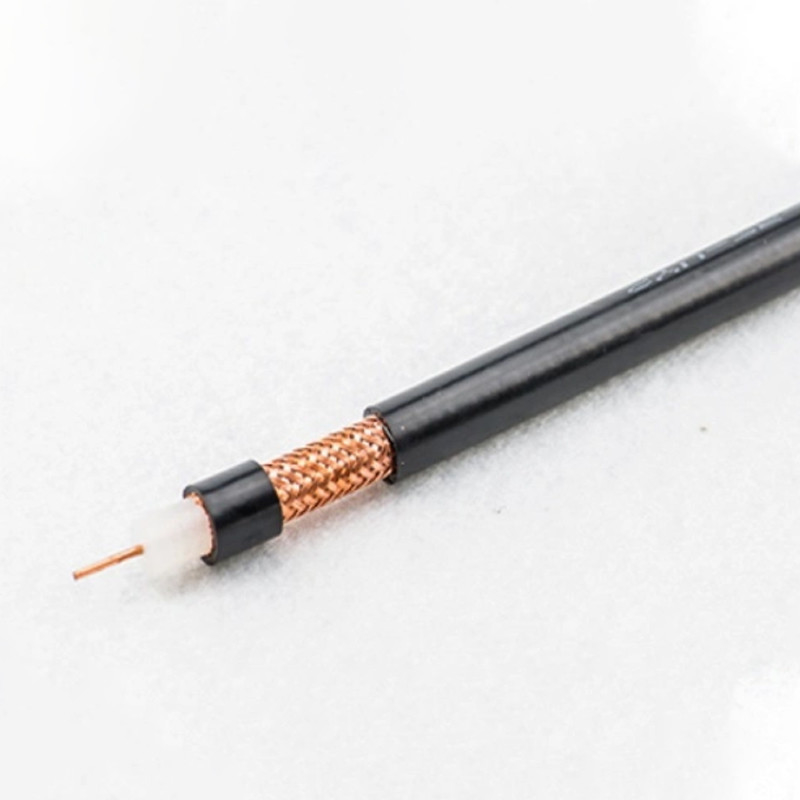

3C-2VS Coaxial Cable Inner Conductor BC JIS C Series Coaxial Wholesale 3C-2VS Video Cable Best Price CCTV Cable

Basic Information

Place of Origin:	China
Brand Name:	Zion communication OR OEM
Certification:	ISO, UL, CE, RoHS
Model Number:	JIS C CCTV Coaxial Cable

Minimum Order Quantity:	30 KM
Packaging Details:	305M, 1000FT, Wooden Reel, Carton
Delivery Time:	25 working days
Payment Terms:	T/T, L/C
Supply Ability:	3000KM / Month

Get Best Price Contact Now

Detail Information

Conductor:	BC	Insulation:	SPE
Shield:	6×25 BC Braid(L=26)	Jacket:	PVC
Color:	Black, White	Package:	305M, 1000FT, Wooden Reel, Carton

Product Description

3C-2VS 75 Ohm CCTV coaxial Cable NO.7100905



Construction Parameters:
Inner Conductor	7×0.18mmBC
Dielectric	3.1mm SPE
Shield	0.14mm×6×25 BC Braid(L=26)
Jacket	5.4±0.5mmPVC
Jacket Thickness	0.08mm
Application	For Use in Longer CCTV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance	The Max. at 20℃ shall be<100Ω/km

Capacitance	67±3 pF/m
Impedance	75 ± 3 Ω
Return loss	between 5 and 1000MHz: > 20dB
Velocity of Propagation
Sparker Test (VAC)	1

Mechanical and Envrionmental Properties
Cable bend radius	10 times the cable diameter
Operating Temp Range	-20 ℃ to 65℃
Cable diamensions

Cross Section
















Attenuation(20℃):
Frequency (MHZ)	Max Attenuation(dB/100ft)	Max Attenuation (dB/100m)
10		4.20
30		7.30
72		11.30
88		12.50
90		12.60
135		15.40
180		17.80
220		19.70
270		21.80
440		27.90
750		36.40
770		36.90

Order Informations:
Marking	HELLOSIGNAL 3C-2VS CCTV COAXIAL CABLE 7100905 ×××M/FT
Package	Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …
Delivery time	Normally 25 days after received the deposit.
Brand	HELLOSIGNAL^® OR OEM
