| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | ISO, UL, CE, RoHS |
| Model Number: | JIS C CCTV Coaxial Cable |
| Minimum Order Quantity: | 30 KM |
| Packaging Details: | 305M, 1000FT, Wooden Reel, Carton |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 3000KM / Month |
| Conductor: | CCS | Insulation: | SPE |
|---|---|---|---|
| Shield: | 5×16 BC Braid(L=16) | Jacket: | PVC |
| Color: | Black, White | Package: | 305M, 1000FT, Wooden Reel, Carton |
|

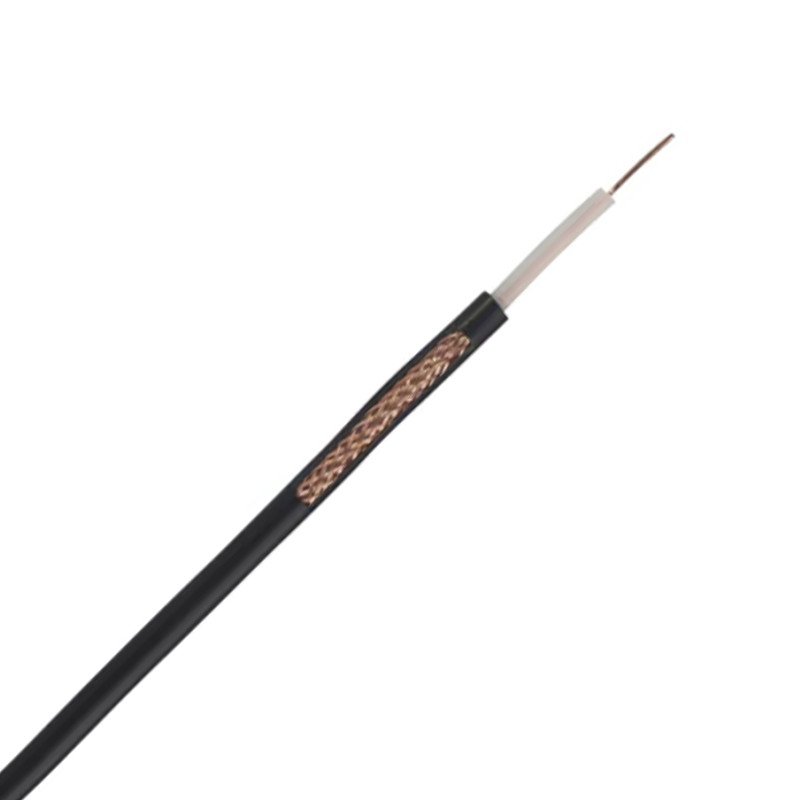

1.5C-2V 75 Ohm CCTV coaxial Cable NO.7100901 |
|||
| Construction Parameters: | |||
| Inner Conductor | 0.26mm CCS | ||
| Dielectric | 1.6mm SPE | ||
| Shield | 0.10mm×5×16 BC Braid(L=16) | ||
| Jacket | 2.9±0.4mmPVC | ||
| Jacket Thickness | 0.04mm | ||
| Application | For Use in Longer CCTV Run Lengths | ||
| Electrical Characteristics: | |||
| Inner Conductor Resistance | The Max. at 20℃ shall be<968Ω/km | ||
| Capacitance | 69±4 pF/m | ||
| Impedance | 75 ± 3 Ω | ||
| Return loss | between 5 and 1000MHz: > 20dB | ||
| Velocity of Propagation | |||
| Sparker Test (VAC) | 1 | ||
| Mechanical and Envrionmental Properties | |||
| Cable bend radius | 10 times the cable diameter | ||
| Operating Temp Range | -20 ℃ to 65℃ | ||
| Cable diamensions | 2.9±0.4mmPVC | ||
| Cross Section | |||
 |
|||
| Attenuation(20℃): | |||
| Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) | |
| 10 | 9.60 | ||
| 30 | 16.60 | ||
| 72 | 25.80 | ||
| 88 | 28.50 | ||
| 90 | 28.80 | ||
| 135 | 35.30 | ||
| 180 | 40.70 | ||
| 220 | 45.00 | ||
| 270 | 49.00 | ||
| 440 | 63.70 | ||
| 750 | |||
| 770 | |||
| Order Informations: | |||
| Marking |
HELLOSIGNAL 1.5C-2V CCTV COAXIAL CABLE 7100901 ×××M/FT |
||
| Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | ||
| Delivery time | Normally 25 days after received the deposit. | ||
| Brand | HELLOSIGNAL® OR OEM | ||
