| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | ISO, UL, CE, RoHS |
| Model Number: | RG11 Coaxial Cable |
| Minimum Order Quantity: | 30 KM |
| Packaging Details: | 305M, 1000FT, Wooden Reel, Carton |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 3000KM / Month |
| Conductor: | 14AWG BC | Insulation: | Foamed Polyethylene |
|---|---|---|---|
| Shield: | Bare Copper(95%) | Jacket: | PE |
| Color: | Black, White | Package: | 305M, 1000FT, Wooden Reel, Carton |
| High Light: | 14AWG BC RG11U Coaxial Cable,1000FT CCTV Camera Coaxial Cable |
||
|

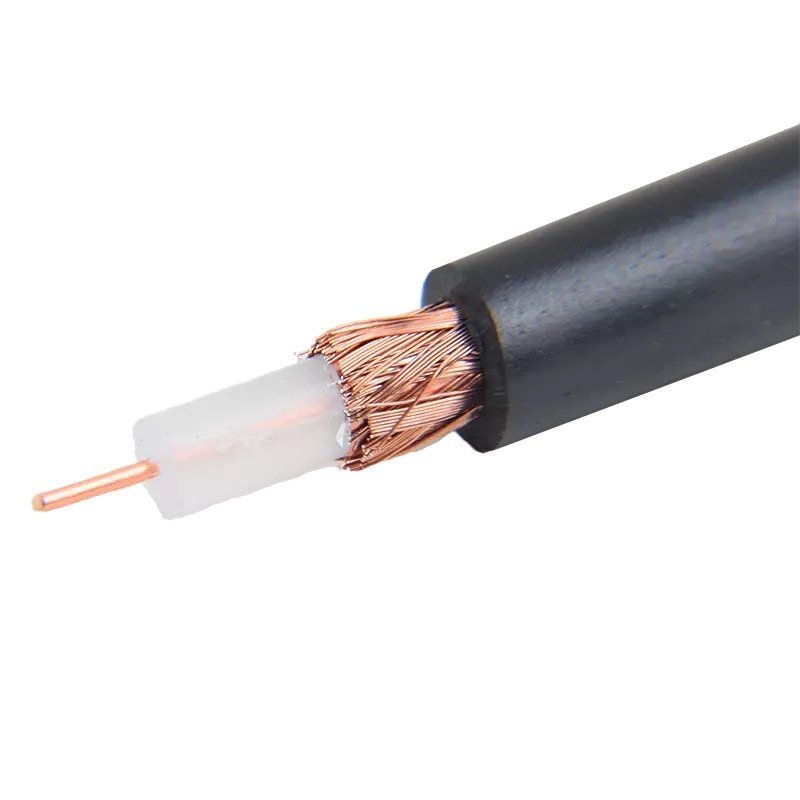

RG11U BC FEP 95% BC Copolymer 75 Ohm CCTV coaxial Cable NO.7100263 |
|||
| Construction Parameters: | |||
| Inner Conductor | 0.064"/1.63mm/14AWG BC | ||
| Dielectric | 0.144"/7.11mm Foamed Polyethylene | ||
| Shield | Bare Copper(95%) | ||
| Jacket | 0.4"±0.006"/10.3mm±0.15mm Copolymer | ||
| Application | For Use in Longer CCTV Run Lengths | ||
| Electrical Characteristics: | |||
| Inner Conductor Resistance | 8.25 Ohms/KM at 20℃ | ||
| Capacitance | 16.2±0.35 pF/ft | ||
| Impedance | 75 ± 3 Ω | ||
| Return loss | between 5 and 1000MHz: > 23dB | ||
| Velocity of Propagation | 0.82 | ||
| Sparker Test (VAC) | 3 | ||
| Mechanical and Envrionmental Properties | |||
| Cable bend radius | 10 times the cable diameter | ||
| Operating Temp Range | -20 ℃ to 60℃ | ||
| Cable diamensions | 0.4"±0.006"/10.3mm±0.15mm PVC | ||
| Cross Section | |||
 |
|||
| Attenuation(20℃): | |||
| Frequency (MHZ) | Max Attenuation(dB/100ft) | ||
| 5 | |||
| 10 | 0.35 | ||
| 50 | 0.87 | ||
| 100 | 1.38 | ||
| 200 | 1.98 | ||
| 400 | 2.95 | ||
| 700 | 4.00 | ||
| 900 | 4.54 | ||
| 1000 | 4.70 | ||
| Order Informations: | |||
| Marking |
HELLOSIGNAL RG11U BC FEP 95% BC Copolymer CCTV COAXIAL CABLE 7100263 ×××M/FT |
||
| Package | Inquired Length on wooden Spool,pallet … | ||
| Delivery time | Normally 25 days after received the deposit. | ||
| Brand | HELLOSIGNAL® OR OEM | ||
